Draper Profile+ 275" HDTV 16:9 Grey XH600V – Large Venue Fixed Frame Projection Screen

Product Overview

The Draper Profile+ 275" fixed frame projection screen (part number 254270) delivers a 135" x 240" HDTV 16:9 image for auditoriums, all-hands rooms, and houses of worship where a flat panel of this scale is not practical. Its Grey XH600V viewing surface improves perceived contrast and black levels when paired with moderate to high-output commercial projectors, making it a strong choice for large venue projection screen installations with some ambient light. With a frame depth under 2 inches and a choice of borderless or slim bezel finish, this commercial-grade screen presents a clean, architectural look in any commercial meeting space.

Product Description

Profile+ is Draper's lightweight large-format fixed frame screen platform, engineered to support big image sizes without the bulk of traditional fixed frame systems. The 254270 pairs that frame with Draper's Grey XH600V surface, a grey front-projection surface that deepens black levels and improves on-screen contrast compared to a standard matt white surface in rooms where lighting cannot be fully controlled. That makes this 275 inch projection screen well suited to corporate auditorium AV design, worship spaces with house lighting, and training facilities running daytime sessions. The frame installs at less than 2" (51 mm) deep, so the finished installation sits sleeker than a comparable LED wall or flat panel array. Integrators can specify a borderless edge for an image-only aesthetic or a 5/8" (16 mm) bezel trim for a defined perimeter. Draper's sliding hook-and-loop attachment system tensions the viewing surface evenly across the frame and simplifies on-site assembly. The screen ships unassembled, which keeps freight manageable and allows crews to move components through elevators, stairwells, and tight corridors before building the frame in the room. Wall brackets are included as standard, and the frame's mounting flanges align with the brackets for a straightforward two-person installation; flown rigging brackets are available from Draper on request for suspended applications. For comparable large venue and conference room screen options, browse the full Draper collection at creationnetworks.net/collections/draper.

Key Features

• 275" Diagonal HDTV Image — Provides a 135" x 240" 16:9 viewing area sized for auditoriums and large commercial meeting spaces.
• Grey XH600V Viewing Surface — Enhances contrast and black-level performance with brighter projectors in rooms with ambient light.
• Slim Sub-2" Frame Depth — Installs at less than 2" (51 mm) deep for a low-profile, architectural appearance on the wall.

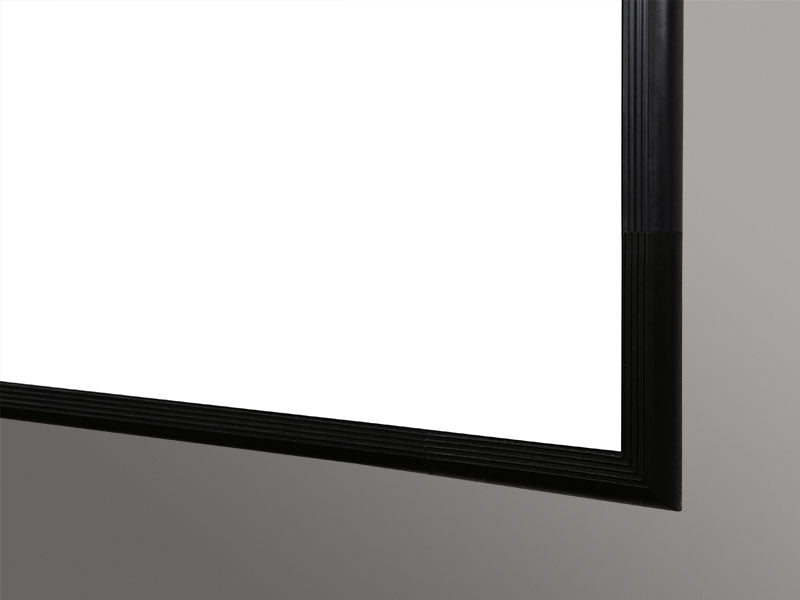

• Borderless or Bezel Finish — Order as a borderless screen or with a 5/8" (16 mm) bezel trim to match the room design.
• Wall-Mount or Flown Installation — Ships with wall brackets standard; flown brackets are available on request for suspended rigging.
• Hook-and-Loop Surface Attachment — Sliding hook-and-loop system tensions the surface flat and speeds field assembly.
• Ships Unassembled — Components travel easily through stairs, elevators, and corners on the way to the installation site.
• 5-Year Manufacturer Warranty — Backed by Draper's five-year warranty for installations in the United States and Canada.

Typical Applications

• Auditorium
• All-hands room
• House of worship
• Training room
• Multi-purpose room
• Commercial meeting space
• Government space

Technical Specifications

Frequently Asked Questions

What projector should I pair with the Grey XH600V surface?
The Grey XH600V surface is intended for moderate to high-output projectors. Its grey tint improves contrast in rooms with ambient light, so size projector brightness to the 240" image width and your room's lighting conditions during system design.

Is this screen difficult to assemble on site?
No. The screen ships unassembled, the frame sections bolt together at the installation site, and the viewing surface attaches with Draper's sliding hook-and-loop system. A two-person crew with standard tools can complete a typical wall installation.

Can the 254270 be suspended from a ceiling or rigging structure?
Yes. The Profile+ frame supports both wall-mount and flown installation. Wall brackets ship standard; flown brackets must be requested for suspended applications. Mounting fasteners are not included.

Should I choose the borderless or bezel version?
The borderless finish gives an edge-to-edge image that suits modern corporate and worship spaces, while the 5/8" bezel trim provides a defined frame that helps mask minor projector overscan. Both options use the same frame and surface.

How does this screen integrate with the rest of my AV system?
As a fixed frame screen there are no motors or controls to program, so it works with any front-projection system and adds no points of failure to a control processor, which simplifies AV system integration in commercial deployments.

What warranty and support apply?
Draper covers the Profile+ with a 5-year warranty valid in the United States and Canada, and Creation Networks supports commercial AV buyers with pre-sale sizing guidance and post-sale assistance.
