Draper Profile+ 220" HDTV 16:9 Fixed Frame Screen – Grey XH600V High-Contrast Projection Surface

Product Overview

The Draper Profile+ 220-inch HDTV 16:9 fixed frame projection screen (part number 254268) delivers a 108" x 192" (9 by 16 foot) image on Draper's Grey XH600V high-contrast viewing surface. The grey surface deepens perceived black levels and preserves image contrast when paired with moderate to high output projectors, making this a strong large venue projection screen for conference centers, training facilities, and auditoriums where lighting is not fully controlled. Like all Profile+ screens, it installs at under 2 inches deep with a borderless or slim-bezel finish for a clean commercial AV installation.

Product Description

Grey viewing surfaces solve a common problem in commercial projection: washed-out images in rooms with ambient light. The Grey XH600V surface on the 254268 absorbs a portion of stray room light, improving contrast and black reproduction compared to a standard white surface in the same conditions, which is why AV system designers frequently specify grey screens for corporate and government environments lit for note-taking and conversation. At 220 inches diagonal in HDTV 16:9, the 108" x 192" image area is sized for auditorium projection, large training rooms, and all-hands spaces. The Profile+ platform keeps the installation simple for integrators: the lightweight fixed frame ships unassembled for transport through elevators and stairways, the viewing surface attaches with Draper's sliding hook-and-loop system, and the finished screen sits less than 2 inches (51 mm) off the wall. Order it borderless for an edge-to-edge architectural look or with a slim 5/8" (16 mm) bezel trim. Wall brackets are included; flown brackets are available on request for suspended installation, and the mullion-less frame supports zero-gap multi-screen arrays. As a passive fixed frame screen there is no motor or control wiring, which keeps the AV integration scope on the projector and signal chain. Compare additional sizes and surfaces in our Draper projection screen collection.

Key Features

• 220" HDTV 16:9 Image — 108" x 192" viewable area sized for auditoriums, training facilities, and large meeting spaces.
• Grey XH600V High-Contrast Surface — Grey material improves perceived contrast and black levels with moderate to high output projectors.
• Better Performance in Ambient Light — A practical choice for rooms lit for note-taking, collaboration, and video conferencing.

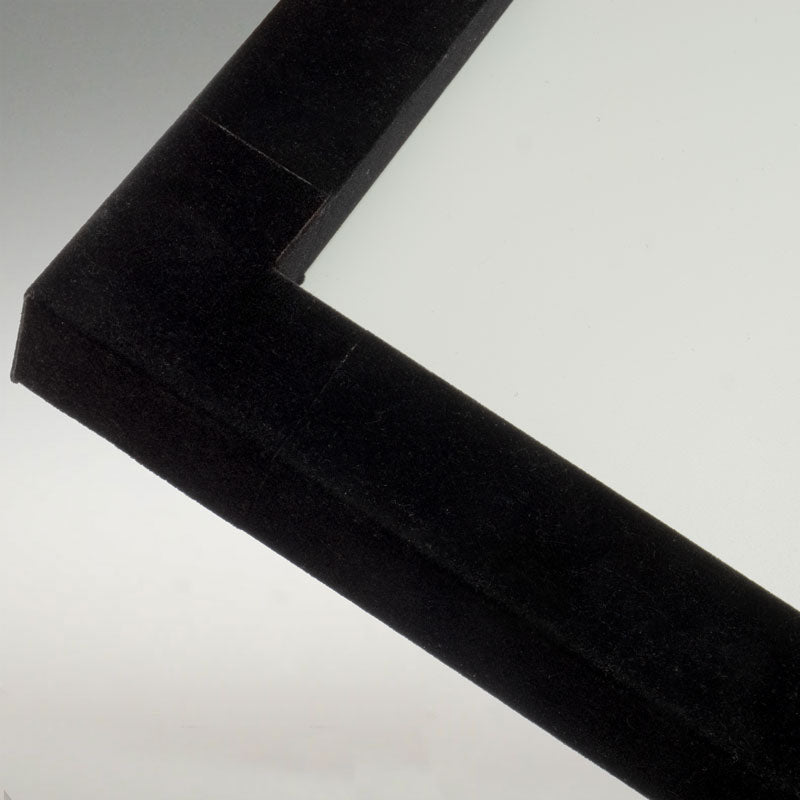

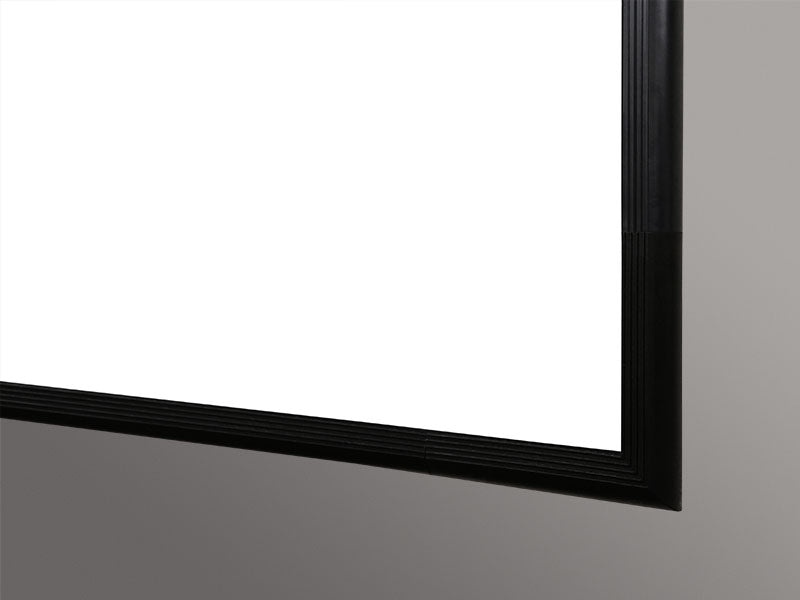

• Borderless or Slim Bezel — Specify a borderless edge or a 5/8" (16 mm) bezel trim to match the room design.
• Under 2" Installed Depth — Mounts flatter than most flat panel displays for an architectural finish.
• Ships Unassembled — Simplifies transport through elevators, stairways, and corridors on commercial job sites.
• Wall-Mount or Flown — Wall brackets included; flown brackets available on request.
• 5-Year Warranty — Backed by Draper's five-year warranty, valid in the United States and Canada.

Typical Applications

• Auditorium
• Training room
• All-hands room
• Conference room
• Government space
• House of worship
• Multi-purpose room

Technical Specifications

Frequently Asked Questions

Why specify a grey screen instead of white?
Grey surfaces such as the XH600V absorb a portion of ambient room light, preserving contrast and black levels in spaces that are not fully darkened. Pair it with a moderate to high output projector to offset the lower gain.

What projector brightness should I plan for a 220" grey screen?
It depends on room lighting and content, but large grey-surface installations generally call for higher-lumen projectors. Creation Networks can run the brightness calculation for your space.

Can the 254268 be flown from a ceiling or truss?
Yes. Wall brackets ship standard, and flown brackets are available on request. Mounting fasteners are not included.

What does on-site assembly involve?
The screen ships unassembled for easier building access. The frame assembles on site and the surface attaches with Draper's sliding hook-and-loop system.

Does this screen require power or control system programming?
No. The Profile+ is a passive fixed frame screen with no motor or wiring, keeping integration work on the projector and signal path only.

What warranty and support are included?
Draper provides a 5-year warranty valid in the United States and Canada, and Creation Networks offers design assistance and post-sale support for commercial deployments.
