Draper Profile+ 275" HDTV 16:9 Matt White XT1000V – Large Venue Fixed Frame Projection Screen

Product Overview

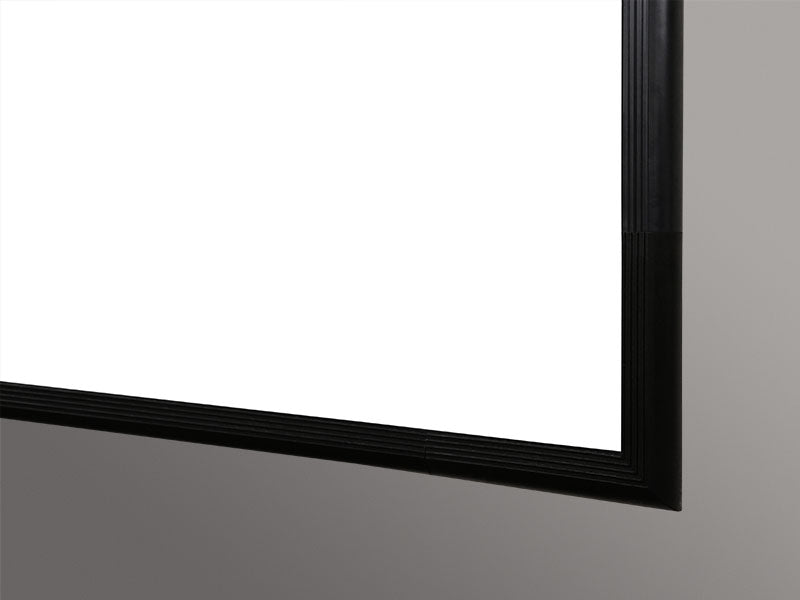

The Draper Profile+ 275" fixed frame projection screen (part number 254266) presents a 135" x 240" HDTV 16:9 image for auditoriums, houses of worship, and all-hands spaces standardized on broadcast-format video. Its Matt White XT1000V surface provides neutral color reproduction and a wide viewing cone, making this large venue projection screen a dependable specification for light-controlled rooms with broad, distributed seating. The lightweight Profile+ frame installs at under 2 inches deep with a borderless or slim bezel finish, so a 20-foot-wide image still reads as a clean architectural element.

Product Description

The 254266 pairs Draper's Profile+ large-format frame with the company's standard Matt White XT1000V viewing surface in the 16:9 HDTV format — the native aspect ratio of video production, IMAG camera feeds, and most digital signage and presentation content. A 1.0 gain matt white surface diffuses light evenly in every direction, so color stays accurate and brightness stays consistent for viewers seated far off-axis, which is exactly what wide worship auditoriums and corporate all-hands rooms demand. At a 275 inch diagonal, the screen provides back-row legibility in venues where a direct-view LED wall of equal size would cost several times more, making it a budget-effective centerpiece for commercial AV integration projects. The Profile+ frame is engineered to support large surfaces while remaining lightweight, finishing at less than 2" (51 mm) deep on the wall. Choose a borderless edge for an image-only aesthetic or a 5/8" (16 mm) bezel trim for a defined perimeter. Draper's sliding hook-and-loop attachment system tensions the surface evenly and accelerates field assembly, and the screen ships unassembled so crews can move components through elevators, stairs, and corners before building the frame in the room. Wall brackets are included; flown brackets for suspended installation are available from Draper on request. To weigh this model against grey-surface and acoustically transparent alternatives, browse the Draper collection at creationnetworks.net/collections/draper.

Key Features

• 275" Diagonal HDTV Image — Provides a 135" x 240" 16:9 viewing area matched to video, IMAG, and broadcast-format content.
• Matt White XT1000V Surface — Neutral 1.0 gain matt white surface delivers accurate color and a wide viewing cone for distributed seating.
• Lightweight Large-Format Frame — Profile+ engineering supports a 20-foot-wide image without conventional fixed-frame bulk.
• Sub-2" Installed Depth — Finishes at less than 2" (51 mm) deep for a flat, low-profile wall presence.
• Borderless or Bezel Finish — Available borderless or with a 5/8" (16 mm) bezel trim to suit the room design.
• Wall-Mount or Flown Installation — Wall brackets ship standard; flown brackets are available on request for suspended applications.
• Hook-and-Loop Surface Tensioning — Sliding attachment system creates a flat, evenly tensioned projection plane and shortens assembly time.
• Ships Unassembled — Components travel easily through stairs, elevators, and corridors to the installation site.
• 5-Year Manufacturer Warranty — Covered by Draper's five-year warranty in the United States and Canada.

Typical Applications

• Auditorium
• House of worship
• All-hands room
• Training room
• Multi-purpose room
• Commercial meeting space
• Government space

Technical Specifications

Frequently Asked Questions

How does the 254266 differ from the 254270?
Both are 275" 16:9 Profile+ screens. The 254266 uses the Matt White XT1000V surface for light-controlled rooms, while the 254270 uses the Grey XH600V contrast surface for venues with ambient light.

What projector brightness should I plan for a 240" wide image?
Brightness depends on ambient light, content type, and target foot-lamberts. For an image this size most designs call for a high-output installation projector; your AV system designer should run the calculation against the room's lighting conditions.

Is the screen hard to get into a finished building?
No. It ships unassembled in cartons that move through stairs, elevators, and tight corridors, and the frame is assembled in the room before the surface is attached with the hook-and-loop system.

Can the screen be suspended rather than wall-mounted?
Yes. The Profile+ supports flown installation; wall brackets are included and flown brackets must be requested from Draper. Mounting fasteners are not included.

Does this screen require control system integration?
No. A fixed frame screen has no motors or electronics, so there is no programming, wiring, or maintenance scope added to the AV system.

What warranty and support come with the screen?
Draper warrants the Profile+ for five years in the United States and Canada, and Creation Networks supports commercial AV buyers with sizing guidance before purchase and assistance after delivery.
