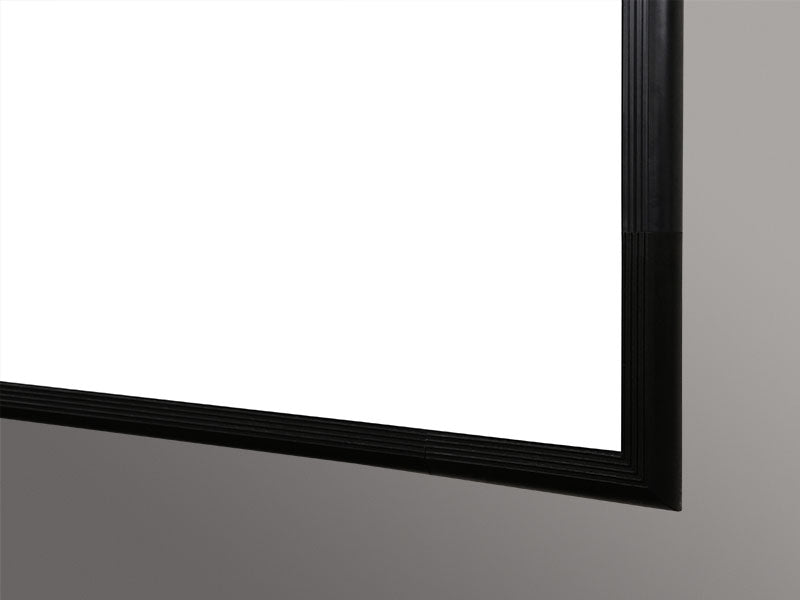

Draper Profile+ 248" HDTV 16:9 Fixed Frame Projection Screen – Matt White XT1000VB Large-Venue Display

Product Overview

The Draper Profile+ 248-inch fixed frame projection screen (part number 254265) is built for auditoriums, all-hands spaces, and other large venues that need a roughly 10-foot-tall, 18-foot-wide HDTV 16:9 image. Its Matt White XT1000VB viewing surface works with virtually any modern projector, making it a dependable specification for large venue projection screen installations. With a borderless or slim-bezel finish and an installed depth under 2 inches, this commercial projection screen integrates cleanly into architectural spaces while delivering a tensioned, flat viewing surface.

Product Description

Draper engineered the Profile+ series around a lightweight fixed frame that supports far larger sizes than conventional fixed screens without adding bulk. The 254265 produces a 121.5" x 216" viewable image in HDTV 16:9 format, sized for auditorium projection, corporate all-hands presentations, and worship spaces where a flat panel display of equivalent size would be impractical. The Matt White XT1000VB surface is Draper's standard diffusing white surface, providing accurate color reproduction and a wide viewing cone so every seat in the room gets a consistent image. Installation is straightforward for AV integrators: the screen ships unassembled to simplify transport through elevators, stairways, and tight corridors, and a sliding hook-and-loop attachment system speeds surface assembly on site. Choose a clean borderless look or a slim 5/8" (16 mm) bezel trim; either way the installed depth stays under 2 inches (51 mm). The frame includes mounting flanges with wall brackets supplied, and the screen can also be flown with optional flown brackets for suspended commercial AV installations. The mullion-less frame design also allows zero-gap alignment when multiple Profile+ screens are deployed in an array. Because it is a passive fixed frame screen, there is no motor, power, or control wiring to coordinate, which shortens installation time on commercial projects. Browse comparable sizes and surfaces in our Draper projection screen collection.

Key Features

• 248" HDTV 16:9 Image — Delivers a 121.5" x 216" viewable image sized for auditoriums and large commercial meeting spaces.
• Matt White XT1000VB Surface — Draper's standard diffusing white surface provides accurate color and a wide viewing cone for broad seating layouts.

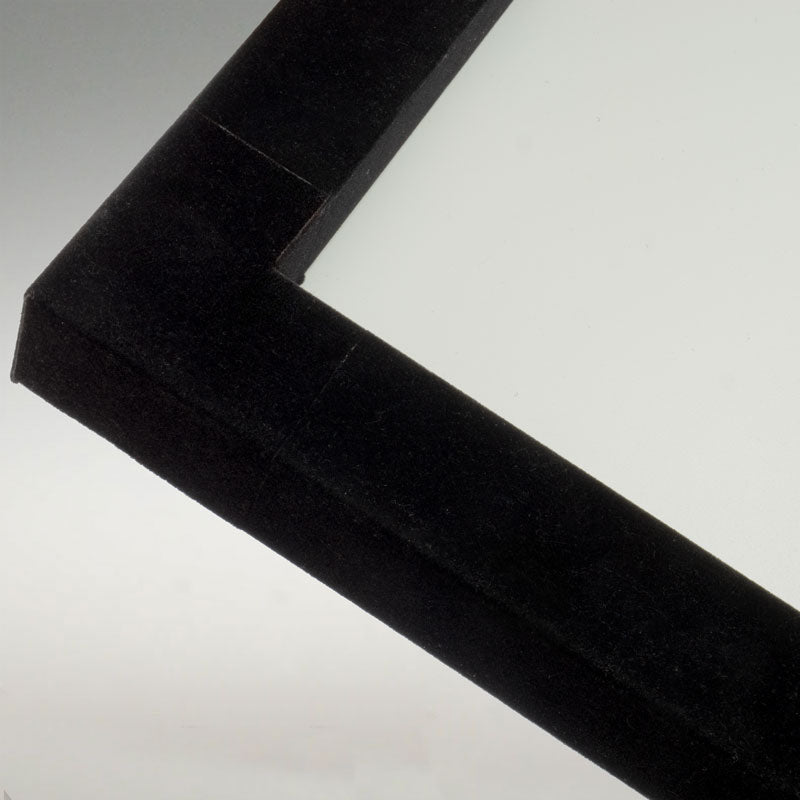

• Borderless or Slim Bezel — Order with a clean borderless edge or a 5/8" (16 mm) bezel trim to match the room design.
• Under 2" Installed Depth — The screen sits flatter on the wall than most flat panel displays for a clean architectural appearance.
• Integrator-Friendly Assembly — Ships unassembled with a sliding hook-and-loop attachment system that simplifies on-site surface installation.
• Wall-Mount or Flown Installation — Wall brackets are included; flown brackets are available on request for suspended installs.
• Array-Ready Frame — Mullion-less design supports zero-gap alignment across multi-screen arrays.
• 5-Year Warranty — Backed by Draper's five-year warranty, valid in the United States and Canada.

Typical Applications

• Auditorium
• All-hands room
• House of worship
• Multi-purpose room
• Training room
• Commercial meeting space
• Government space

Technical Specifications

Frequently Asked Questions

What projectors work with the Matt White XT1000VB surface?
It is a diffusing white surface compatible with virtually any front-projection source, including standard and laser projectors. For a 248" image, size projector brightness to your room's ambient light conditions.

Can this screen be suspended from a ceiling or truss?
Yes. The Profile+ can be wall-mounted or flown. Wall brackets ship standard; request flown brackets when ordering. Mounting fasteners are not included.

How does the screen ship and what does assembly involve?
It ships unassembled so it can be carried through elevators, stairways, and corridors. The frame assembles on site and the viewing surface attaches with Draper's sliding hook-and-loop system.

Should I choose the borderless finish or the bezel trim?
Borderless provides an edge-to-edge architectural look, while the 5/8" bezel adds a slim framed perimeter. Specify your preference at the time of order.

Does a fixed frame screen require power or control system integration?
No. The Profile+ is a passive fixed frame screen, so there is no motor, low-voltage wiring, or control programming required in the AV system design.

What warranty and support are included?
Draper covers the Profile+ with a 5-year warranty valid in the US and Canada, and Creation Networks provides pre-sale design assistance and post-sale support for commercial AV deployments.
