Draper Profile+ 283" 16:10 Matt White XT1000V – Large Venue Fixed Frame Projection Screen

Product Overview

The Draper Profile+ 283" fixed frame projection screen (part number 254254) presents a 150" x 240" image in the 16:10 widescreen format favored for data, dashboards, and presentation content. Its Matt White XT1000V surface delivers neutral color and wide viewing angles, making this large venue projection screen a dependable choice for auditoriums, training rooms, and government briefing spaces with controlled lighting. The lightweight Profile+ frame installs at under 2 inches deep with a borderless or slim bezel finish, so even at a 20-foot image width the installation keeps a clean, low-profile architectural look.

Product Description

The 254254 is the largest standard 16:10 configuration in Draper's Profile+ line, and the 16:10 aspect ratio matches the native output of most business and installation projectors, which means presentation decks, spreadsheets, and command-and-control layouts fill the screen without letterboxing. That makes this 283 inch projection screen a strong specification for corporate auditorium AV, higher education lecture halls, and large training room installations where legibility from the back row drives screen size. The Matt White XT1000V surface is Draper's standard diffusing surface, providing accurate color reproduction and a wide viewing cone so content reads clearly from seats far off-axis — important in wide rooms with distributed seating. The Profile+ frame is engineered to carry large surfaces while staying lightweight, finishing at less than 2" (51 mm) deep. Specify a borderless edge for an image-only appearance or a 5/8" (16 mm) bezel trim for a defined border. Draper's sliding hook-and-loop system attaches and tensions the viewing surface evenly, and the screen ships unassembled so install crews can move components through elevators and stairwells before building the frame in the room. Wall brackets are included as standard and flown brackets are available from Draper on request. To evaluate comparable fixed frame and large venue options, see the Draper collection at creationnetworks.net/collections/draper.

Key Features

• 283" Diagonal 16:10 Image — Provides a 150" x 240" viewing area matched to the native format of most installation projectors.
• Matt White XT1000V Surface — Neutral 1.0 gain matt white surface delivers accurate color and a wide viewing cone for distributed seating.
• Lightweight Large-Format Frame — Profile+ engineering supports a 20-foot-wide image without the bulk of traditional fixed frames.
• Sub-2" Installed Depth — Finishes at less than 2" (51 mm) deep for a flat, architectural wall profile.

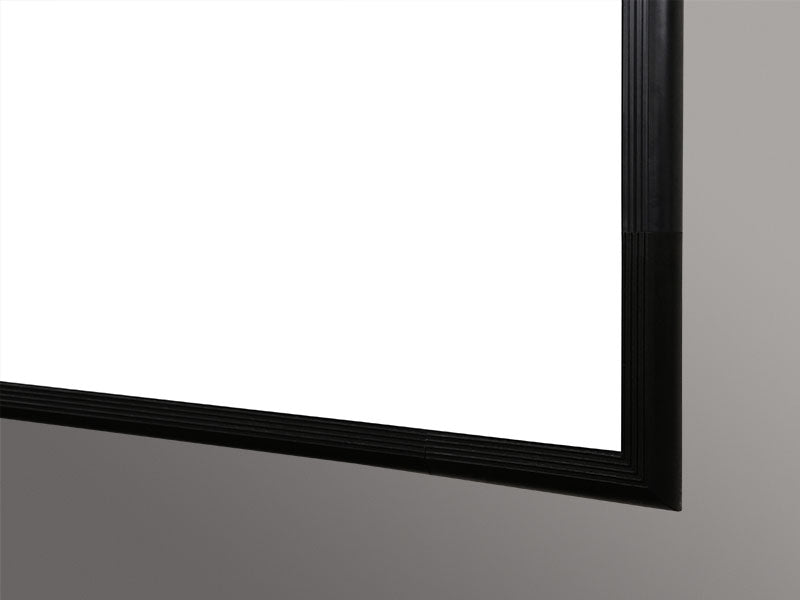

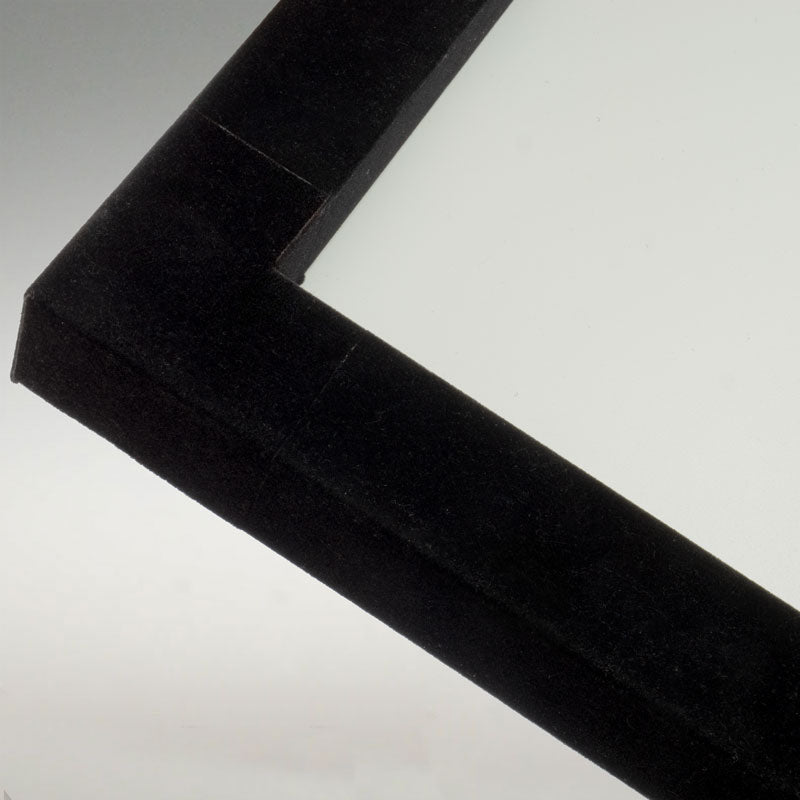

• Borderless or Bezel Finish — Available borderless or with a 5/8" (16 mm) bezel trim to suit the room design.
• Wall-Mount or Flown Installation — Wall brackets ship standard; flown brackets are available on request for suspended applications.
• Hook-and-Loop Surface Tensioning — Sliding attachment system produces a flat, evenly tensioned projection plane and speeds assembly.
• Ships Unassembled — Components move easily through stairs, elevators, and corners on the way to the room.
• 5-Year Manufacturer Warranty — Covered by Draper's five-year warranty in the United States and Canada.

Typical Applications

• Auditorium
• Training room
• All-hands room
• Government space
• House of worship
• Multi-purpose room
• Commercial meeting space

Technical Specifications

Frequently Asked Questions

Why specify 16:10 instead of 16:9 for this installation?
Most business and large-venue installation projectors output 16:10 natively (WUXGA and similar), so a 16:10 screen uses the projector's full resolution for presentation and data content without black bars.

Is the Matt White XT1000V surface suitable for rooms with ambient light?
Matt White XT1000V performs best in rooms with controlled lighting. For venues where house lights stay on, consider a Profile+ configuration with Draper's Grey XH600V contrast surface instead.

How much wall space does the 254254 require?
The viewable image is 150" x 240"; allow additional clearance for the frame and border option you select, plus service access. Confirm overall dimensions against your wall elevation during system design.

What does installation involve at this size?
The screen ships unassembled. A commercial AV integration crew assembles the frame on site, attaches the surface with the hook-and-loop system, and hangs the frame on the included wall brackets. Flown brackets are available by request for suspended installs.

Does a fixed frame screen need control system programming?
No. With no motors or electronics, the screen requires no low-voltage wiring or control processor integration, which removes a failure point from large venue AV systems.

What warranty backs this screen?
Draper warrants the Profile+ for five years in the United States and Canada, and Creation Networks provides sizing guidance and post-sale support for commercial deployments.
