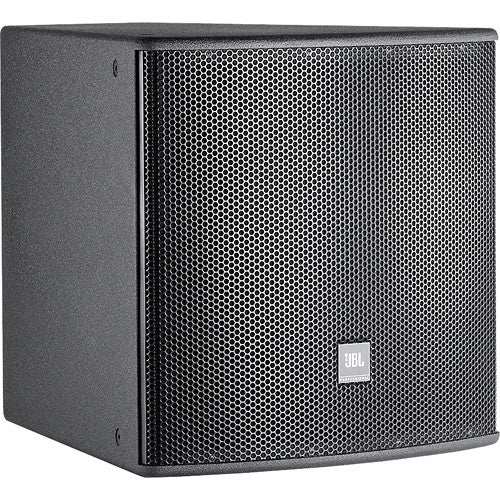

JBL AL7115-WRC High-Power 15" Low-Frequency Loudspeaker – Weather Protected
JBL AL7115-WRC High-Power 15" Low-Frequency Loudspeaker – Weather Protected is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or just need expert advise? Give us a call at 1-888-230-3661 or LiveChat below. Purchasing 1 or 100, there may be greater savings beyond the advertised price.
JBL AL7115-WRC High-Power 15" Low-Frequency Loudspeaker – Weat...
The JBL AL7115-WRC is a high-power, single 15-inch low-frequency loudspeaker designed for professional sound reinforcement in demanding environments. Built with JBL’s Differential Drive® technology, it features the 2265H 15-inch low-frequency driver with a 75 mm dual voice coil, mounted in a front-loaded, vented trapezoidal cabinet. This design ensures high output with minimal distortion, making it ideal for applications requiring clear, punchy bass reproduction and extended low-frequency response. The speaker delivers a frequency range of 40 Hz to 4.2 kHz (-10 dB), with a system sensitivity of 97 dB, providing reliable performance in medium to large venues.
Constructed from 16 mm exterior-grade 11-ply Finnish birch plywood, the AL7115-WRC features a durable Black DuraFlex™ finish, with White available upon request. The trapezoidal enclosure includes 13 M10 threaded suspension points for secure mounting, and the optional planar array frame kit and AE Series array bracketry allow seamless integration with other AE Series loudspeakers for flexible array configurations. Input options include NL4 Neutrik Speakon® and CE-compliant covered barrier strip terminals, compatible with a variety of professional audio setups.
The AL7115-WRC is engineered for performing arts facilities, theaters, auditoriums, houses of worship, live and dance clubs, sports venues, and themed entertainment locations. With a system power rating of 600 W (2400 W peak) and maximum SPLs up to 133 dB peak, it provides powerful, reliable low-frequency output for a wide range of applications. Its large vent area, trapezoidal design, and robust construction make the AL7115-WRC an ideal choice for professionals seeking high-performance bass reinforcement in both indoor and weather-protected outdoor environments.
Features:
-

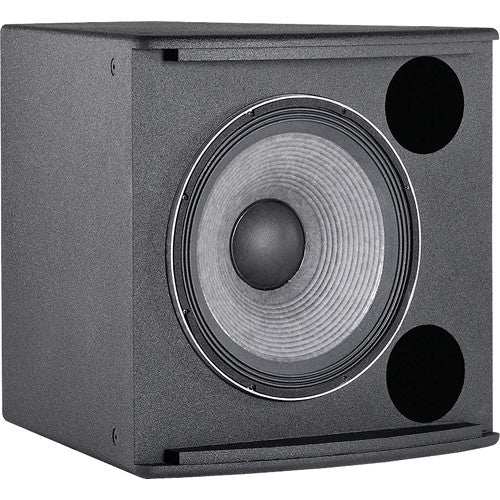

1 x 15" 2265H Differential Drive® low-frequency driver
-
Large vent area for high output and low distortion
-
Compatible with AE Series arrays for flexible system configurations
-
Trapezoidal cabinet with 15-degree side angles
-
13 M10 threaded suspension points; array brackets available
-
Black DuraFlex™ finish; White optional
-
NL4 Speakon® and barrier strip inputs for professional connections
-
Ideal for performing arts, theaters, clubs, auditoriums, houses of worship, sports venues, and themed entertainment
Specifications Table:
| Specification | Detail |
|---|---|
| Frequency Range (-10 dB) | 40 Hz – 4.2 kHz |
| Frequency Response (±3 dB) | 47 Hz – 3.0 kHz |
| Transducer Power Rating (AES) | 1000 W (4000 W peak), 2 hrs |
| System Power Rating | 600 W (2400 W peak), 100 hrs |
| Maximum SPL (1m) | 50–125 Hz: 127 dB cont avg (133 dB peak), 125–800 Hz: 126 dB cont avg (132 dB peak) |
| System Sensitivity | 97 dB (50–125 Hz & 125–800 Hz) |
| Nominal Impedance | 8 ohms |
| LF Driver | 1 x JBL 2265H 15" Differential Drive® with 75 mm dual voice coil |
| Enclosure | Trapezoidal, 16 mm 11-ply Finnish birch plywood |
| Suspension | 13 points, M10 threaded hardware |
| Finish | Black DuraFlex™; White optional |
| Grille | Powder-coated 14 gauge steel with acoustically transparent black foam |

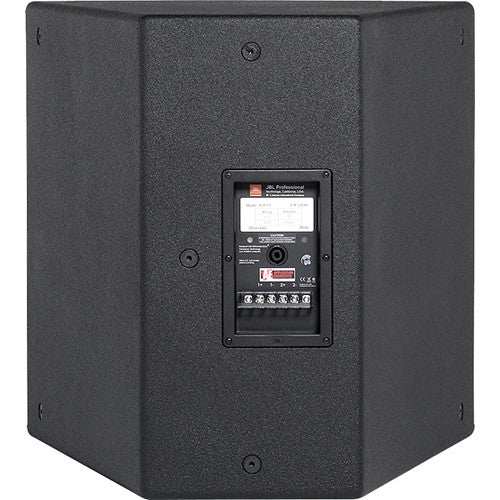

| Input Connector | NL4 Speakon® & barrier strip terminals |
| Environmental | Mil-Std 810; IP-x3 per IEC529 |
| Dimensions (H x W x D) | 548 x 561 x 657 mm |
| Net Weight | 25.9 kg (57 lb) |
Compare Table:
| Feature | AL7115-WRC | AL7215 | AL7218 |
|---|---|---|---|
| LF Driver | 15" Differential Drive® | 15" Differential Drive® | 18" Differential Drive® |
| System Power Rating | 600 W Passive | 600 W Passive | 800 W Passive |
| Max SPL | 133 dB Peak | 134 dB Peak | 136 dB Peak |
| Coverage | Omnidirectional LF | Omnidirectional LF | Omnidirectional LF |
| Orientation | Trapezoidal | Trapezoidal | Trapezoidal |
| Suspension | 13 M10 Points | 13 M10 Points | 15 M10 Points |
