Shure BLX24/SM58-H10 Wireless Vocal System with SM58 Handheld Transmitter
Shure BLX24/SM58-H10 Wireless Vocal System with SM58 Handheld Transmitter - BLX24/SM58-H9 is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or just need expert advise? Give us a call at 1-888-230-3661 or LiveChat below. Purchasing 1 or 100, there may be greater savings beyond the advertised price.
Shure BLX24/SM58-H10 Wireless Vocal System with SM58 Handheld Trans...
The Shure BLX24/SM58-H10 combines legendary vocal performance with simple, reliable wireless operation. This analog UHF system features a BLX4 single-channel tabletop receiver paired with a BLX2 handheld transmitter integrated with the industry-standard SM58 cardioid dynamic microphone capsule. QuickScan technology automatically selects the clearest frequency, while up to 14 hours of battery life from two AA batteries supports extended use in live settings.
The SM58 capsule delivers clear, warm vocal reproduction with a cardioid polar pattern that focuses on the sound source and rejects background noise and feedback. The system provides stable transmission with a line-of-sight range of up to 300 feet. Balanced XLR and 1/4-inch outputs on the receiver ensure easy connection to mixers and amplifiers.
This wireless system is ideal for bands, vocalists, presenters, and small to medium venues. It integrates seamlessly with standard audio equipment and allows expansion to multiple compatible systems per frequency band. The H10 frequency band (542-572 MHz) offers reliable performance in appropriate regulatory environments.
Features Chart
| Feature | Benefit |
|---|---|
| SM58 Cardioid Dynamic Capsule | Provides clear, professional vocal sound with excellent feedback rejection and off-axis noise control |
| QuickScan Frequency Selection | Automatically finds the best available channel for fast and easy setup |

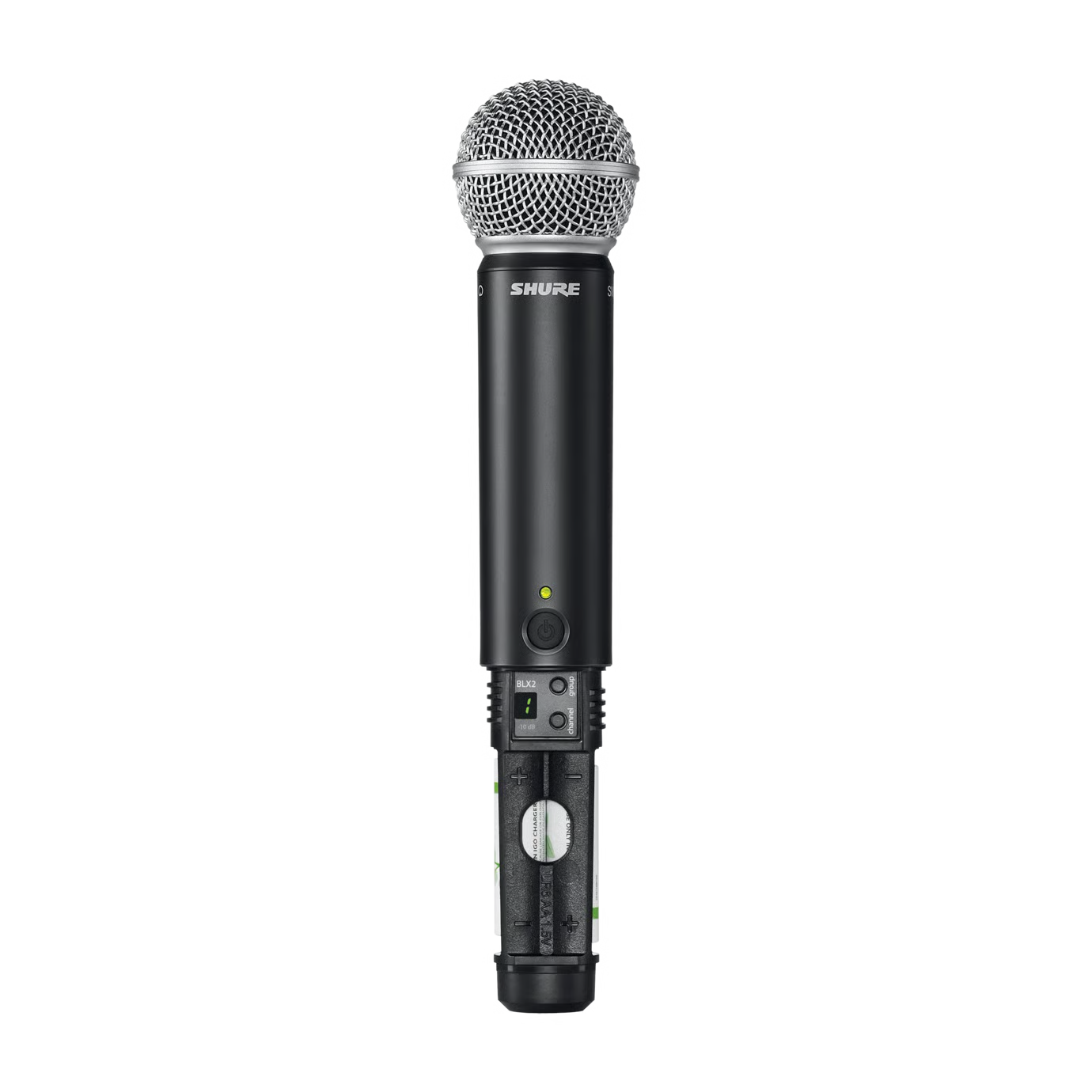

| Up to 14 Hours Battery Life | Ensures reliable operation throughout long events using two AA alkaline batteries |
| 300 Feet Operating Range | Allows performers freedom of movement on stage or into the audience |
| Analog UHF Transmission | Delivers consistent, high-quality audio suitable for live vocal applications |

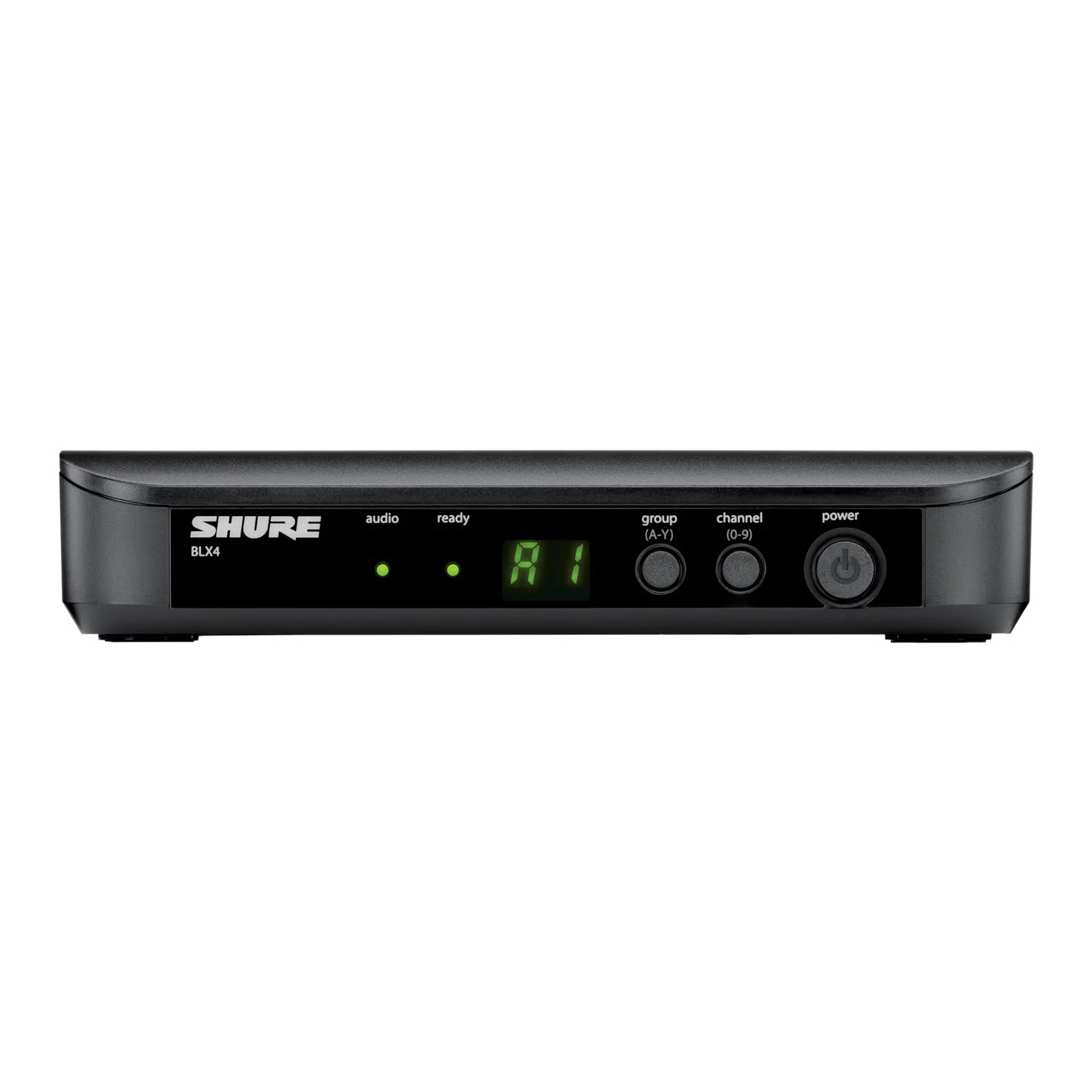

| One-Touch Receiver Controls | Simplifies group and channel selection for intuitive operation |
| Expandable to 12 Systems per Band | Supports multiple wireless channels in the same venue depending on environment and region |
| Balanced XLR and 1/4-Inch Outputs | Offers flexible connectivity to a wide range of audio mixers and amplifiers |
Specifications Table
| Specification | Details |
|---|---|
| System Type | Analog UHF Wireless Vocal System |
| Frequency Band | H10 (542-572 MHz) |

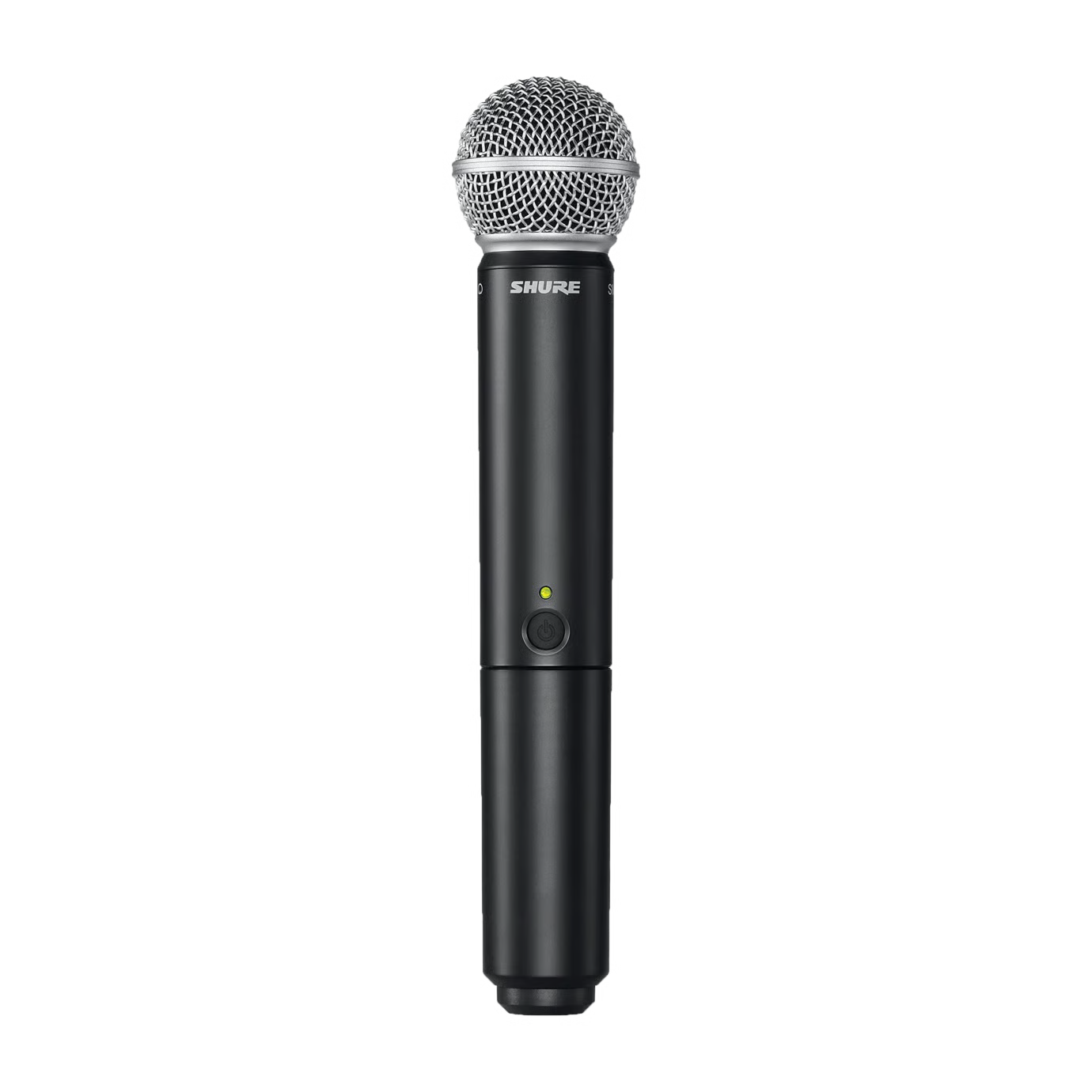

| Transmitter | BLX2 Handheld with SM58 Cardioid Dynamic Capsule |
| Receiver | BLX4 Single-Channel Tabletop Receiver |
| Operating Range | Up to 300 feet (91 m) line of sight |
| Battery Life | Up to 14 hours with 2 AA alkaline batteries |
| Audio Frequency Response | 50 Hz to 15,000 Hz |
| RF Output Power | 10 mW typical |
| Gain Adjustment Range | 10 dB |

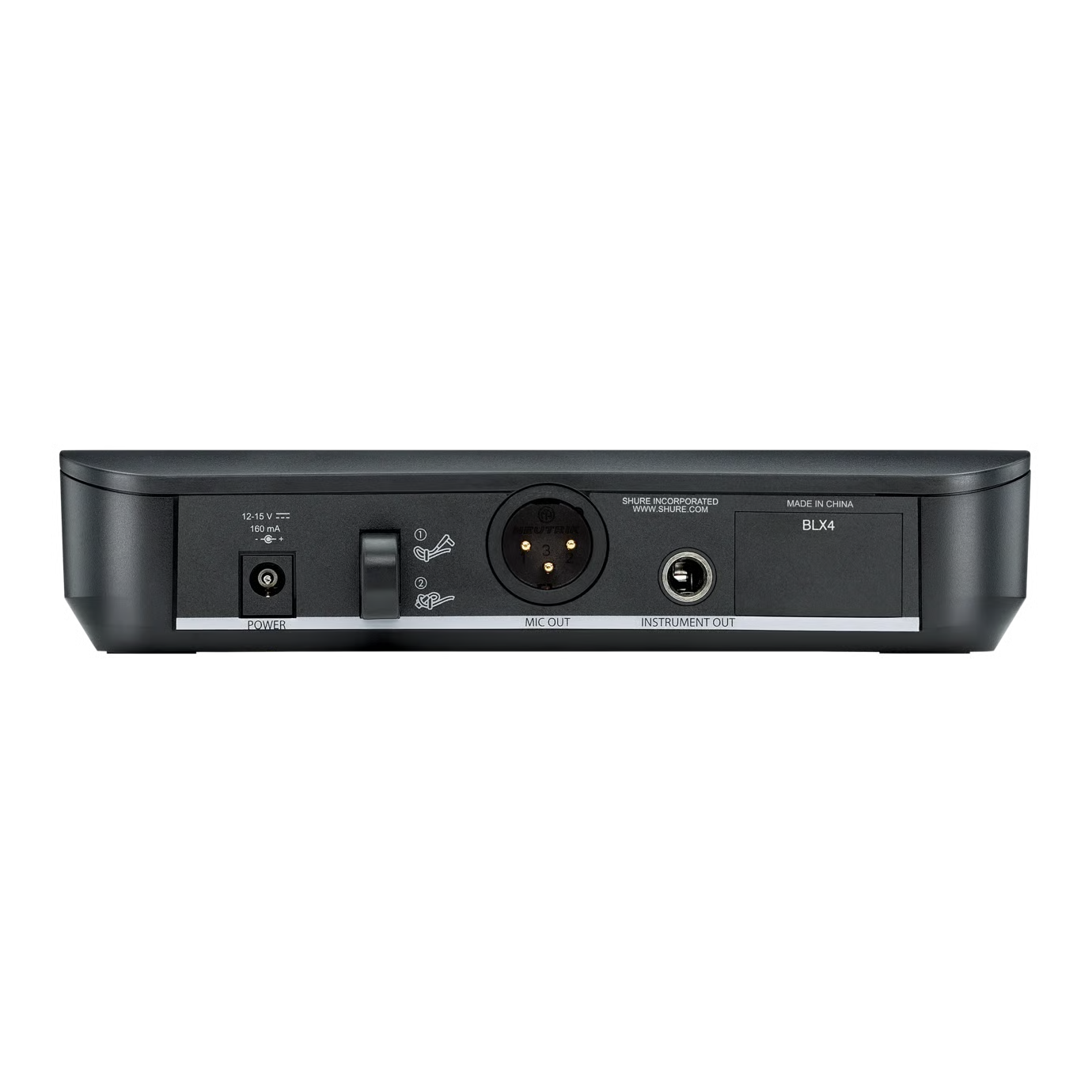

| Receiver Outputs | XLR balanced and 1/4-inch unbalanced |
| Number of Channels | 123 available frequencies |
| Simultaneous Systems | Up to 12 per frequency band (region and environment dependent) |
| Included Components | BLX4 receiver, BLX2/SM58 handheld transmitter, microphone clip, power supply, 2 AA batteries, user guide, swivel adapter, thread adapter |
Compare Chart
| Aspect | Shure BLX24/SM58-H10 | Shure BLX24/PG58-H10 | Shure SLXD24/58 |
|---|---|---|---|
| Microphone Capsule | SM58 Cardioid Dynamic | PG58 Cardioid Dynamic | SM58 Cardioid Dynamic |
| Audio Technology | Analog UHF | Analog UHF | 24-bit digital |
| Operating Range | 300 feet | 300 feet | Up to 328 feet |
| Battery Life | Up to 14 hours | Up to 14 hours | Up to 8 hours |
| Quick Setup Feature | QuickScan frequency selection | QuickScan frequency selection | Automatic scan and IR sync |
| Typical Applications | Live vocals and bands | Entry-level live vocals | Professional digital vocal performance |
| Receiver Form Factor | Tabletop single-channel | Tabletop single-channel | Tabletop single-channel |
| Expandability | Up to 12 systems per band | Up to 12 systems per band | Higher channel count possible |
FAQ
- What frequency band does the BLX24/SM58-H10 use? It operates in the H10 band (542-572 MHz); check local regulations for availability and licensing requirements.
- How long does the battery last? The handheld transmitter provides up to 14 hours of continuous use with fresh AA alkaline batteries.
- Is the system suitable for multiple performers? Yes, up to 12 compatible systems can operate simultaneously per frequency band depending on the environment and region.
- What outputs are available on the receiver? The BLX4 receiver includes both balanced XLR and unbalanced 1/4-inch outputs for connection to mixers and amplifiers.
- Can the SM58 capsule be used wired? The SM58 design is optimized for wireless but shares the same legendary performance characteristics as the wired version.
- How is setup performed? One-touch QuickScan on the receiver locates the clearest frequency, followed by simple transmitter pairing for quick operation.
