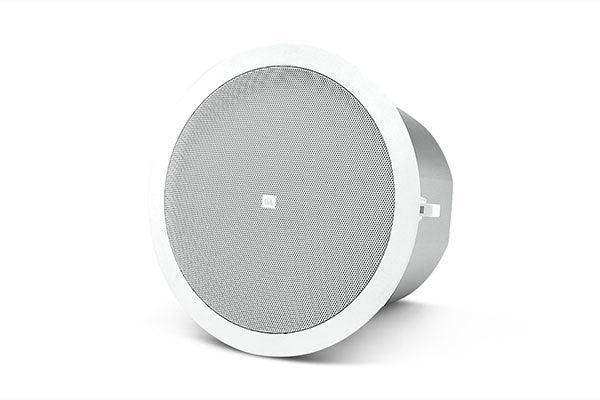

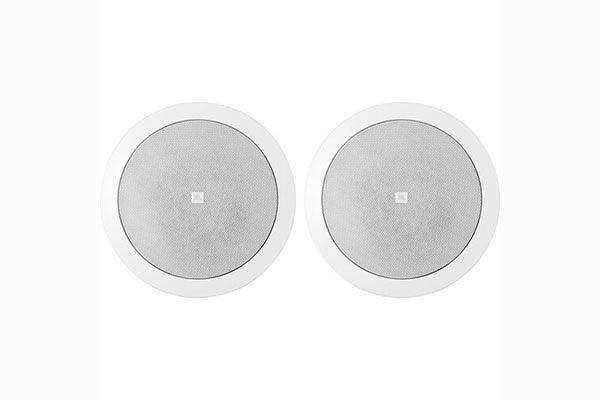

Sold as a pair, The compact JBL Control 24C 2-Way Ceiling Speaker is designed for medium volume paging and background music applications including restaurants, professional offices, and retail. Installation is possible without ceiling access, and all necessary installation materials are conveniently provided.
The Control 24C may be used with other High/Mid response Control Contractor Systems to achieve a more flexible system, and one capable of mixing and matching zones without separate equalization. Low frequencies may be augmented using a Control Contractor subwoofer.
Features
- Inexpensive, high-quality installation speaker for background music and paging applications
- 80W power handling
- 4" polypropylene-coated woofer
- Wide 130° coverage
- Paintable trim and baffle for unobtrusive appearance
- 0.75" titanium-coated polyester tweeter
- Custom quick-install kit provided
Specification
| Active or Passive | Passive |
| Frequency Response | 80 Hz to 25 kHz |
| Power Capacity | 80 Watts (Continuous Program) 40 Watts (Continuous Pink Noise) |
| Maximum Sound Pressure Level (SPL) | 102 dB @ 1 m |
| Nominal Sensitivity | 86 dB SPL @ 1 m |
| Transformer Taps | No |
| Impedance | 16 Ohms |
| Crossover | 3.5 kHz |
| Shielded | No |
| Low Frequency Driver | 4" / 100 mm Woofer |
| High Frequency Driver | 0.75" / 19 mm Tweeter |
| Enclosure Material | Formed Steel |
| Input Connections | Screw-Down Terminals, Touch-Proof, UL, CE and VDE Rated, Outside of Backcan |
| Environmental | Indoor Only |
| Dimensions | Outside Dimensions: 7.9 x 7.7" / 200 x 195 mm 7.2" / 184 mm (Front of Ceiling Tile to Back of the Backcan) |
| Weight | 6 lb / 2.7 kg Each |
Packaging Info
| Package Weight | 14.5 lb |
| Box Dimensions (LxWxH) | 26.2 x 12.2 x 9" |
