Q-SYS Zoom Room Meeting Space Solution: All Hands Space

Meeting Space Solution: All Hands

Transform your high-impact all hands space into exceptional Zoom Rooms environments using Q-SYS. Our diverse range of devices is designed to cater to your room’s specific requirements, offering various loudspeaker options for in-ceiling, open ceiling, and directional audio needs. Beyond advanced audio processing, the Q-SYS Core Processor empowers you with multi-camera switching, automation, and Solutions Overview Guide

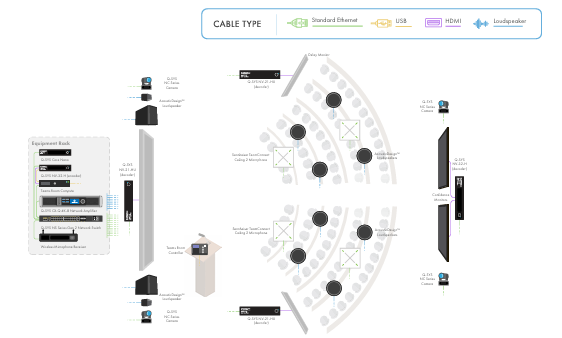

Meeting Room Solution: All Hands Space+ Zoom

• The Q-SYS Core Nano Processor is the hub of the system. It connects to the Zoom Rooms Compute with a single driverless USB connection for audio and video.
• The Zoom Rooms sample design offers audio settings optimized for Zoom Rooms, featuring advanced configurable acoustic echo cancellation (AEC) and noise reduction. These enhancements guarantee echo-free audio, even in the most acoustically challenging spaces.
• Q-SYS NC-12x80 and NC-20x60, network PTZ cameras, use the power of the network allowing you to use as many Q-SYS network conference cameras in the space providing multiple points of view to frame the right shot.
• AcousticDesign™ Series AD-C6T ceiling loudspeakers are ideal for overhead loudspeaker placement for in-ceiling and open ceiling applications respectively.
• AcousticDesign™ Series AD-S162T surface column-mount loudspeakers offer directional audio for a more natural videoconferencing experience when mounted beside a display.
• Q-SYS NV Series video endpoint allows multi-stream video encoding or decoding for network-based HDMI video distribution.
• Sennheiser TeamConnect Ceiling 2 auto dynamic beamforming technology enables flexible room configurations and captures speech from anywhere in the room

Download Guide

Key Features

• Full Zoom Certification: Ensures native compatibility and trusted performance in enterprise conferencing spaces.
• Q-SYS Core Processor: Offers centralized control and audio DSP with expandable AV capabilities, eliminating the need for multiple processors.
• Sennheiser Ceiling Microphones: Dual TeamConnect Ceiling 2 mics automatically detect and focus on active speakers across the room.
• Optimized Speaker Layout: Includes both column and ceiling loudspeakers for balanced, directional sound that adapts to room layouts.
• Preconfigured QSC Network Switch: Ensures fast, reliable deployment of Q-SYS peripherals.
• USB Integration: A single USB connection simplifies PC-to-processor audio routing, reducing cabling and setup time.
• Flexible, Professional Design: Engineered for commercial-grade reliability, with easy expansion into full room control via Q-SYS.

Technical Specifications

1 x Q-SYS Core Nano processor

1x  Netgear GSM4230PX-100NAS network switch

2 x Q-SYS NC-12x80 network camera

2 x Q-SYS NC-20x60 network camera

4 x Sennheiser TeamConnect Ceiling 2 microphone

2 x AD-S802T column surface-mount loudspeaker

8 x AD-C6T-LP ceiling loudspeaker

2 x AD-S28Tw 8-inch Subwoofer

1 x Q-SYS CX-Q 2K-4 network amplifier

2 x Q-SYS NV-32-H network video endpoint

3 x NV-21-HU Q-SYS Network Video Endpoints

Audio Technology & Processing

• Teams-certified audio profiles for optimal room performance
• Advanced Acoustic Echo Cancellation (AEC) for echo-free remote audio
• Noise Reduction to eliminate background noise while preserving voice clarity
• QSC Intrinsic Correction™ DSP optimizes loudspeaker performance
• Column loudspeakers enhance speech intelligibility and directionality
• Ceiling loudspeakers support overhead audio for extra-large room coverage
• Sennheiser beamforming mics dynamically track speakers without manual adjustment
• HID integration for Teams mute sync with mic LED indicators and room console

Competitive Advantages

• Certified End-to-End: Avoid integration issues with a fully Teams-certified audio ecosystem.
• Scalable Architecture: Expand with QIOs and additional devices as room needs evolve.
• Simple USB Integration: Streamline installation with a single audio connection to your PC.
• Professional AV Deployment: Designed to meet the technical demands of IT and AV integrators.
• Natural Audio Presence: Balanced loudspeaker layout and dynamic mic tracking create a lifelike audio environment.

Comparison Table

Talk to a Certified AV Expert

Upgrade your Microsoft Teams Room with this scalable, certified audio solution built for performance and reliability. Contact Creation Networks today for custom configuration and deployment support.
