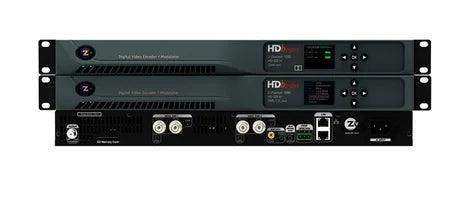

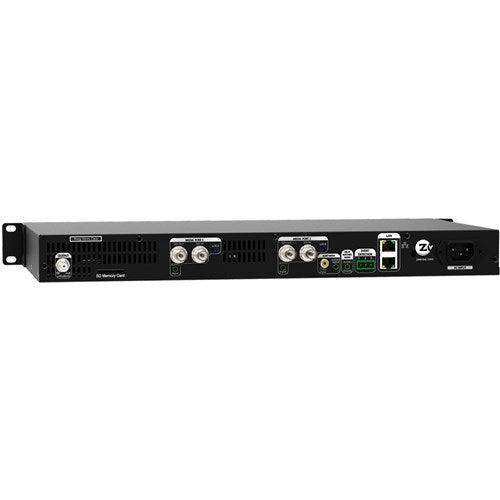

ZeeVee HDb2920-NA HDbridge 2920 Digital Encoder and Modulator

Availability: Call for Availability
Availability: Direct Ship
ZeeVee SKU: HDB2920-NA
No reviews
Price:
$3,017.60

Description

The HDb2920-NA Digital Encoder and Modulator by ZeeVee provides the ability to convert all your video and audio sources to a digital cable channel and broadcast it over coaxial cable to all of your HDTVs. The perfect solution for providing entertainment and broadcasting your message throughout restaurants and conference centers.

The HDb2920-NA model employs headend-ready technology that delivers 1080 resolution video from HD-SDI sources to an unlimited number of displays over coaxial connections for broadcast studios, security, and large venue applications like stadiums and arenas.Whether your audience is large or small, the HDb2920-NA Digital Encoder and Modulator by ZeeVee is what you need to make your message clear.

ZeeVee HDb2920-NA Features:

  • Transmit multiple SDI channels over a QAM or DVB-T/C network
  • HD-SDI ports have reclocked, amplified loop-through output
  • Faster deployment and configuration with our Maestro interface
  • Added support for an Emergency Alert (EAS) channel, closed-captioning, and a bonus information channel
  • Superior video quality
  • Dolby Digital audio
  • Mission-critical reliability
  • Hardware Features:
    • Use Existing Coax Cable
    • Consolidated Cabling
    • Set All Channels at Once
    • MPEG2 Video and Dolby® AC3 / MPEG-1 Audio Layer 2 Audio Encoding
    • QAM, DVB-T, and DVB-C
    • Optimized Rack Space
    • Unified Architecture and Technology Across All
  • Product Features:
    • Free Information Channel
    • Emergency Alert System Built In
    • Five Year Warranty
    • Closed Caption Capability

ZeeVee HDb2920-NA Specifications:

  • Total Channels: 2 HD
  • Video Input: HD-SDI
  • Audio Input: Digital
  • Cables: HD-SDI (sold separately)
  • Video Resolution: up to 1080p/i
  • Delay-Matched Audio: Single Channel
  • Fan Cooling: Dual Fan, Front to Back Cooling
  • Rack Mounts: Included and factory installed
  • Accessories included: 3' Hydra Component cables
