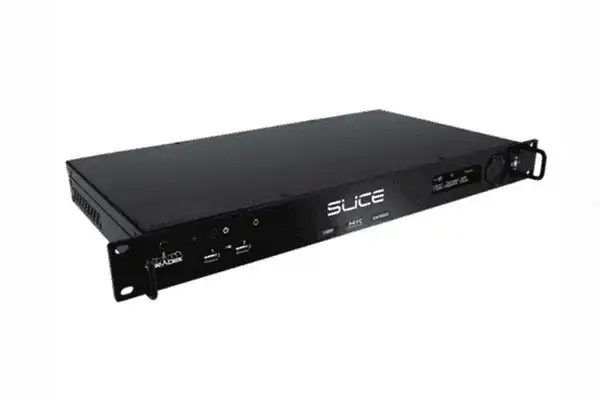

Slice 676 from Teradek is a 1U rack mount H.264 decoder built for OB vans and enterprise applications. It enables video professionals to output low latency high definition 1080p video at up to 10Mbps via HD-SDI. Slice 676 includes 2.4/5Ghz MIMO WiFi, ethernet, and cellular connectivity options and supports multiple transport protocols, including MPEG Transport Stream, and RTP/RTSP. With the addition of Teradek's Sputnik server, Slice 676 rack mount encoders gain IFB and remote monitoring capabilities that give broadcasters full control over their IP video deployments.
Features:
- Real-Time H.264 (AVC) Decoder
- Ethernet and USB Interfaces (No WiFi)
- HDMI and SDI Video Outputs (Outputs 1080p/30)
- Built-In Scaler
- 1U Rack Mount
- OLED Display
- Powers by AC Adapter or Lemo Battery
Specifications:
- Video Outputs: HDMI 1.4a: Full Size; SD/HD/3G-SDI (75Ω BNC)
- Supported resolutions:
- - 1080p 23.98/24/25/29.97/30/50/59.94/60*
- - 1080i 50/59.94/60
- - 1080PsF 23/24/25/29/30
- - 720p 50/59.94/60
- - 576i
- - 480i
- - 480p (for HDMI output only)
- - 576p (for HDMI output only)
- Video compression: Decompresses H.264, Baseline, Main and High Profile
- Supported video bitrate: 250 Kbps to 15 Mbps*; *15 Mbps (wired), 10 Mbps (WiFi)
- Test pattern generator support: None
- Video format conversion support: Built-in video scaler and deinterlacer
- Color correction: None
- Network Protocols: TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP
- Supported Video Transport Protocols:
- - RTP/RTSP: Unicast/TCP, Unicast/UDP, Multicast/UDP streams
- - MPEG Transport Stream: Unicast/TCP (pushed in from an external source, or pulled down from a remote server such as Core), Unicast/UDP, Multicast/UDP
- - Teradek Streaming : Unicast/UDP, Multicast/UDP
- Remote control: Teradek core
- Audio Compression: AAC-LC, MPEG Layer 2
- Audio input: Embedded Audio Input; Analog Line or Mic in, adjustable gain
- Audio Output: Headphone output, adjustable gain
- Dimensions: 9.8"W x 17"D x 1.7"H
- Weight: 144oz
- Construction: Milled Aluminum
- HTTP: WebUI for Configuration and Control
- Configuration Interfaces: OLED Display with joystick Navigation buttons; Feature-rich WebUI for configuration and control
- Switches: On/Off and Reset Switch
- Mobile App: Vuer, Live:Air
- USB Interface Functionality: 2x Powered USB 2.0 host port
- Ethernet: 10/100BASE-T
- Wireless: WiFi: 2.4/5GHz 802.11 ac/a/b/g/n MiMo
- USB: None
- RF Channel Selection: Auto with 3 modes: (2.4 or 5 Ghz), Auto (2.4 GHz only), Auto (5 Ghz only)
- Configurable to specific channels
- Encryption: 802.1x, 802,11i, WPA2, WPA and WEP 64/128 TKIP 128bit AES
- Power Input: 110/240V AC Power Input
- Battery: No Battery Included
- Nominal Power Consumption: 8W, 7W (no WiFi)
Item Includes:
- 1 x Slice Decoder
- 1 x Quickstart Guide - Slice Decoder
- 1 x Power Cable IEC
- 2 x Antenna 2dBi WiFi 2.4/5.8 GHz
Warranty: 1 Year
