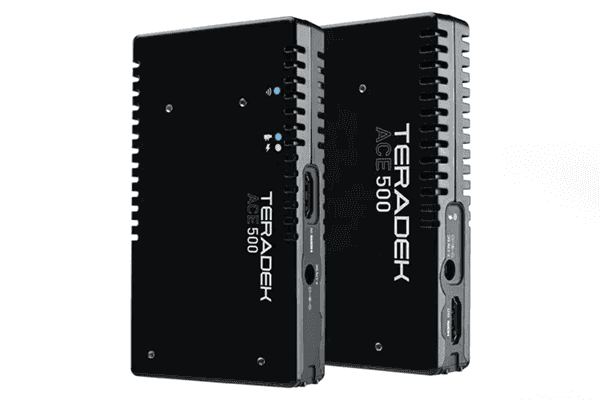

Teradek 10-1805 Ace 500 HDMI Wireless TX/RX

Teradek 10-1805 Ace 500 HDMI Wireless TX/RX

The Teradek Ace 500 is a powerful, compact and lightweight wireless video system that is ideal for professionals on a budget.

Teradek 10-1805 Includes:

• · 1 x Ace 500 Transmitter
• · 1 x Ace 500 Receiver
• · 1 x Mini-USB to USB cable, 18” long
• · 1 x P-Tap to R/A Barrel, 18” cable
• · 1 x Ultra-Thin HDMI Type-A cable, 18” long
• · 1 x R/A Barrel Power Supply Unit (12VDC AC adapter, 18W with 6’ cable)
• · 1 x Quick Start Guide

Teradek 10-1805 Features:

• · HDMI input/output
• · Transmits uncompressed 1080p60 video to receivers up to 500 feet away with less than 1ms delay
• · Able to transmit to up to 4 receivers within 500 feet
• · Ace 500 transmitters and receivers are compatible with all current Bolt 500, LT and XT models and integrated SmallHD Bolt monitors
• · Built for reliability and performance to ensure a continuous video feed every time
• · Durable aluminum and ABS plastic construction
• · Lightweight TX (126g) and RX (146g) are perfect for gimbals and camera rigs of any size
• · Transmitter and receiver include one 1/4-20” and two 4-40” mounting points
• · Available battery plates (Sony L-Series, BP-U, BP-9 and Canon LP-E6) for powering options (sold separately)

Teradek 10-1805 Specifications:

• Video:
• o TX Input: 1 x HDMI Type-A
• o RX Output: 1 x HDMI Type-A
• o Color Sampling: HDMI RGB 4:4:4, 8-bit
• o Delay: TX to RX:
• · Supported Resolutions:
• o 1080p 23.98/24/25/29.97/30/50/59.94/60
• o 1080psf 23.98/24/25/29.97/30
• o 1080i 50/59.94/60
• o 720p 50/59.94/60
• o 480p 59.94/576p 50 (via HDMI ports only)
• o 480i (NTSC)/576i (PAL)
• · Video Processing:
• o Video Compression: Visually lossless for both TX/RX
• o Test Pattern Generator Support: Yes, RX only
• o Video Format Conversion Support: None
• o Color Correction: None
• · Audio Processing: Audio compression, 48kHz, 24-bit PCM (TX/RX)
• · Audio Input: Embedded audio input, both TX/RX
• · Interfaces:
• o Reset/Pairing button (TX only)
• o Reset Button: RX only
• o Desktop App: Bolt Manager application for OSX and Windows
• o USB Interface: for firmware upgrades on both units
• o Configuration Interface: (RX only) OSD that appears on video output and can be controlled with the menu joystick
• Network:
  • Antennas: Internal
  • Wireless:
    • Non-DFS frequencies: US 5.19-5.23 GHz and 5.755-5.795 GHz, EU & JP 5.19-5.23 GHz
    • DFS frequencies: US 5.27-5.55 GHZ and 5.67 GHZ, EU & JP 5.27-5.67 GHz
  • RF Channel Selection: Auto only (not configurable)
  • Encryption: AES-128
  • RF Power: Up to 17 dBm
  • Range: Up to 500 feet line of sight
  • Unicast/Multicast: Yes
  • Noise Rejection: Can coexist with Wi-Fi and 5GHz cordless phones
• Power:
  • Power Input: Barrel Connector, 7-17VDC
  • Nominal Power Consumption: 4.8W (TX), 7.3W (RX) both measured at 1080p60
• Dimensions:
• o Transmitter: 2.6 x 4.7 x 0.6 in. (6.7 x 11.9 x 1.5 cm)
  • Receiver: 3.4 x 4.5 x 0.6 in. (8.6 x 11.5 x 1.5 cm)
• · Weight: TX - 4.4 oz. (126 g). RX – 5.2 oz. (146 g)
• · Operating Temperature: 0-40 degrees C (32 – 104 degrees F)
