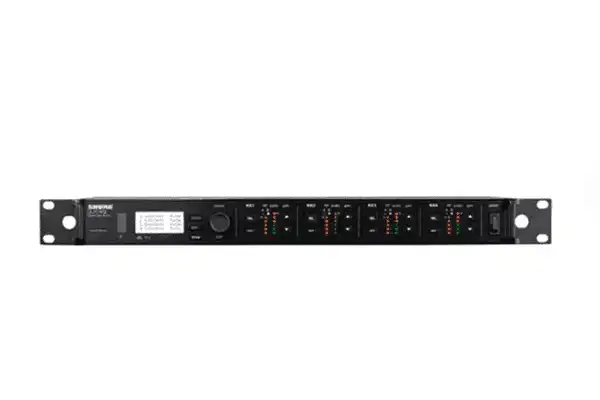

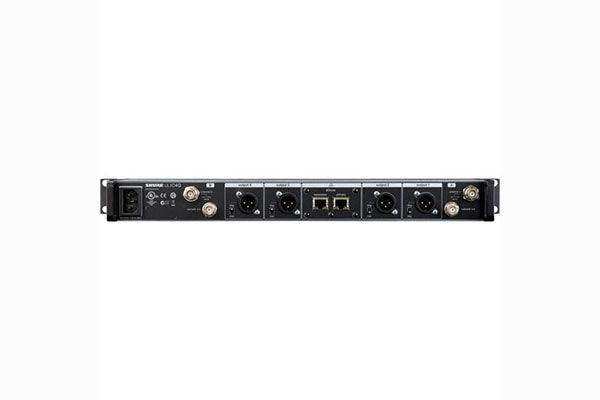

Shure ULXD4Q Quad-Channel Digital Wireless Mic Receiver - ULXD4Q=-X52

Availability: Call for Availability
Availability: Direct Ship
Shure SKU: ULXD4Q=-X52
No reviews
Price:
$6,453.00 $9,034.00

Description

The Shure ULXD4Q=-X52 Quad Channel Digital Wireless Receiver offers four channels of uncompromising audio quality, RF signal stability, and advanced setup features in a space-efficient single rack unit. Rugged yet lightweight and compact, the 1RU all-metal chassis houses four independent receivers, each with its own audio and RF meters, gain control, and XLR outputs that can be either direct or summed for flexible signal routing. At only 7.6 pounds, the ULXD4Q offers space savings in the rack and cost savings when shipping. With RF cascade and two Ethernet ports, units can easily share RF signal and be networked together for simplified frequency coordination and deployment. For networked audio applications, Dante™ digital networking allows multiple channels of audio over a single Ethernet cable. With the suite of features and benefits ULX-D® Digital Wireless Systems offer, the ULXD4Q is truly generations ahead of any other available receiver in its class, and brings a new level of performance and scale to professional sound reinforcement.

Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.

  • For Large Venues & A/V Installations
  • 4 x Digital Audio Channels, 1 Rackspace
  • 26 MHz Tuning Range
  • Expandable up to 12 Channels
  • 2 x Ethernet/Dante Ports
  • 2 x RF Cascade Ports
  • Audio Summing
  • Secure AES-256 Encryption

Shure ULXD4Q Specs
Wireless Technology Digital UHF
Number of RF Channel Frequencies 1040
Diversity Antenna Diversity
RF Frequency Band X52: 902 to 928 MHz
RF Bandwidth 26 MHz
Frequency Step Size 25 kHz
Max Operating Range 328.1' / 100 m
Max Transmitters per Band 12
Latency < 2.9 ms
Modulation Proprietary
Receiver
Receiver Type Rackmount
Mounting Options Rackmount (with Included Hardware)
Rackmount Size 1 RU (Full Rack)
Antenna 2 x 1/2 Wave External, BNC (Rear-Mount)
Antenna Bias Voltage 12 to 13 VDC, 150 mA (per Antenna)
Number of Audio Channels 4
Audio I/O 4 x XLR 3-Pin Male Balanced Output
Gain Range -18 to +42 dB (1 dB Steps)
Pad 30 dB
Audio Output Level XLR Outputs:
+18 dBV (Line Level, Balanced)
XLR Outputs:
-12 dBV (Mic Level)
Phantom Power Protection On XLR Outputs
Frequency Response 30 Hz to 20 kHz ±1 dB (Dependent on Mic)
Network I/O 2 x RJ45 (1 Gb/s)
Network Protocols DHCP, Dante, Manual IP
Impedance XLR Output:
100 Ohms (Balanced)
Approximate RF Sensitivity -98 dBm
Adjacent Channel Isolation >70 dB
Spurious Rejection: >80 dB
Power Requirements AC Input
AC Input Power 100 to 240 VAC, 50 / 60 Hz at 0.32 A
Display & Indicators 1 x Backlit LCD (Battery Status, Channel, Group, Menu Navigation)
2 x Multi-Segment LED (AF Level, Output Level, Peak)
Housing Steel
Operating Temperature 0 to 122°F / -17 to 50°C
Storage Temperature -20 to 165°F / -28 to 73°C
Dimensions 19 x 1.7 x 10.8" / 482 x 44 x 274 mm
Weight 7.6 lb / 3.4 kg
Packaging Info
Package Weight 11.6 lb
Box Dimensions (LxWxH) 27.5 x 17.4 x 3.6"
