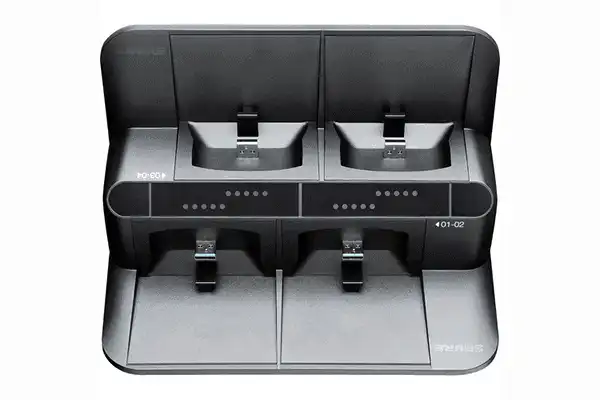

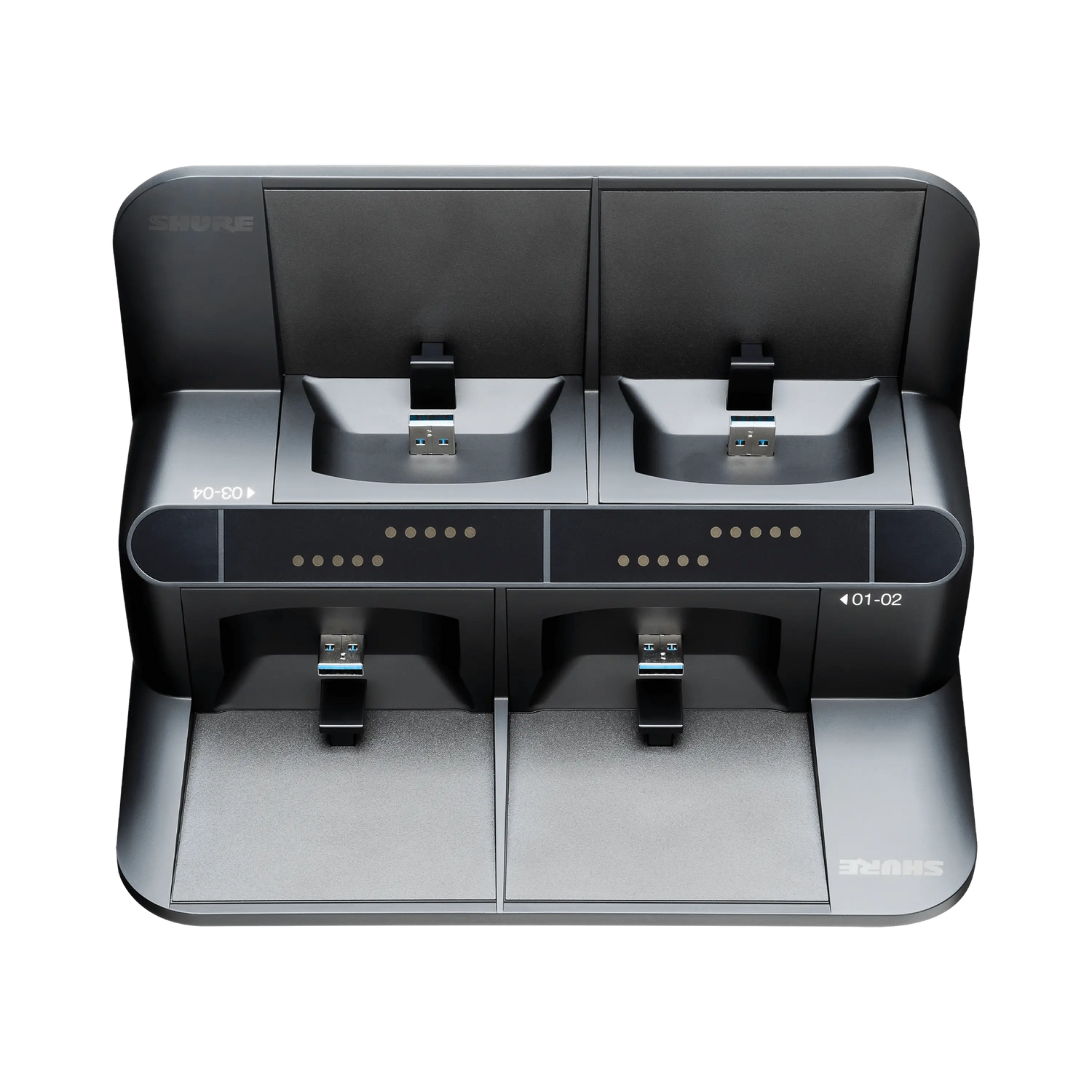

Shure SBC450-US 4-Bay Networked Charging Station with Power Supply

Product Overview

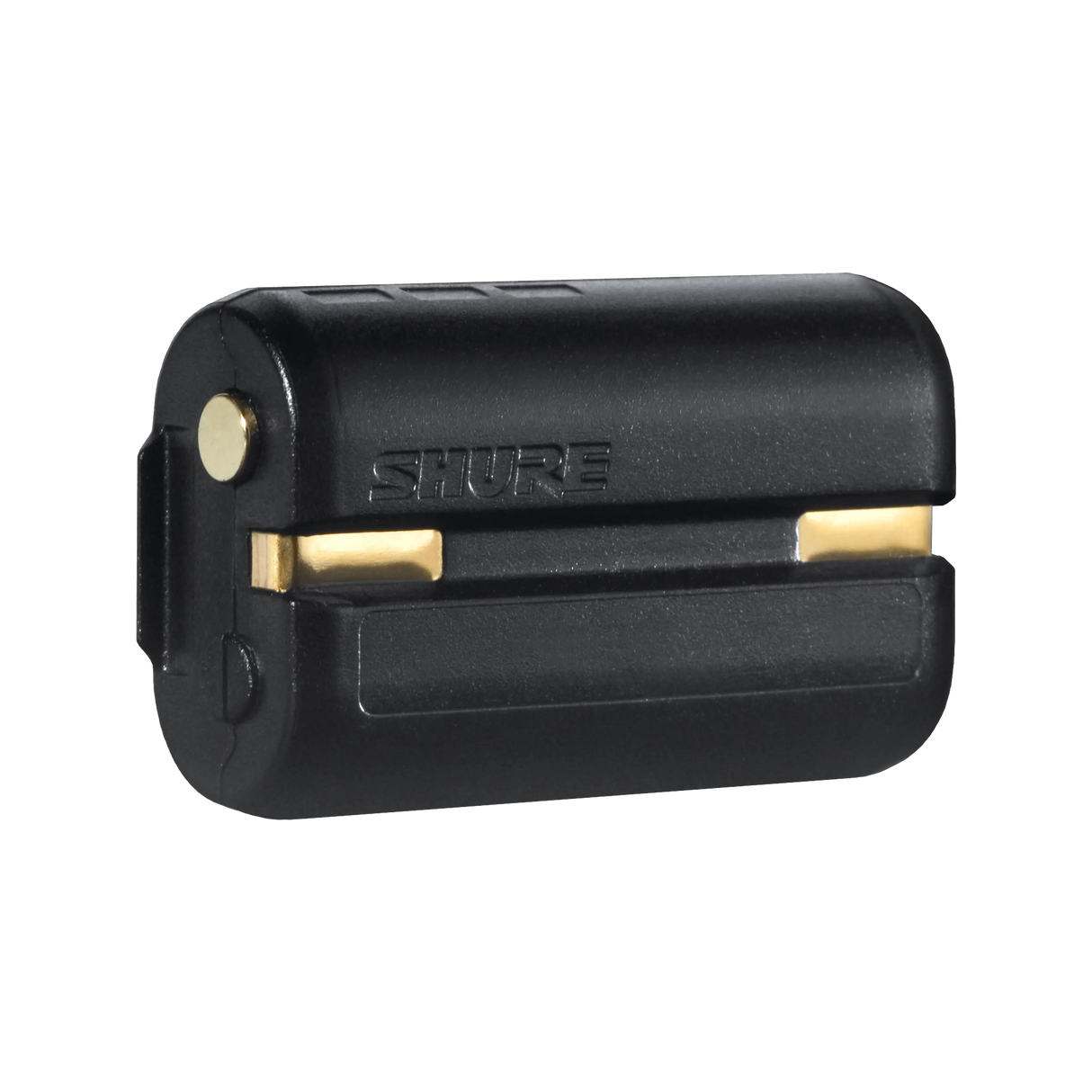

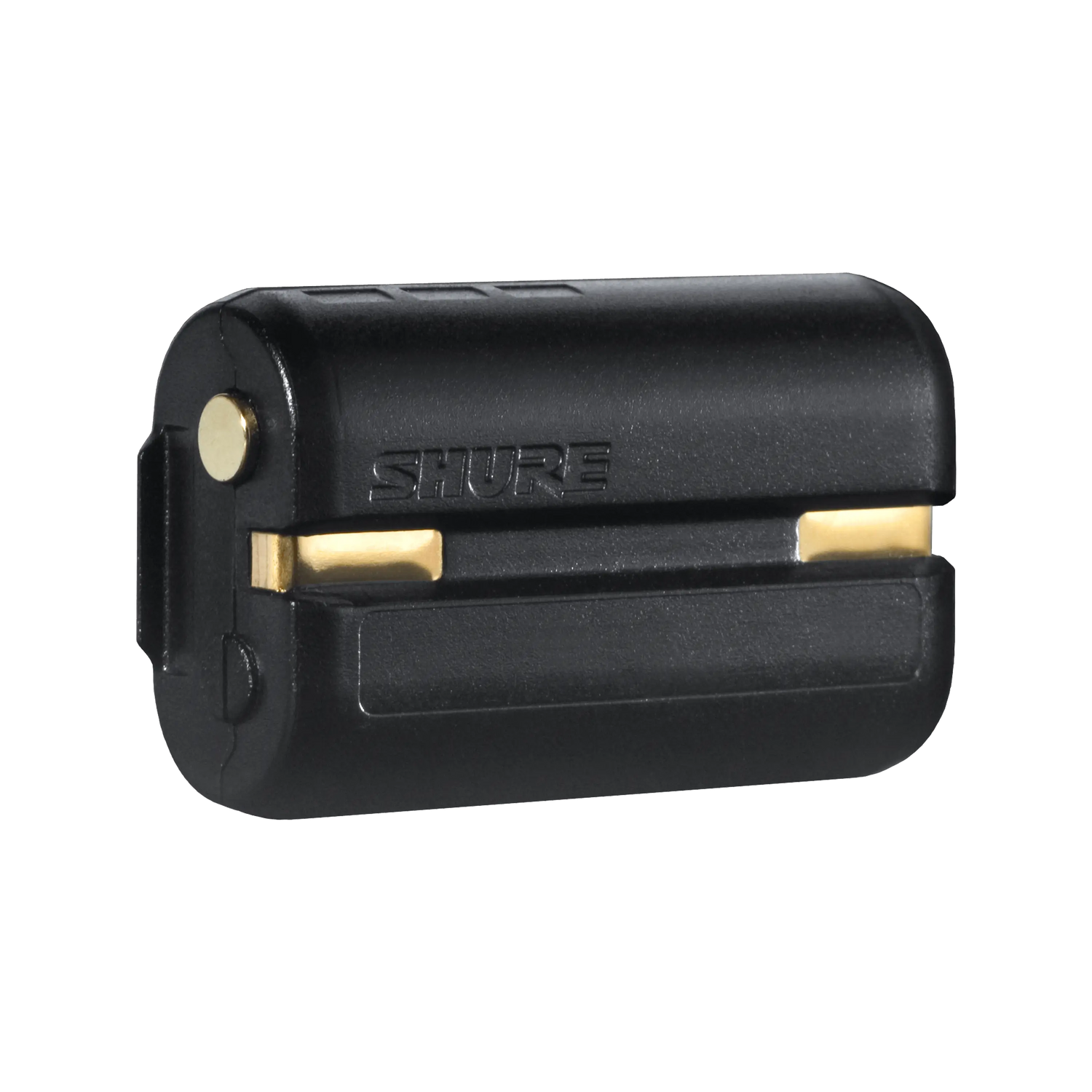

The Shure SBC450-US is a 4-bay networked charging station that charges up to four ULXD6 or ULXD8 transmitters equipped with the SB900B rechargeable battery. Supplied with its power supply, it suits commercial AV and installed wireless systems that keep a moderate fleet of boundary and gooseneck transmitters ready between meetings and events. Networked monitoring lets technicians track charge status and manage transmitters remotely from a rack or equipment room.

Product Description

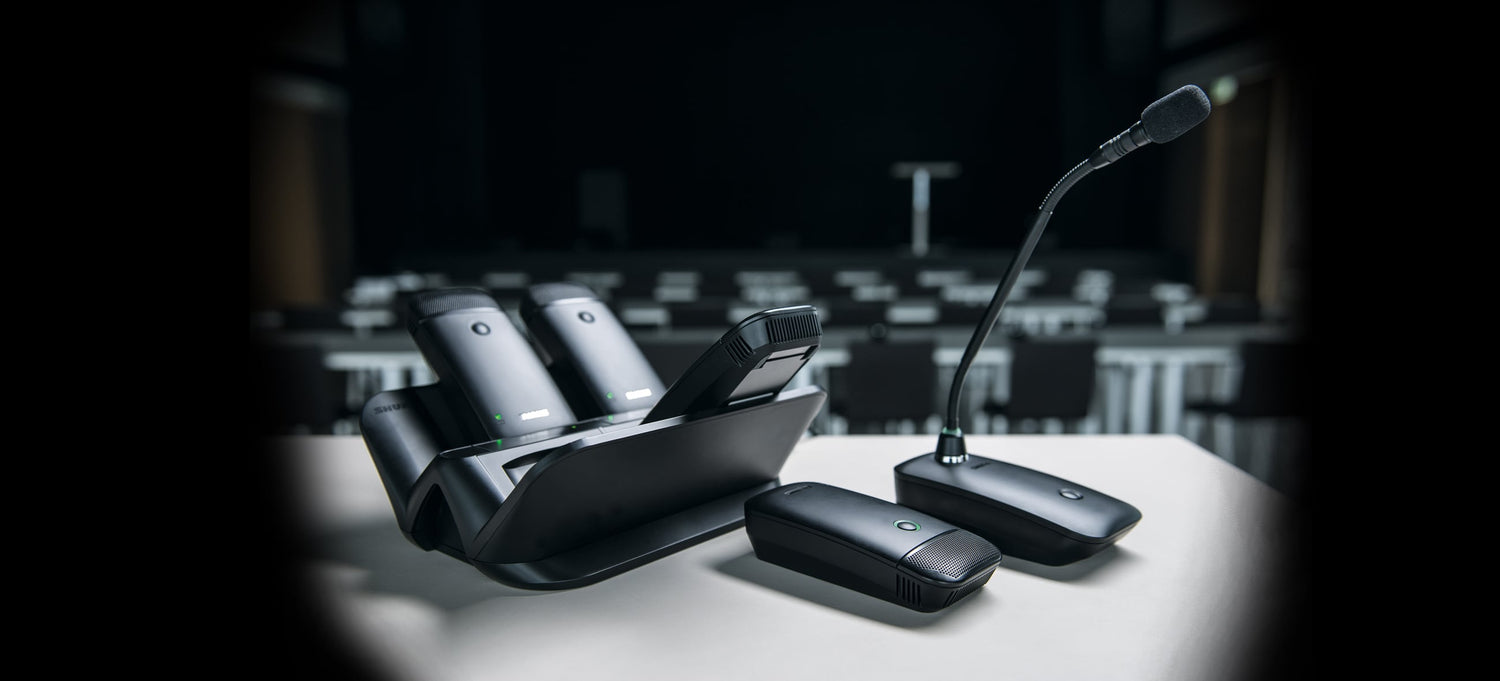

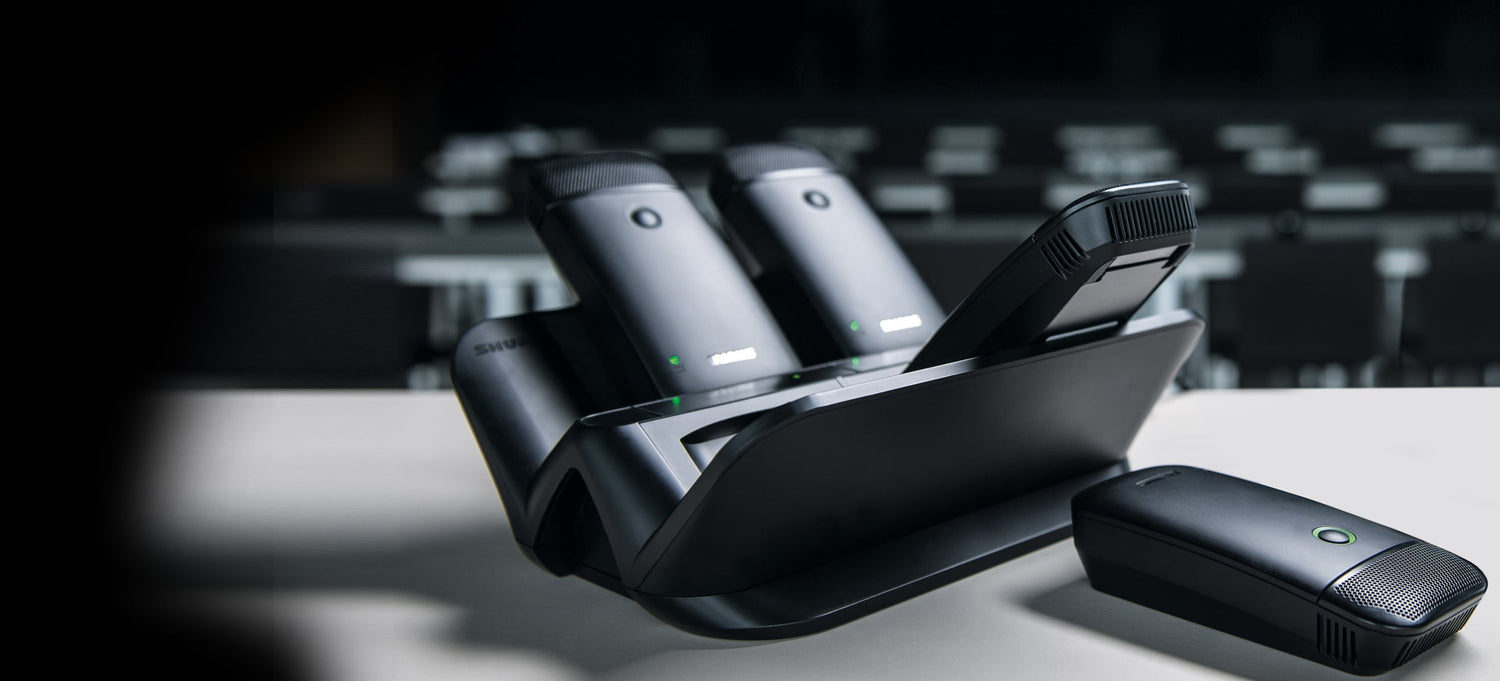

The SBC450-US provides docked charging for up to four Shure ULXD6 boundary or ULXD8 gooseneck base transmitters fitted with the SB900B rechargeable battery, making it well suited to boardrooms, council chambers, and houses of worship running networked microphone systems. Fast charging keeps turnaround short: 15 minutes of charging provides about one hour of runtime, one hour reaches roughly 50 percent, and three hours reaches a full charge. When connected to a network, the charge status of each transmitter can be viewed remotely, and transmitter settings or firmware can be updated while docked using Shure Wireless Workbench or SystemOn software, or a third-party room control system. The unit measures 3.23 in. H x 8.83 in. W x 7.56 in. D and ships with the power supply, making it straightforward to integrate into equipment-room and rack installations.

Key Features

• Four Charging Bays — Charges up to four ULXD6 or ULXD8 transmitters equipped with the SB900B rechargeable battery in a single unit.
• Fast Charging — 15 minutes provides about one hour of runtime, one hour reaches roughly 50 percent, and three hours reaches a full charge.
• Networked Status Monitoring — Charge status of each docked transmitter can be viewed remotely when connected to a network.
• In-Dock Management — Transmitter settings and firmware can be updated while docked using Wireless Workbench, SystemOn, or third-party room control.
• Power Supply Included — Ships with its power supply for straightforward equipment-room and rack integration.
• Compact Footprint — A 4-bay format suits mid-size installed systems that do not need eight bays.

Typical Applications

• Boardroom
• Conference room
• Government space
• House of worship
• Auditorium
• Multi-purpose room

Technical Specifications

Frequently Asked Questions

Which transmitters does the SBC450-US charge?
It charges up to four Shure ULXD6 boundary or ULXD8 gooseneck base transmitters equipped with the SB900B rechargeable battery.

How fast does it charge?
About 15 minutes of charging provides one hour of runtime, one hour reaches roughly 50 percent, and three hours reaches a full charge.

Can I manage transmitters while they charge?
When networked, you can view charge status remotely and update transmitter settings or firmware in the dock using Shure Wireless Workbench or SystemOn, or through a third-party room control system.

Does it include a power supply?
Yes. This SBC450-US configuration ships with its power supply.

Should I choose the 4-bay or 8-bay?

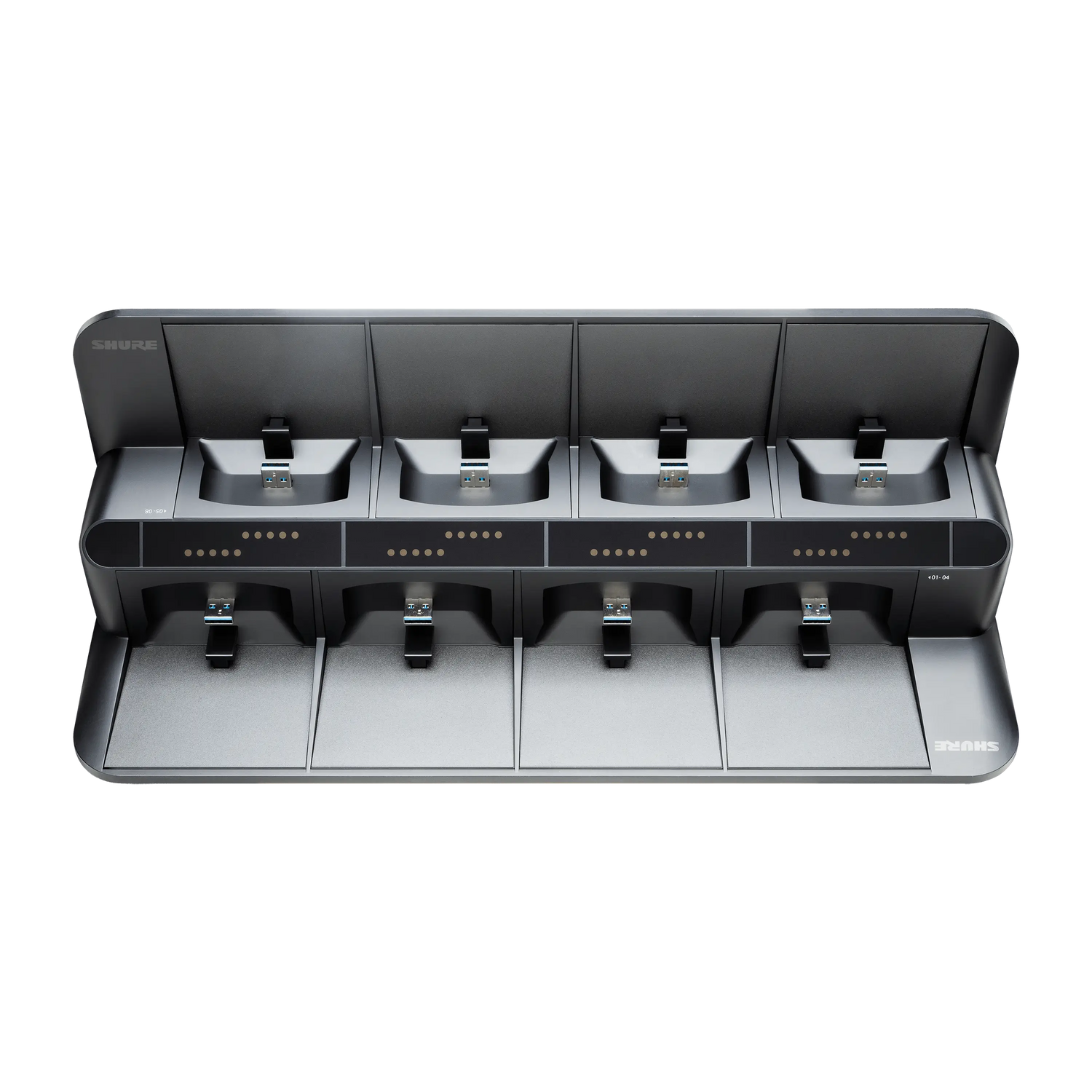

Choose the SBC450-US 4-bay for mid-size systems; the SBC850-US 8-bay suits larger installations that need to charge up to eight transmitters in one unit.

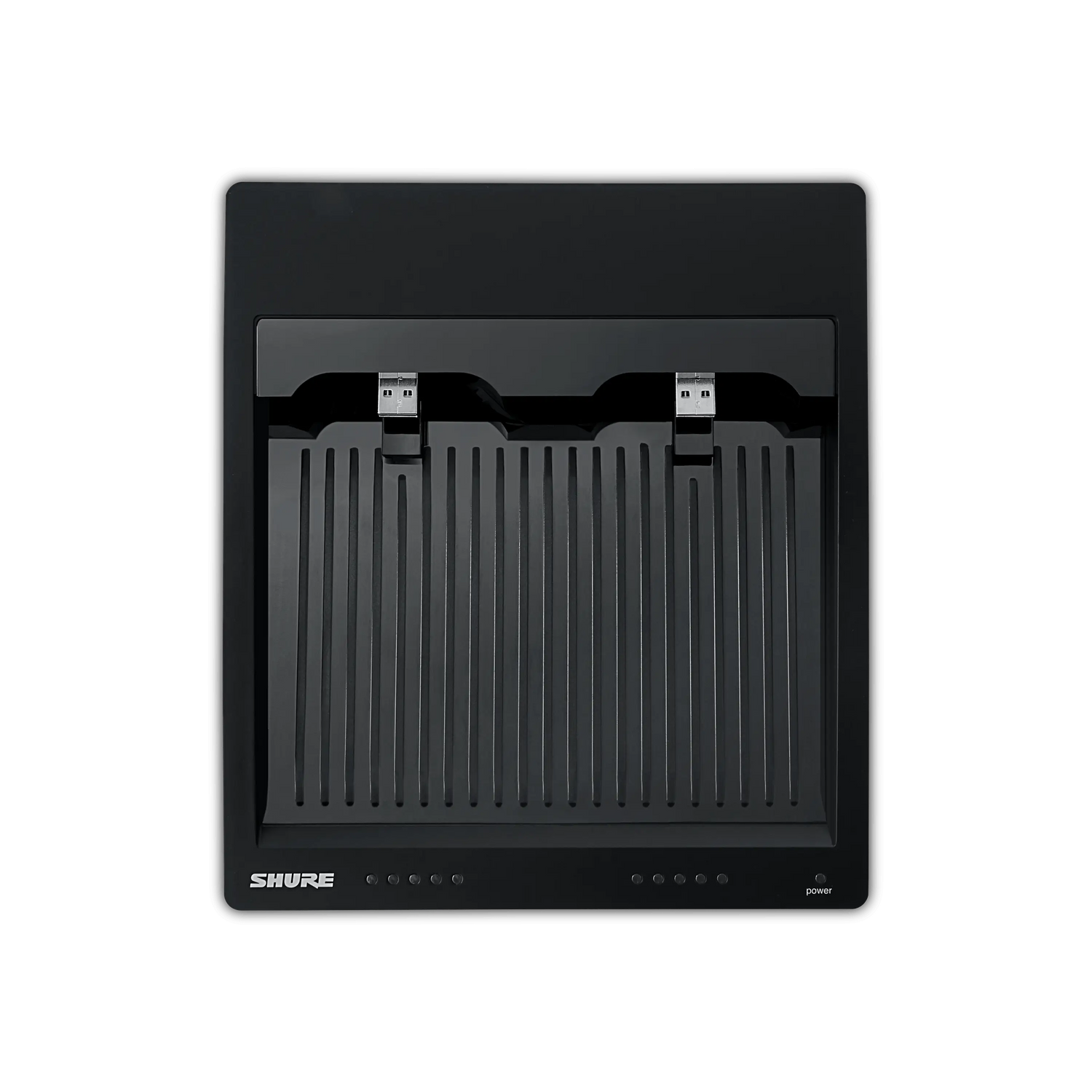

Related products: SBC850-US 8-Bay Charging Station and the SBC220 2-Bay Docking Charger.
