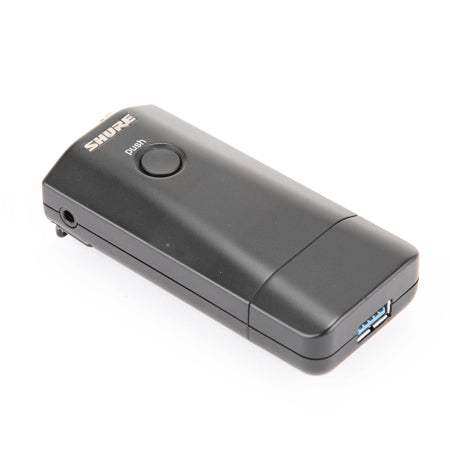

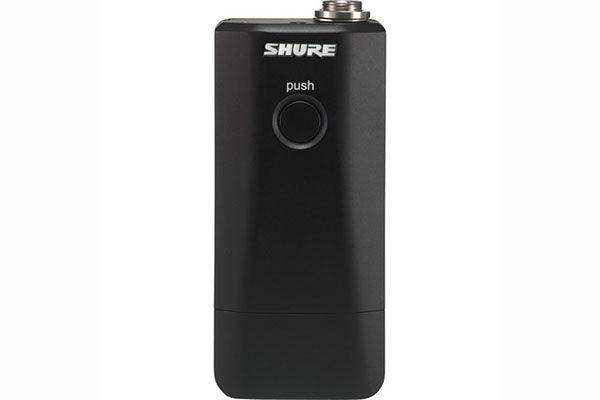

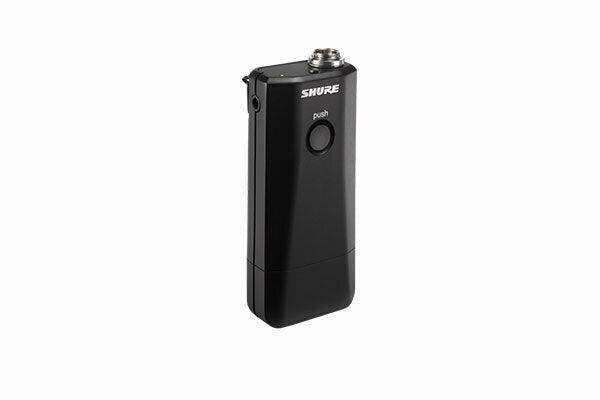

Shure MXW1/O=-Z10 Hybrid Bodypack Transmitter with Microphone (Z10: 1920 to 1930 MHz)

Save 29%
Shure SKU: MXW1/O=-Z10
No reviews

Sale price$624.00 Regular price$874.00


Spec Sheet

The MXW1 Bodypack Transmitter from Shure is a bi-directional bodypack transmitter designed for use with Shure's Microflex wireless conference system. It can be used in various environments for audio applications such as, boardrooms, corporate theaters, training/seminar centers, government, and more. It features an integrated omnidirectional microphone as well as a TA4M connector for an optional lavalier or headset mic. In addition to transmitting audio, the MXW1 receives a return channel of audio that can be monitored with an optional earphone through the unit's earphone output. The MXW1 protects your audio with 256-bit AES encryption, allowing for secure transmission.

  • For Microflex Systems

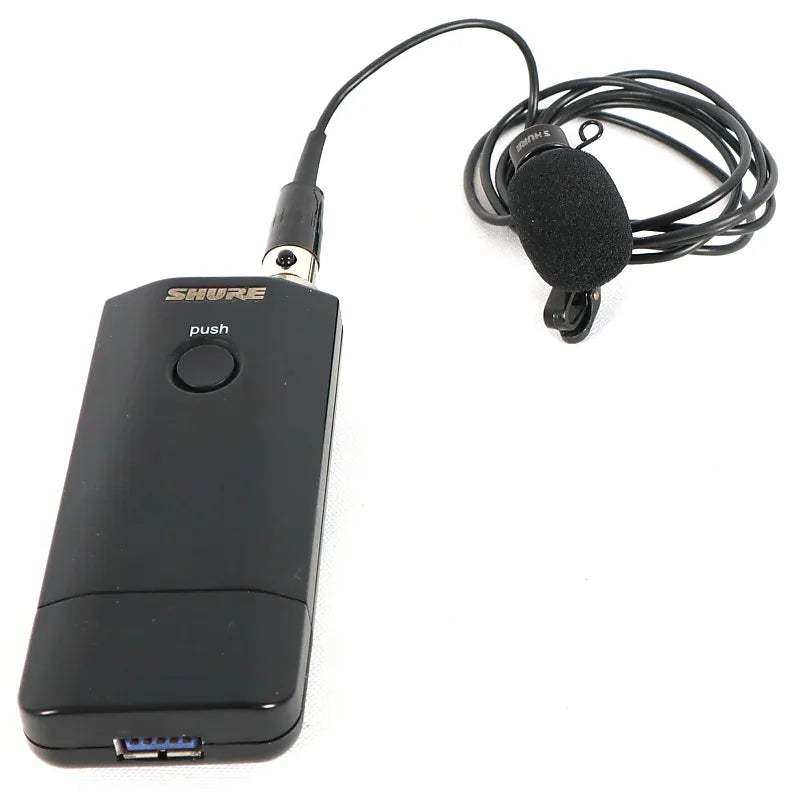

  • Integrated Omnidirectional Mic
  • Mic Input for Optional Mic
  • 20 Hz to 20 kHz Frequency Range
  • Bi-Directional Wireless
  • Earphone Output for Return Audio
  • AES 256-Bit Encryption
  • 160' Range of Operation
  • Built-In Rechargeable Battery
  • Includes Belt Clip
Wireless Technology Digital 1.9 GHz
RF Frequency Band 1920 to 1930 MHz
RF Channel Scanning Auto-Scan
Max Operating Range 164' / 50 m
Max Transmitters per Band 40
Built-In Recorder No
Timecode Support No
Latency 18 to 28 ms
Encryption AES 256
Modulation GFSK
Transmitter Type Bodypack with Microphone
RF Output Power 1 / 3 / 5 mW (50 mW Peak, Switchable)
Audio I/O 1 x TA4/Mini XLR 4-Pin Male Unbalanced Input (Lockable)
1 x 1/8" / 3.5 mm TRS Female Unbalanced Output
Included Cable Connector None
Muting Programmable Mute Switch
Audio Input Level -9 dBV
Auto-Level Control Yes
Gain Range -25 to +15 dB (1 dB Steps)
Signal Processing None
Frequency Response 65 Hz to 16 kHz
Antenna Internal
Power Requirements Battery, Bus Power (USB)
Battery Type 1 x Rechargeable (Included)
Battery Charging Time 2 Hours
Approx. Battery Life 9 Hours
USB/Lightning Connectivity 1 x USB-A (3.0 / 3.1/3.2 Gen 1, Bus Power, Charging)
Display & Indicators 1 x LED (Audio Level, Battery Status, Mute)
Housing Plastic
Dimensions 1.8 x 0.9 x 3.9" / 45 x 22 x 99 mm
Weight 3 oz / 85 g
Microphone Type Integrated
Sound Field Mono
Polar Pattern Omnidirectional
Frequency Range 20 Hz to 20 kHz
Packaging Info
Package Weight 0.47 lb
Box Dimensions (LxWxH) 6.8 x 4.7 x 3.3"
