Overview
Q-SYS™ Core 110f v2 Spec Sheet

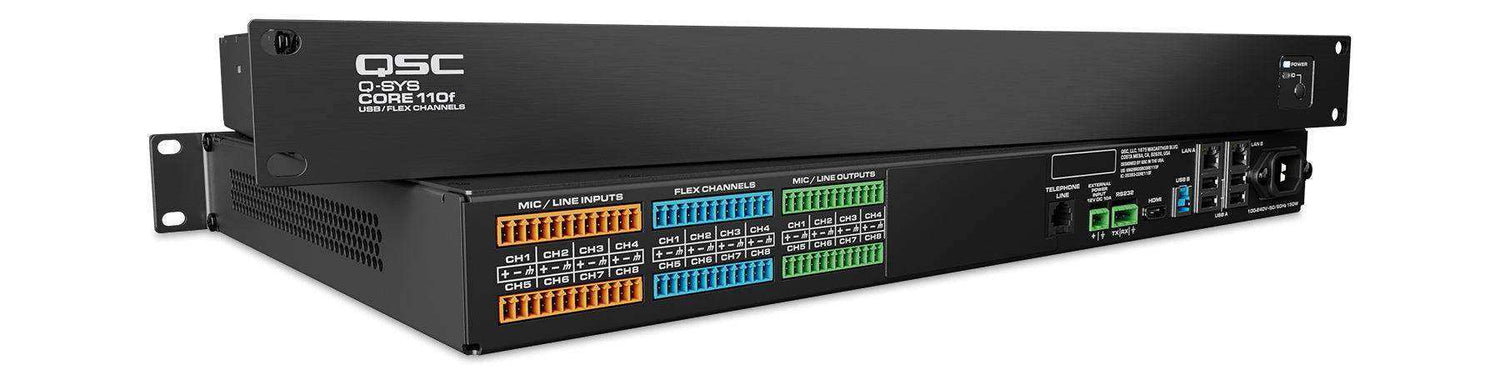

The Q-SYS™ Core 110f v2 processor provides a fully integrated audio, video and control solution for installations with a mixture of analog and network channels, supporting medium-sized rooms through the largest Enterprise scale deployments.
The Q-SYS™ Core 110f V2 processor is the latest addition to the Q-SYS™ Core family providing a fully integrated audio, video and control solution for small, single-room projects up to the largest Enterprise scale deployments.

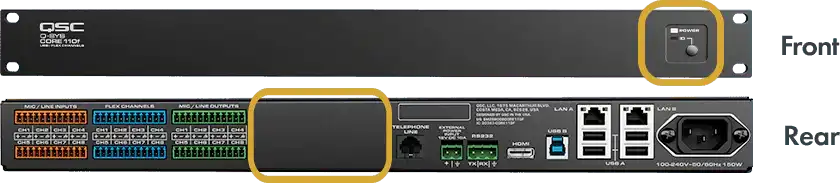

Feature Changes: To ease component supply chain challenges and continue a steady supply to our customers, Core 110f will no longer feature 16 x 16 GPIO. In addition, the OLED display and 2x USB Type A ports have been replaced with a simplified, functionally similar solution.
Features
Features & Benefits
- 128 networked audio channels (Q-LAN / AES67)
- 24 channels of analog I/O, including 8 configurable Flex channels
- 16x AEC processors
- Supports up to 4x Q-SYS NM-T1 network microphones
- Up to 32 x 32 Dante audio channels (8 x 8 included)
- USB AV bridging (16 x 16 audio + Q-SYS camera support)
- Full-featured Q-SYS Control engine (with optional feature license)
- External USB audio device host
- Up to 4x VoIP instances
Class leading I/O: Core 110f has 24 I/O + USB, POTS and VoIP simultaneously offering the best cost to I/O ratio in a single SKU, single chassis product available on the market.
8 Flex Channels: Nearly all the flexibility of a card-based DSP solution without the hassle of multiple SKU’s and custom ordering.
Extend your network I/O connectivity with QIO Series: QIO Series lets you quickly add network I/O connectivity to your Q-SYS systems where it’s most convenient. Each of the six models supports a different, specific connectivity type, from mic/line audio I/O to control (IR, Serial, or GPIO). Learn more.
True IT Software Integration: The Q-SYS Operating System is a true IT integrative solution that is free of the fixed hardware limitations seen in competing products. It allows for greater functionality such as Layer 3 routing, LDAP contact server integration, SNMP monitoring, as well as the latest software-based security for your AV system like cryptographically signed firmware updates, encrypted data transport and storage.
Suite of Software-Based Conferencing Technology applications: Built by Q-SYS from the ground up allowing for continued refinement, without any additional hardware. The suite includes next generation acoustic echo cancellation (AEC), multiple-instance SIP softphones, gain sharing, gating automixers and role-based access controls.
Unified Software Platform: The integrator has a single training investment in one software design tool rather than needing to learn several platforms to scale from small to large systems.
Software-based Dante is now supported on the Q-SYS Core 110f
Feature Tiers (Core 110f):8x8 | 16x16 | 32x32
Specs
| Model Core 110f | |
| Input Frequency Response | |
| 20Hz to 20kHz @ +21dBu | +0.05dB/-0.5dB |
| Input THD+N @ 1KHz | |
| @ +21 dBu Sensistivity & +21 dBu input | < 0.1% |
| @ +21 dBu Sensistivity & +10 dBu input | < 0.0015% |
| @ +10 dBu Sensistivity & +8 dBu input | < 0.0007% |
| @ -10 dBu Sensistivity & -10.5 dBu input | < 0.0006% |
| @ -39 dBu Sensistivity & -39.5 dBu input | < 0.007% |
| EIN (no weighting, 20Hz to 20kHz) | < -121dB |
| Input to Input Crosstalk @1kHz | >110dB Typical, 90dB Max |
| Input Dynamic Range | |
| @ +21 dBu Sensitivity | > 109.5dB |
| @ +10 dBu Sensitivity | > 106.4dB |
| @ -10 dBu Sensitivity | > 104.6dB |
| @ -39 dBu Sensitivity | > 104.6dB |
| Input Common Mode Noise Rejection | |
| @ +21 dBu Sensitivity | |
| @ +10 dBu Sensitivity | 56.5 |
| @ -10 dBu Sensitivity | 73.2 |
| @ -39 dBu Sensitivity | 63.2 |
| Input Impedance (balanced) | 5K Ohms Nominal |
| Input Sensitivity Range (1dB Steps) | -39 dBu min to +21 dBu max |
| Phantom Power | +48v DC, 10mA per input max |
| Sampling Rate | 48kHz |
| A/D – D/A Converters | 24-bit |
| Overall Dimensions/Weight | Device Height: 44 mm (1.75 in) Device Width: 483 mm (19 in) Device Depth: 282.5 mm (11.12 in) Device Weight: 5 kg (11 lb) Shipping Height: 152 mm (6 in) Shipping Width: 584 mm (23 in) Shipping Depth: 356 mm (14 in) Shipping Weight: 5.6 kg (12.4 lb) |
| Output Frequency Response | |
| 20Hz to 20kHz @ all settings | +0.2/-0.5 dB |
| Output THD | 0.003%, +10 dBu Max output level |
| Output Crosstalk @1khZ | >100dB Typical, 90dB max |
| Output Dynamic Range | >108dB |
| Output Impedance (balanced) | 220 0hms |
| Output Level Range : (1dB Steps) | -39 dBu min to +21 dBu max |
| USB B | |
| Bit Depth | Selectable 16-bit, 24-bit |
| Number of Channels | up to 16 × 16 |
| Sample Rate | 48kHz |
| Environmental | |
| Power Consumption | 60 watts, typical. 120 watts max |
| BTU/Heat load: | 205 BTU/Hour |
| General | |
| Compliance | FCC Part 15B (USA), FCC part 68 / TIA-968-B (USA), JATE (Japan), AS/ACIF S002 (Australia), PTC200 (New Zealand), ES203 021 (Europe), ANATEL Resolution 473 (Brazil), NOM-151-SCTI (Mexico), PSTN01 (Taiwan), Industry Canada CS-03 (Canada), CE marked (Europe), UL and C-UL listed (USA & Canada), RCM (Australia), EAC (Eurasian Customs Union) & RoHS Directive (Europe) |
