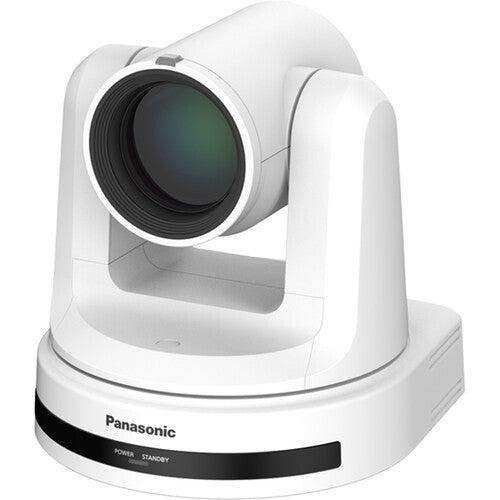

Panasonic AW-UE20W/K Pro 4K 3G-SDI/HDMI/IP/USB PTZ Camera with 12x Optical Zoom
Panasonic AW-UE20W/K Pro 4K 3G-SDI/HDMI/IP/USB PTZ Camera with 12x Optical Zoom
Roll over image to zoom in Click on image to zoom
Panasonic AW-UE20W/K Pro 4K 3G-SDI/HDMI/IP/USB PTZ Camera with 12x Optical Zoom
Panasonic AW-UE20W/K Pro 4K 3G-SDI/HDMI/IP/USB PTZ Camera with 12x Optical Zoom
Product Questions? Ask Our Experts!
Tel: 888.230.3661 sales@creationnetworks.net Contact us today for quantity & package discounts!

Panasonic AW-UE20W/K Pro 4K 3G-SDI/HDMI/IP/USB PTZ Camera with 12x Optical Zoom

Panasonic SKU: AW-UE20KP
No reviews

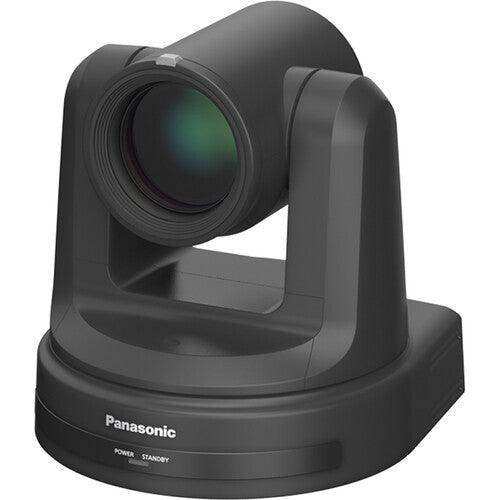

Model: Black
Price:
$1,895.00

Description

The AW-UE20 3G-SDI/HDMI/IP/USB PTZ Camera with 12x Optical Zoom from Panasonic provides a variety of options for your conference room, house of worship, or education locations that require high-quality 4K30 video output and recording. The camera features a 1/2.8" MOS sensor, 4K30 HDMI and IP streaming output, 1080p 3G-SDI output, USB webcam output, mic/line audio input, and serial control. When connected to the Internet, this IP camera allows you to control PTZ actions and monitor the surveillance area from a remote location via a Web browser.

Equipped with a 3.9 to 46.8mm zoom lens and 12x optical zoom, this PTZ camera enables you to zoom in on activity in the monitoring area for a closer look. Other features include auto white balance, RS-232/RS-422 serial control, LAN control, UVC communication via USB, 170° panning range, -30 to 90° tilt range, H.265/H.264/MJPEG video compression, and RTSP/RTMP streaming. The camera also supports mic and line audio input, allowing you to capture and embed audio within the video signal. It is also PoE+ compatible, allowing you to power the unit using only the single LAN cable rather than adding additional power adapter cables.

  • 1/2.8" MOS sensor with 12x optical zoom
  • Video output up to 4K30 via HDMI and IP and up to 1080p60 via 3G-SDI and USB for a reliable live video production workflow
  • Supports PoE+ (Power-over-Ethernet+) for lower installation costs
  • The camera can be used as a webcam on a computer using USB and UVC communication
  • Using an IP browser, the camera can be controlled from a remote location and IP video monitoring, and remote camera control can be performed from a computer or mobile terminal such as a smartphone or tablet, enabling easy operations
  • The camera also supports audio input, embedding and encoding, and audio output to IP is also supported via H.264/H.265/MJPEG
  • Compatible with existing FEC-40 wall mounts

Panasonic AW-UE20 Specs

 Imaging
Image Sensor 1/2.8"-Type MOS
Horizontal Resolution (TV Lines) 1400 TV Lines
Sensor Resolution Effective: 8.46 Megapixel
Built-In ND Filter None
Focus Control Autofocus
Manual Focus
Exposure Control
Shutter Type Electronic Rolling Shutter
Shutter Speed 1/16000 to 1 Second
Gain 0 to 42 dB
Minimum Illumination 0.4 Lux at 1/30 Shutter Speed
White Balance Presets: ATW, Auto
Lens
Focal Length 3.9 to 46.8mm
Optical Zoom Ratio 12x
Max Digital Zoom 4x
Field of View Horizontal: 71 to 6°
Vertical: 43 to 3°
Diagonal: 79 to 7°
Maximum Aperture f/1.6 to 2.8
Video Capture
External Recording Modes 4:4:4 8-Bit via HDMI
3840 x 2160 at 25/29.97 fps
1920 x 1080p at 25/29.97/50/59.94 fps
1920 x 1080i at 50/59.94 fps
1280 x 720 at 50/59.94 fps
SDI/BNC / USB
1920 x 1080p at 25/29.97/50/59.94 fps
1920 x 1080i at 50/59.94 fps
1280 x 720 at 50/59.94 fps
Audio Recording 2-Channel 16-Bit 48 kHz AAC LC Audio
Broadcast Output NTSC/PAL
IP Streaming H.264, H.265, MJPEG, RTMP, RTMPS, RTP, RTSP, TCP, UDP
3840 x 2160 at 5.00p, 10p, 14.99p, 25p, 29.97p
1920 x 1080 at 5.00p, 10p, 14.99p, 25p, 29.97p, 50p, 59.94p
1280 x 720
640 x 360
Control
Move Speed Pan: 0.1 to 100°/sec
Tilt: 0.1 to 100°/sec
Movement Range Pan: 340° (-170 to 170°)
Tilt: 120° (-30 to 90°)
Supported Control Protocols IP
RS-232
RS-422
Interface
Video I/O 1 x BNC (3G-SDI) Output
1 x HDMI Output
1 x USB-B 2.0 Output
1 x RJ45 (NDI) Output
Audio I/O 1 x 1/8" / 3.5 mm TRS Stereo Mic/Line Input
Other I/O 1 x RJ45 (LAN) Input
1 x Mini-DIN 8-Pin (RS-232) Input
1 x Mini-DIN 8-Pin (RS-232) Output
1 x RJ45 (RS-422) Output
Power
PoE Support PoE+ 802.3at
Power I/O 1 x Barrel (10.8 to 13.2VDC) Input
Power Consumption Device: 1.3 A
PoE: 0.4 A
Environmental
Operating Temperature 32 to 104°F / 0 to 40°C
Storage Temperature -4 to 122°F / -20 to 50°C
Operating Humidity 20 to 90%
General
OS Compatibility Windows 10 to 11 (32/64-Bit)
macOS 10.11 to 10.15
*As of December, 2022: Check with manufacturer for the most up-to-date compatibility
Certifications FCC Part 15 Class A
*as per Manufacturer
Sound Level NC55 (at Full Speed)
Dimensions (W x H x D) 6.5 x 6.9 x 6.9" / 165.1 x 176.2 x 176.1 mm
Weight 4.2 lb / 1.9 kg
Packaging Info
Package Weight 8.965 lb
Box Dimensions (LxWxH) 13.1 x 10.8 x 9.9"
