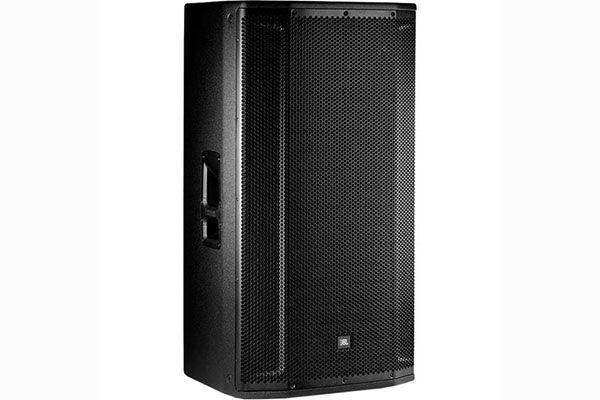

JBL SRX835P 15" Three-Way Bass Reflex Self Powered System

Availability: Call for Availability
Availability: Direct Ship
JBL SKU: SRX835P
No reviews
Price:
$2,049.00 $2,557.86

Description

The JBL SRX835P 15" Three-Way Bass Reflex Self Powered System is suitable for live performance, mobile and fixed DJ, sound system rental, touring, and permanent installation applications. Using JBL Premium Transducers, 2000W peak of Crown Class-D Drivecore Amplification, and a full user configurable DSP system with HiQnet network control (via Ethercon connection to third party router) and 50 JBL engineered application presets, the system can deliver a frequency response of 41 to 20,000 Hz (-3 dB) (-3 dB) and a maximum SPL of 137 dB.

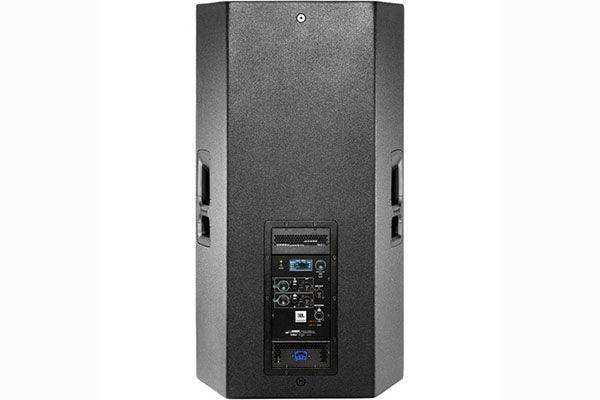

The rear panel of the speaker features a power button with LED indicator, a pair of balanced XLR/TRS combo input connectors, an LCD display screen with master encoder knob and back button for accessing presets, a pair of XLR-3M output connectors for sending to additional speakers, an XLR-3M mix output connector for sending audio out to an external source, and an Ethercon connector with LINK and DATA for network control via standard Ethernet cable to a third party router for iOS and Android mobile remote control.

PA Speaker
Configuration Active 3-Way
Total Power Capacity 2000 W Peak
1500 W RMS
Amplifier Class Class-D
Performance
Frequency Response 41 Hz to 20 kHz -3 dB
Maximum SPL 137 dB
Coverage Angle 60° H x 40° V
Gain Range Line Input:
21 dB
Aux Input:
3 dB
Mic Input:
45 dB
Line Input:
20 dBu
Aux Input:
8 dBu
Mic Input:
-4 dBu
I/O Impedance Input:
40 Kilohms (Balanced)
20 Kilohms (Unbalanced)
Connectivity
Audio I/O 2 x Combo XLR-1/4" TRS Input
2 x XLR 3-Pin Male Output
1 x XLR 3-Pin Mix Output
Signal Processing
Crossover Low-Pass:
330 Hz
High-Pass:
2.4 kHz
Power
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Current Consumption 120 VAC:
2.2 A (1/8 Power)
5.6 A (1/3 Power)
Physical
Mounting 1 x 1.4" / 36 mm Pole Socket
12 x M10
Handles 2
Cooling Fan (Variable Speed)
Construction Material Perforated Metal Grille, Plywood
Dimensions 38.7 x 21.4 x 18.7" / 98.4 x 54.4 x 47.6 cm
Weight 85 lb / 38.6 kg
