JBL SRX812P 12" Two-Way Bass Reflex Self Powered System
JBL SRX812P 12" Two-Way Bass Reflex Self Powered System is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or just need expert advise?
Give us a call at 1-888-230-3661 or LiveChat below.
Purchasing 1 or 100, there may be greater savings beyond the advertised price.

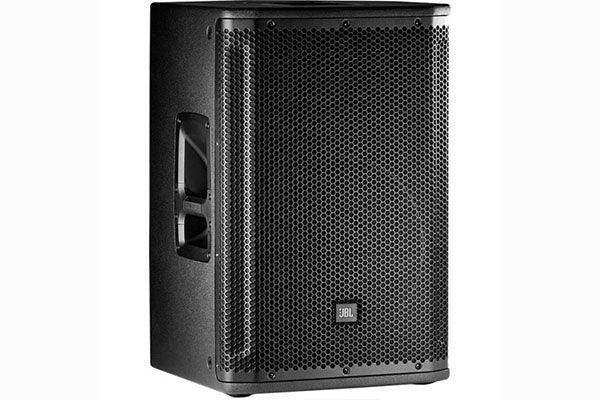

JBL SRX812P 12" Two-Way Bass Reflex Self Powered System

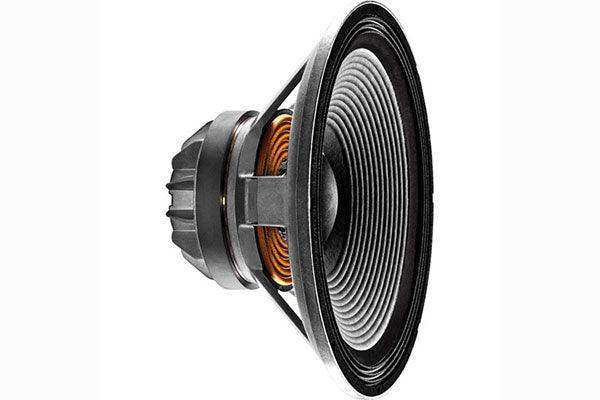

The JBL SRX812P 12" Two-Way Bass Reflex Self Powered System is suitable for live performance, mobile and fixed DJ, sound system rental, touring, and permanent installation applications. The speaker can also be placed on its side and used as a stage monitor. Using JBL Premium Transducers, 2000W peak of Crown Class-D Drivecore Amplification, and a full user configurable DSP system with HiQnet network control (via Ethercon connection to third party router) and 50 JBL engineered application presets, the system can deliver a frequency response of 48 to 20,000 Hz (-3 dB) (-3 dB) and a maximum SPL of 136 dB.

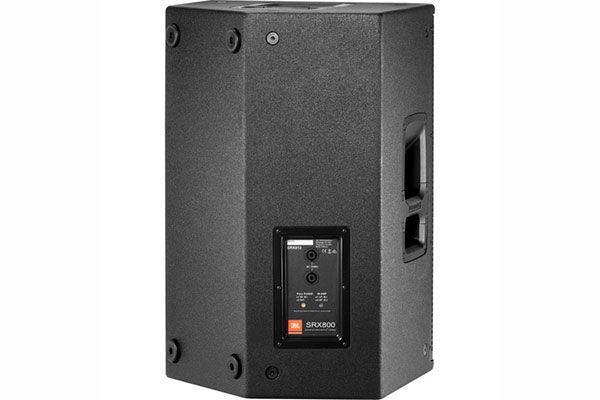

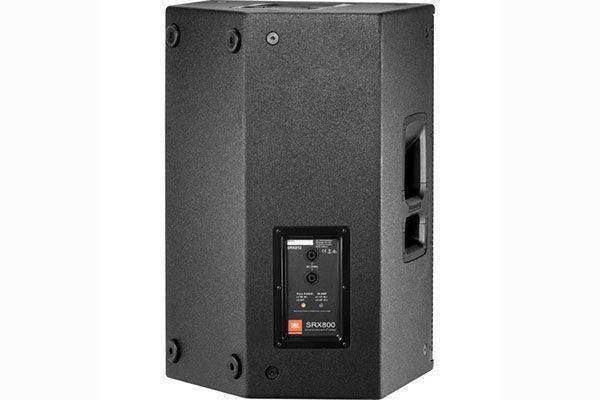

The rear panel of the speaker features a power button with LED indicator, a pair of balanced XLR/TRS combo input connectors, an LCD display screen with master encoder knob and back button for accessing presets, a pair of XLR-3M output connectors for sending to additional speakers, an XLR-3M mix output connector for sending audio out to an external source, and an Ethercon connector with LINK and DATA for network control via standard Ethernet cable to a third party router for iOS and Android mobile remote control.
| Configuration | Active 2-Way |
| Total Power Capacity | 2000 W Peak 1500 W RMS |
| Amplifier Class | Class-D |
| Frequency Response | 48 Hz to 20 kHz -3 dB |
| Maximum SPL | 136 dB |
| Coverage Angle | 90° H x 50° V |
| Gain Range | Line Input: 21 dB Aux Input: 3 dB Mic Input: 45 dB Line Input: 20 dBu Aux Input: 8 dBu Mic Input: -4 dBu |
| I/O Impedance | Input: 40 Kilohms (Balanced) 20 Kilohms (Unbalanced) |
| Audio I/O | 2 x Combo XLR-1/4" TRS Input 2 x XLR 3-Pin Male Output 1 x XLR 3-Pin Mix Output |
| Crossover | 1.9 kHz |
| AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Current Consumption | 120 VAC: 2.2 A (1/8 Power) 5.6 A (1/3 Power) |
| Mounting | 2 x 1.4" / 36 mm Pole Socket 12 x M10 |
| Handles | 3 |
| Cooling | Fan (Variable Speed) |
| Construction Material | Perforated Metal Grille, Plywood |
| Dimensions | 25.1 x 16.3 x 16.9" / 63.8 x 41.5 x 42.9 cm |
| Weight | 58 lb / 26.4 kg |
