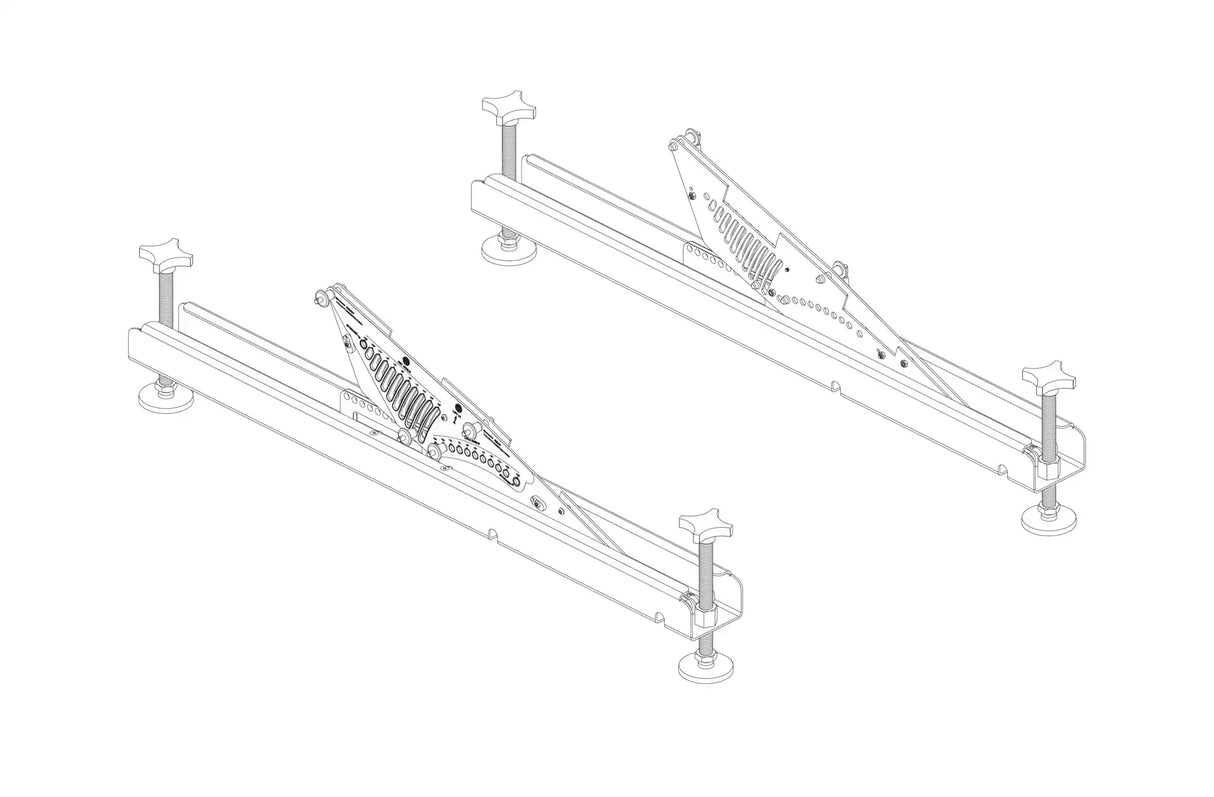

JBL Professional VTX A12 VT GND – Vertical Transporter Ground Stack Outrigger

The JBL VTX A12 VT GND is a precision-engineered ground stack outrigger designed to enhance the stability and flexibility of vertical transporter setups for VTX A12, VTX B28, and other compatible vertical transport systems. Ideal for touring, rental, and fixed installation applications, the VT GND allows for secure and adjustable positioning of vertical arrays, ensuring both safety and optimal performance during deployment.

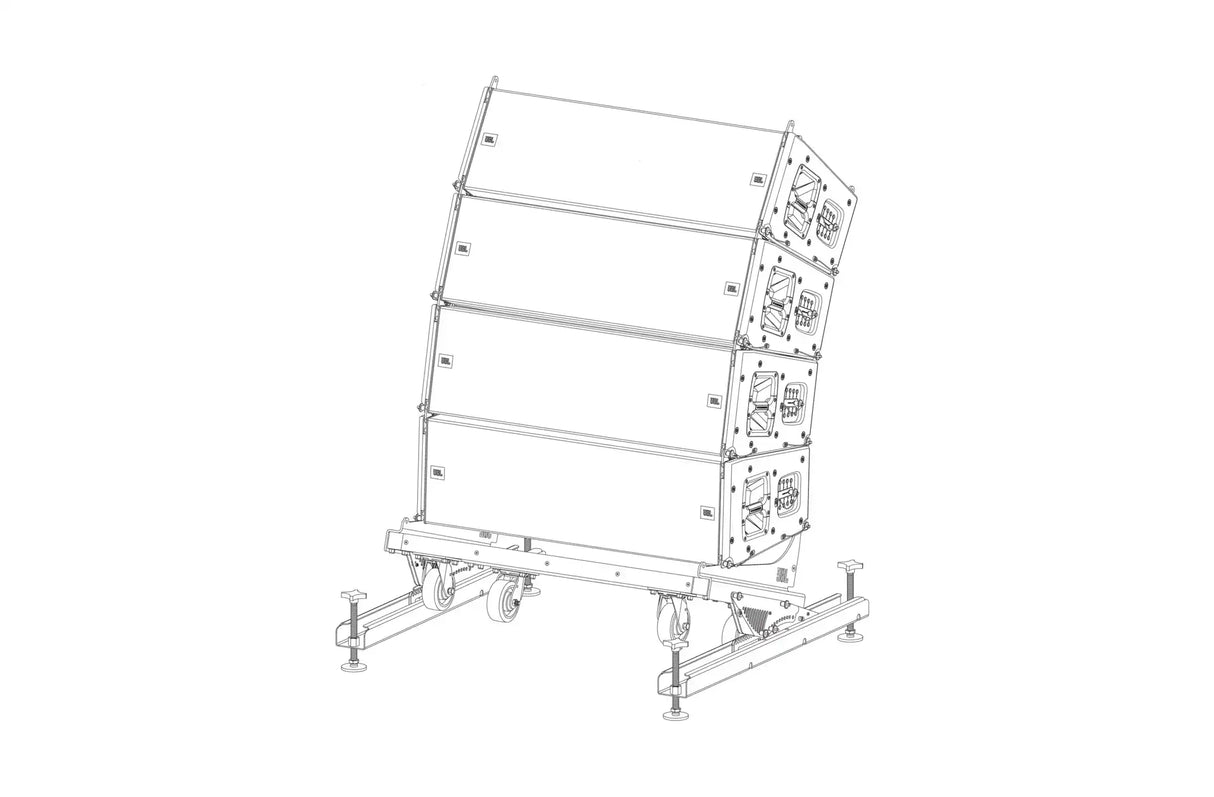

Constructed from high-grade materials, the VTX A12 VT GND features a compact and lightweight design, making it easy to transport, store, and integrate into a variety of stage setups. The system includes four screw jacks for precise height adjustment, allowing crews to adapt to different stage or floor conditions while maintaining the array’s intended coverage and orientation. Its innovative spring-based angle-set mechanism provides quick and accurate tilt adjustment, with a range of -15° to +5°, giving sound engineers full control over array direction and aiming.

The VTX A12 VT GND is built to complement JBL’s vertical transporters but can also be used with other compatible transporter systems, offering versatility and reliability for professional audio deployments. Note that the vertical transporter cart is sold separately, allowing for modular and flexible system configurations. With the VT GND, users can achieve secure, stable, and precise ground-stacked array setups, reducing setup time and enhancing overall safety without compromising performance.

Features:

• Outrigger system compatible with VTX A12 VT, VTX B28 VT, and other vertical transporters

• Four screw jacks for precise height adjustment

• Spring-based angle-set mechanism for fast, accurate tilt

• Adjustable tilt range: -15° to +5°

• Compact and lightweight design for easy transport and storage

• Enhances stability of ground-stacked vertical arrays

• Vertical transporter not included

Specifications Table:
