JBL Professional Three-way horn-loaded line array system (weather p...

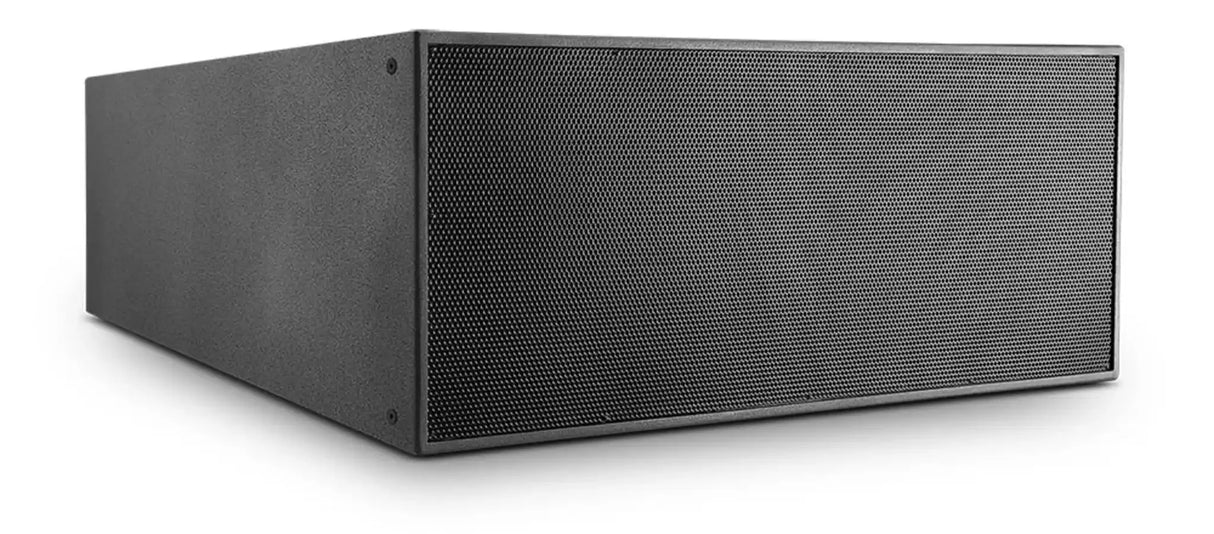

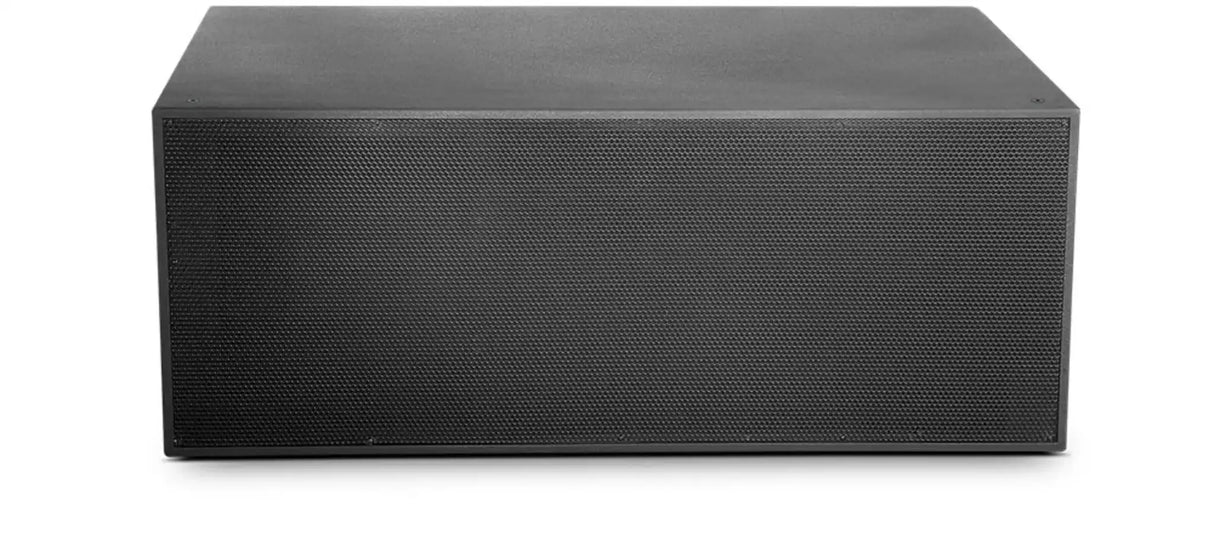

The JBL VLA901i is a high-performance three-way full-range loudspeaker designed for large-scale permanent installations requiring powerful, long-throw sound reinforcement. Part of the Variable Line Array (VLA) Series, the VLA901i is engineered to deliver high-impact audio at distances beyond the reach of traditional loudspeakers.

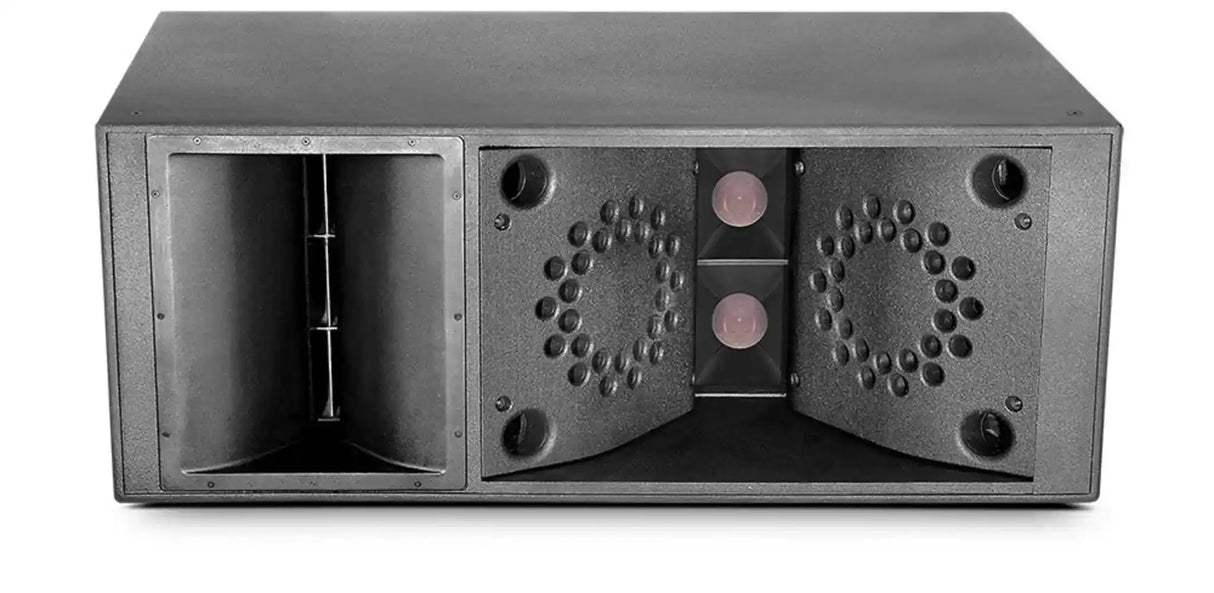

Equipped with dual 15" LF drivers, dual 8" MF drivers, and three 1.5" exit HF compression drivers, the VLA901i provides exceptional clarity, output, and coverage. With a 90° nominal horizontal dispersion, rugged DuraFlex™ finish, and comprehensive rigging points, the VLA901i offers versatility for line array configurations in demanding environments. Optional WRC and WRX weather-protected versions extend durability for outdoor and extreme conditions.
Features:
-
Three-way design: 2 × 15" LF, 2 × 8" MF, 3 × 1.5" HF
-
90° nominal horizontal coverage for wide, even sound distribution
-
Advanced Neodymium Differential Drive® transducers for reduced weight and maximum output
-
Comprehensive rigging points for line array configuration flexibility
-
Rugged 18/16 mm Baltic birch plywood enclosure with DuraFlex™ finish
-
Weather-resistant options available (WRC/WRX) for outdoor or extreme environments
Applications:
-
Stadiums & Arenas
-
Themed Entertainment Venues
-
Large Outdoor Installations
-
Houses of Worship
-
Performing Arts Facilities
Specifications Table:
| Specification | Details |
|---|---|
| Frequency Range (-10 dB) | 41 Hz – 20 kHz |
| Frequency Response (-6 dB) | 45 Hz – 19.5 kHz |
| Frequency Response (-3 dB) | 50 Hz – 19.2 kHz |
| Horizontal Coverage | 90° nominal (400 Hz – 16 kHz) |
| Vertical Coverage | Varies with array configuration |
| Maximum SPL (1m) | 146 dB (Preset: Flat) |
| LF Drivers | 2 × JBL 2265H, 15" Neodymium Differential Drive® |
| MF Drivers | 2 × JBL 2169H, 8" Neodymium Differential Drive® |
| HF Drivers | 3 × JBL 2432H, 1.5" exit compression, 3" voice coil |
| System Power Ratings (AES) | LF: 1000 W, MF: 400 W, HF: 160 W |
| Nominal Impedance | 4 ohms |
| Sensitivity (2.83V/1m) | LF: 99/96 dB, MF: 106/103 dB, HF: 106/109 dB |
| Enclosure | 18 & 16 mm Baltic birch plywood, DuraFlex™ finish |
| Suspension Attachments | 16 points, M10 threaded hardware (eyebolts not included) |
| Finish Options | Black (STD), Gray (WRC), Gray Fiberglass (WRX), custom colors |
| Grille | Powder-coated 14-gauge steel, foam backing (16-gauge stainless steel on WRX) |
| Weather Resistant Versions | WRC (sheltered outdoor), WRX (extreme/outdoor direct exposure) |
| Dimensions (H × W × D) | 528.3 × 1346.2 × 635.0 mm (20.8 × 53.0 × 25.0 in) |
| Net Weight | 91.2 kg (201 lbs) |
