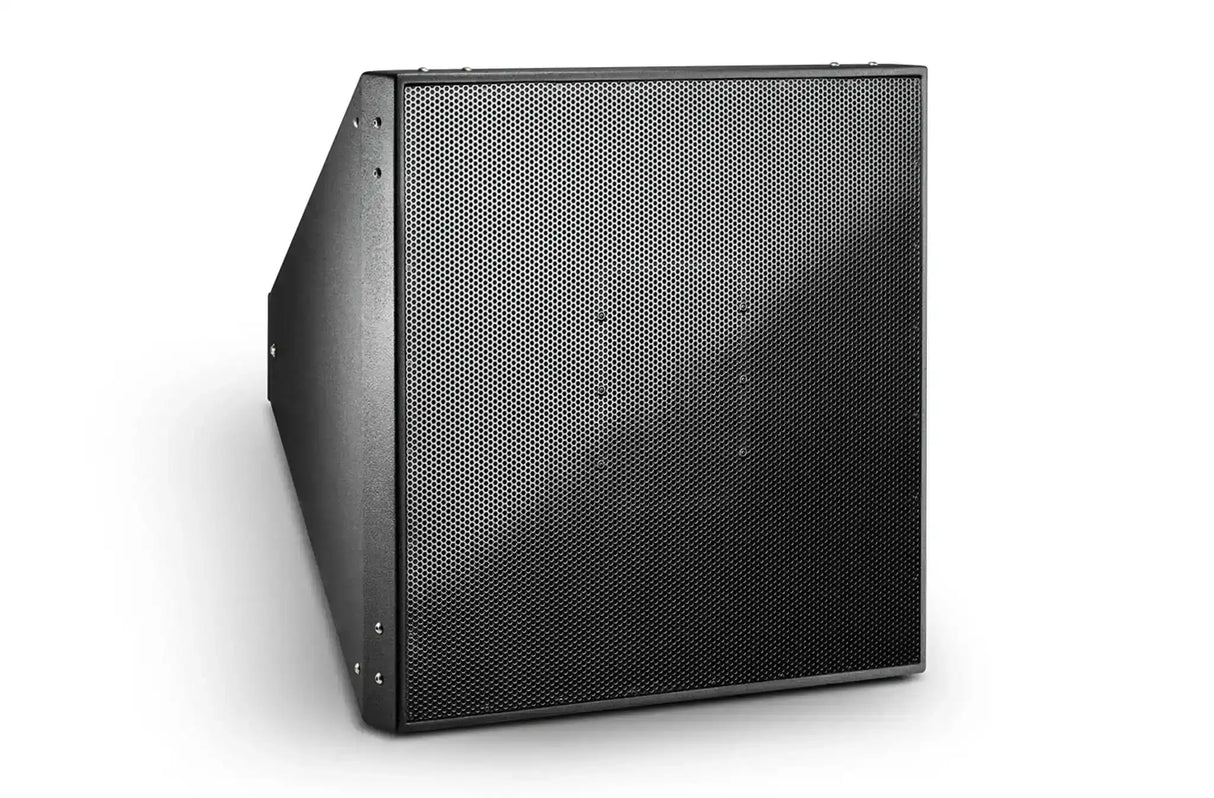

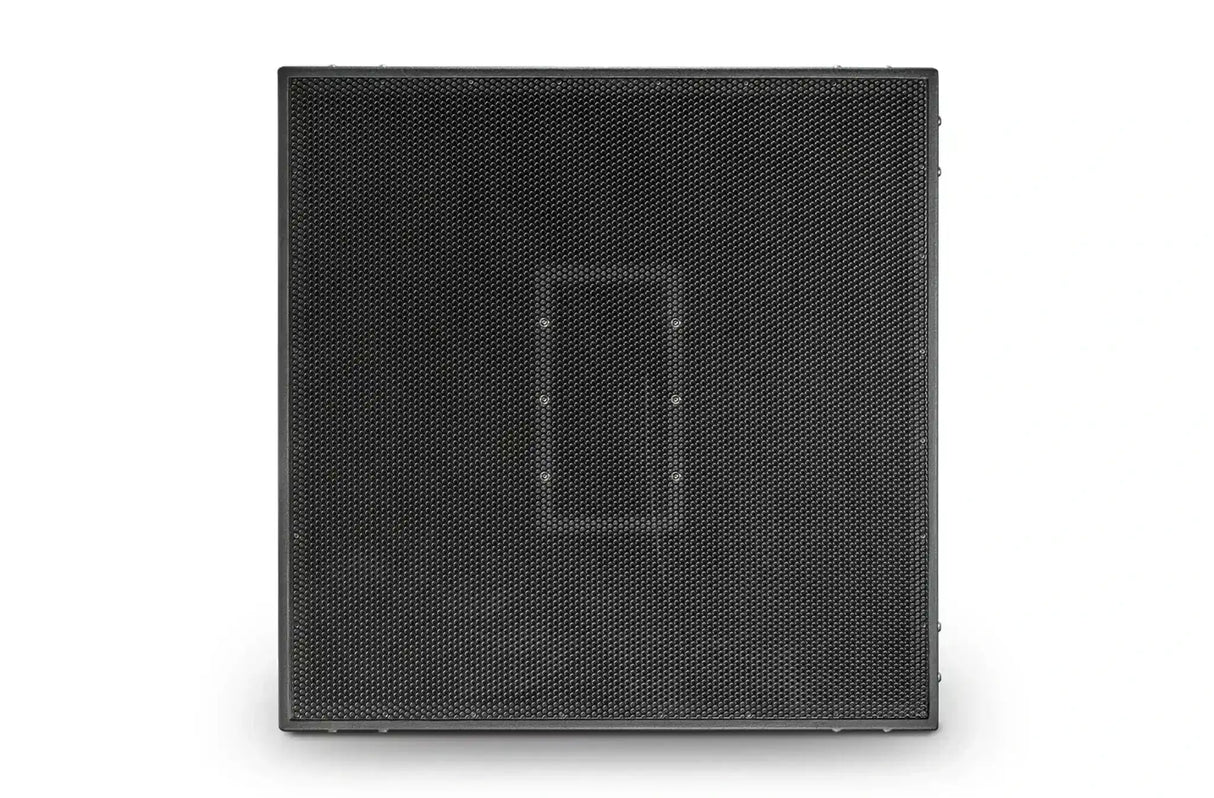

JBL PD764i Dual 8-inch 2-Way Horn-Loaded Speaker – 60° x 40° Precision Directivity

The JBL PD764i is a high-performance, dual 8-inch 2-way horn-loaded loudspeaker designed for professional audio applications where long-throw sound reinforcement and precision pattern control are essential. Engineered with JBL’s Precision Directivity™ technology, the PD764i delivers consistent high-impact output even at distances beyond the reach of conventional single-driver speakers. Each module achieves over 104 dB SPL continuous at 50 meters, making it an ideal choice for large-scale venues, distributed systems, or clustered arrays with other PD family modules.

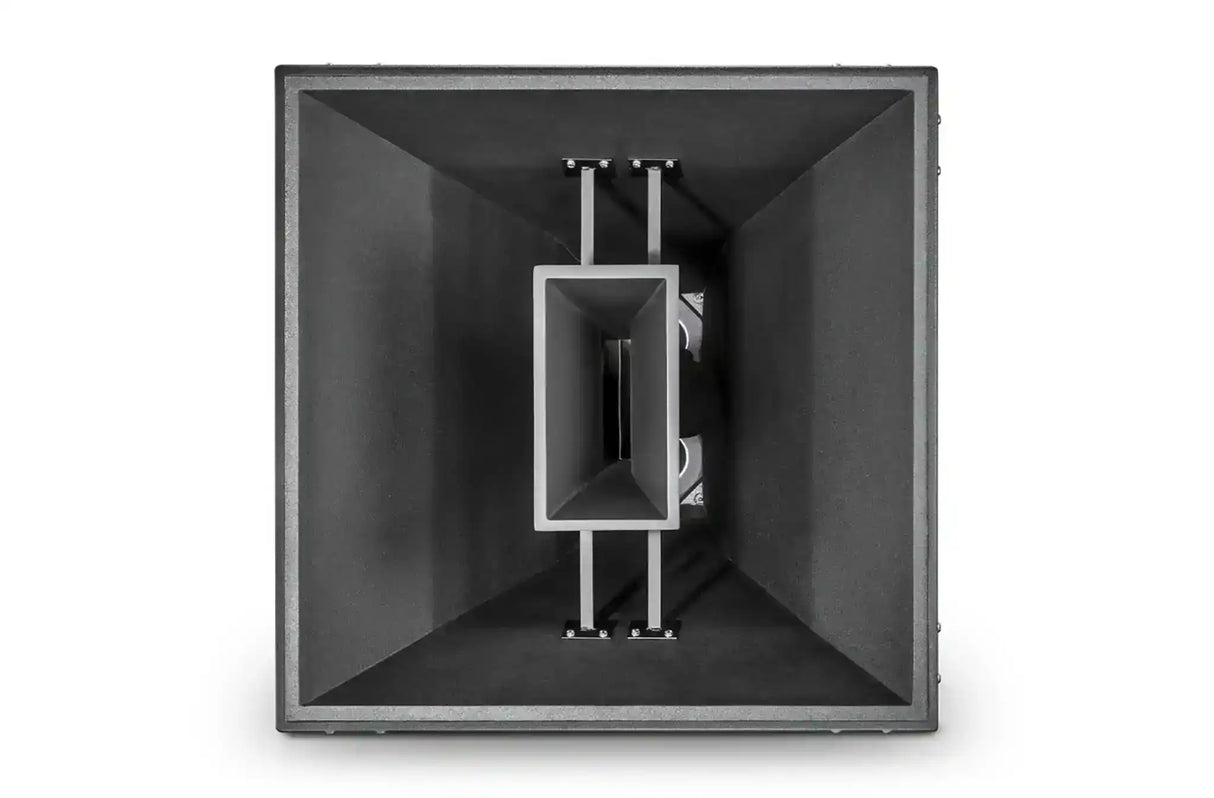

This loudspeaker combines advanced driver technology with innovative pattern control to provide a full and balanced sound across the coverage area. The dual CMCD-82H 8-inch horn-loaded midrange drivers and dual 2432H compression high-frequency drivers with 3-inch diaphragms deliver enhanced clarity and output, while the IFS™ (Interference Free Summation) dual HF module eliminates destructive interference and boosts output by up to 6 dB. Coaxial mid/high-frequency module layout improves mid-frequency arrayability, minimizes overall size, and maintains precise coverage down to 400 Hz.

The PD764i features a trapezoidal birch plywood enclosure with integrated rigging points, simplifying deployment in both horizontal and vertical orientations. Optional WRC/WRX weatherized versions are available for direct exposure to extreme environments, providing corrosion-resistant hardware, multiple grille layers, and IP55-rated protection. Custom DSP presets for Crown ITHD and IT4x3500HD amplifiers ensure optimal system tuning, making the PD764i a versatile and robust choice for demanding live sound and installation applications.

Features:

• 60° x 40° coverage pattern, ideal for vertical or horizontal array orientation

• IFS™ dual HF module eliminates destructive interference, increasing output by 6 dB

• Dual 8-inch CMCD-82H midrange drivers with dual 3-inch voice coils

• Dual 2432H 1.5-inch compression drivers for high-frequency clarity

• Pattern control maintained to below 400 Hz

• Coaxial mid/high-frequency module layout for improved arrayability

• Integrated rigging system with 52 suspension points for flexible deployment

• Custom DSP presets compatible with Crown ITHD and IT4x3500HD amplifiers

• Optional WRC/WRX versions for extreme weather protection and IP55 rating
