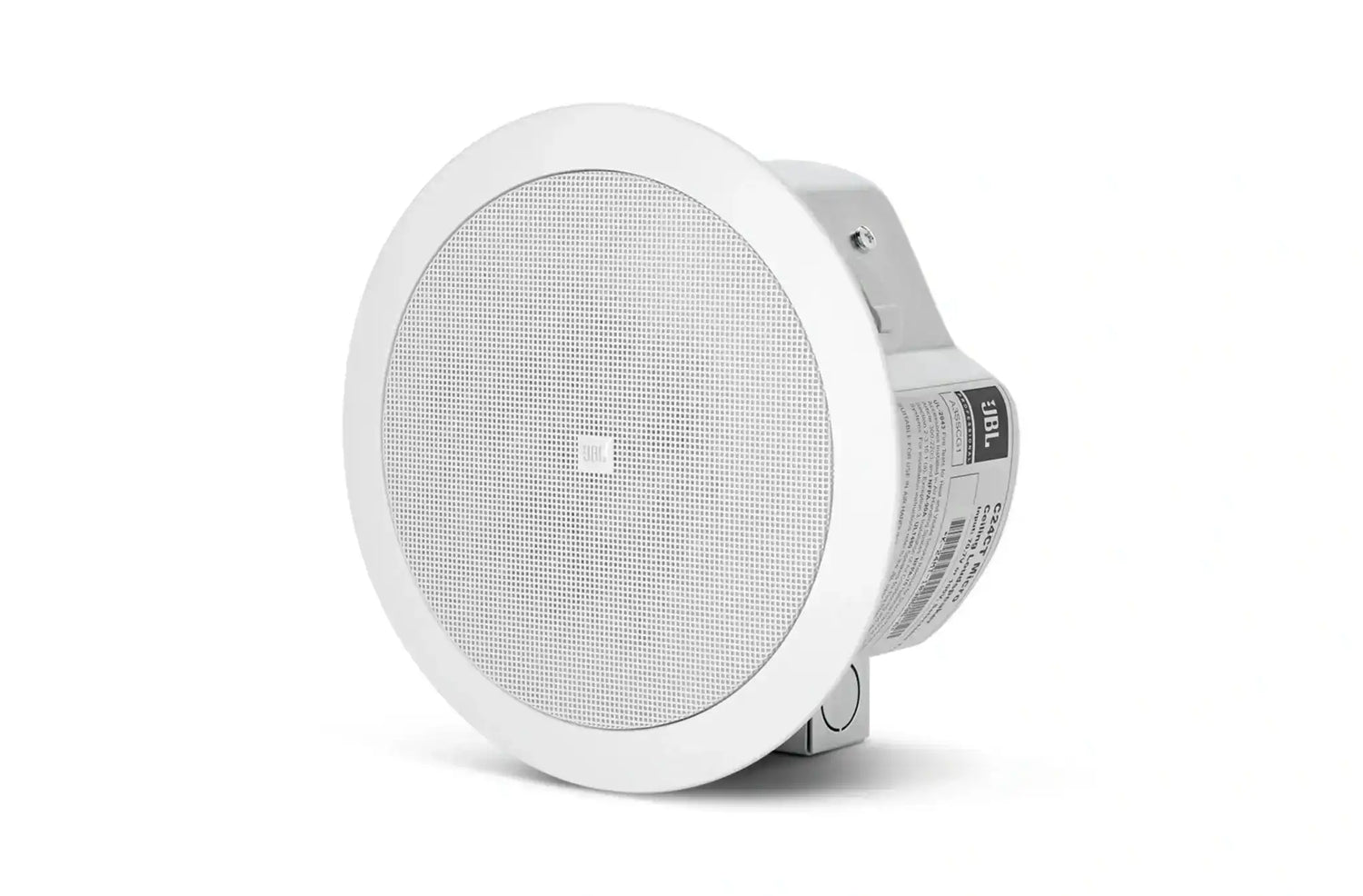

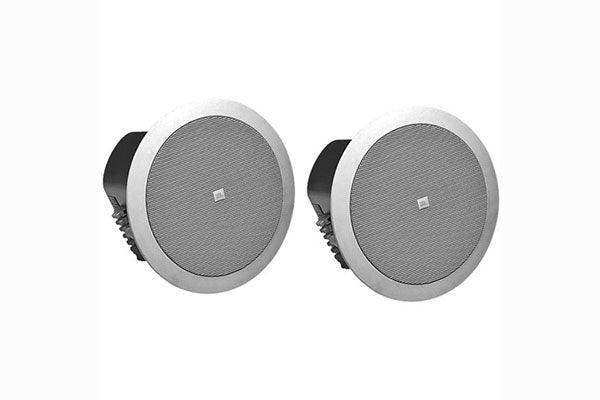

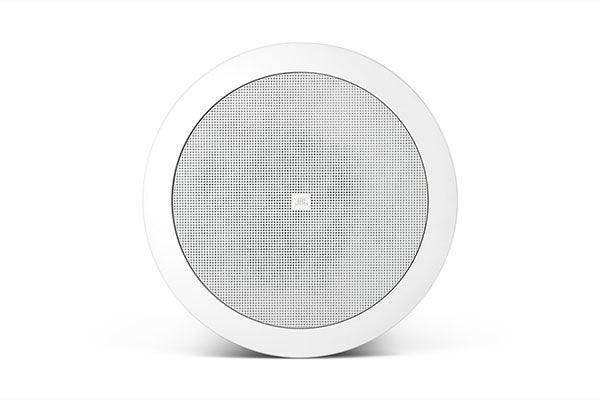

JBL Control 24CT MICRO Ceiling Speaker for use with 70/100V Audio Distribution (Pair)

$230.00
Shipping calculated at checkout.
JBL Professional  |  SKU: CONTROL 24CT MICRO

Shipping Availability*

Free Ground Shipping on Most Orders Over $250.00

Looking for the best price or just need expert advise? Give us a call at 1-888-230-3661 or LiveChat below. Purchasing 1 or 100, there may be greater savings beyond the advertised price.

(Sold as pair)

Background Music

The full, high-quality sound of the compact JBL Control 24CT Micro Ceiling Speaker System is ideal for medium-volume paging and background music applications including restaurants, professional offices, and retail. Installation is possible without ceiling access and the built-in voltage transformer allows for additional speakers and system flexibility.

Use the Control 24CT Micro with other high/mid response control contractor systems to achieve a more flexible system capable of mixing and matching zones without separate equalization. Low frequencies may be augmented using a Control Contractor subwoofer.

Features

  • Extremely wide 150° coverage.
  • Smooth frequency response.
  • Includes 9 W multitap transformer for
  • Shallow 4 in (100 mm) depth.
  • Packaged with grille, backcan and tile rails for fast

Specifications


Frequency Range 85 Hz - 25 kHz
Power Rating See transformer taps
Transformer Taps 9W, 4W, 2W, 1W (& 0.5 W taps @ 70V)
Crossover Frequency 3.5 kHz
Maximum SPL (1m) 94 dB (top 70V/100V tap)
Sensitivity 86 dB (100 Hz - 10 kHz)
Coverage Angle 150° conical
Input Connectors Screw-down terminals.

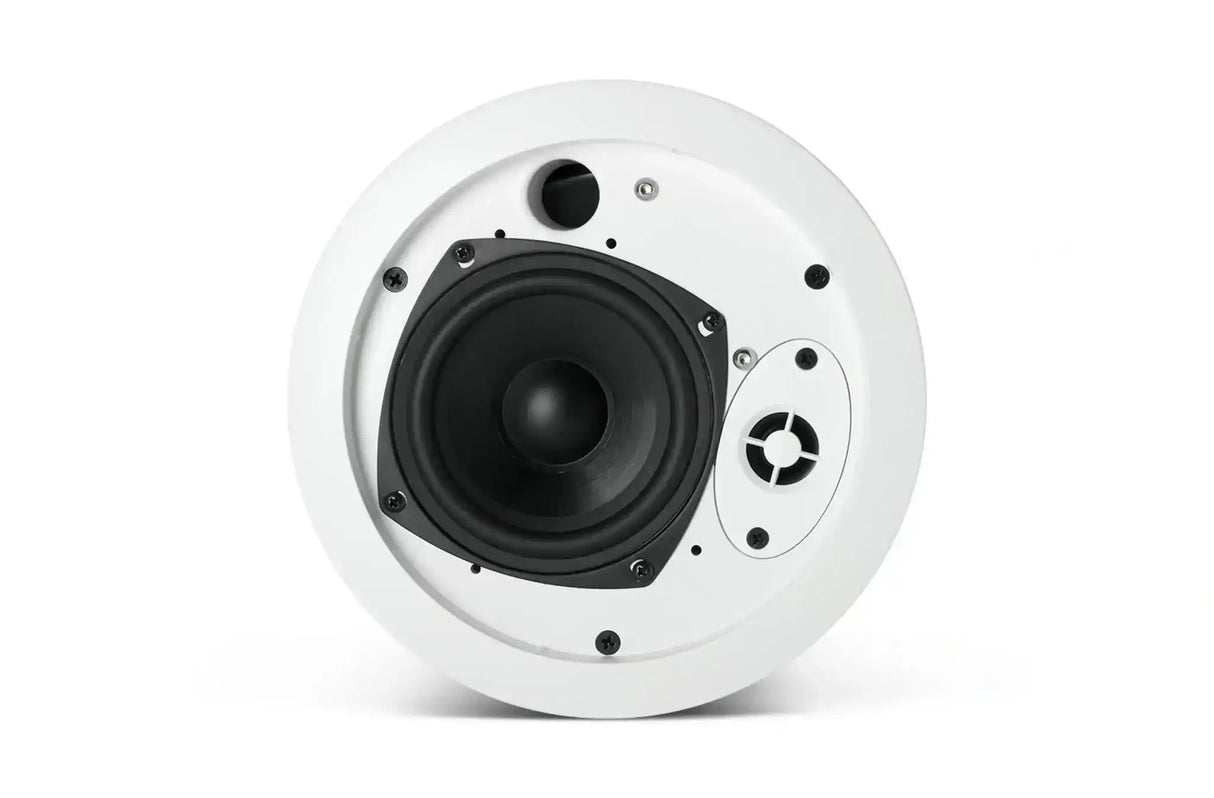

Drivers LF Driver: 115 mm (4.5 in)
HF Driver: 12 mm (0.5 in)
Color White
Safety Agency Suitable for use in air handling spaces per UL1480, UL2043, NFPA90 & NFPA 70. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.
Backcan formed steel (included "blind-mount")
Baffle/Rim Medium impact polystyrene, fire rated UL94V-O
Ceiling Cutout Size 167 mm (6.6 in) diameter (cardboard cutout template included)
Included Accessories C-shaped support backing plate 2 tile support rails (fits both 2 ft and 600 mm tiles) Cutout template, cardboard
Optional Accessories MTC-24TR trim ring for retrofit installations MTC-24NC optional new construction bracket, flat MTC-24MR optional mud ring construction bracket
Plenum Usage Yes, backcan included
