(Sold as a pair)

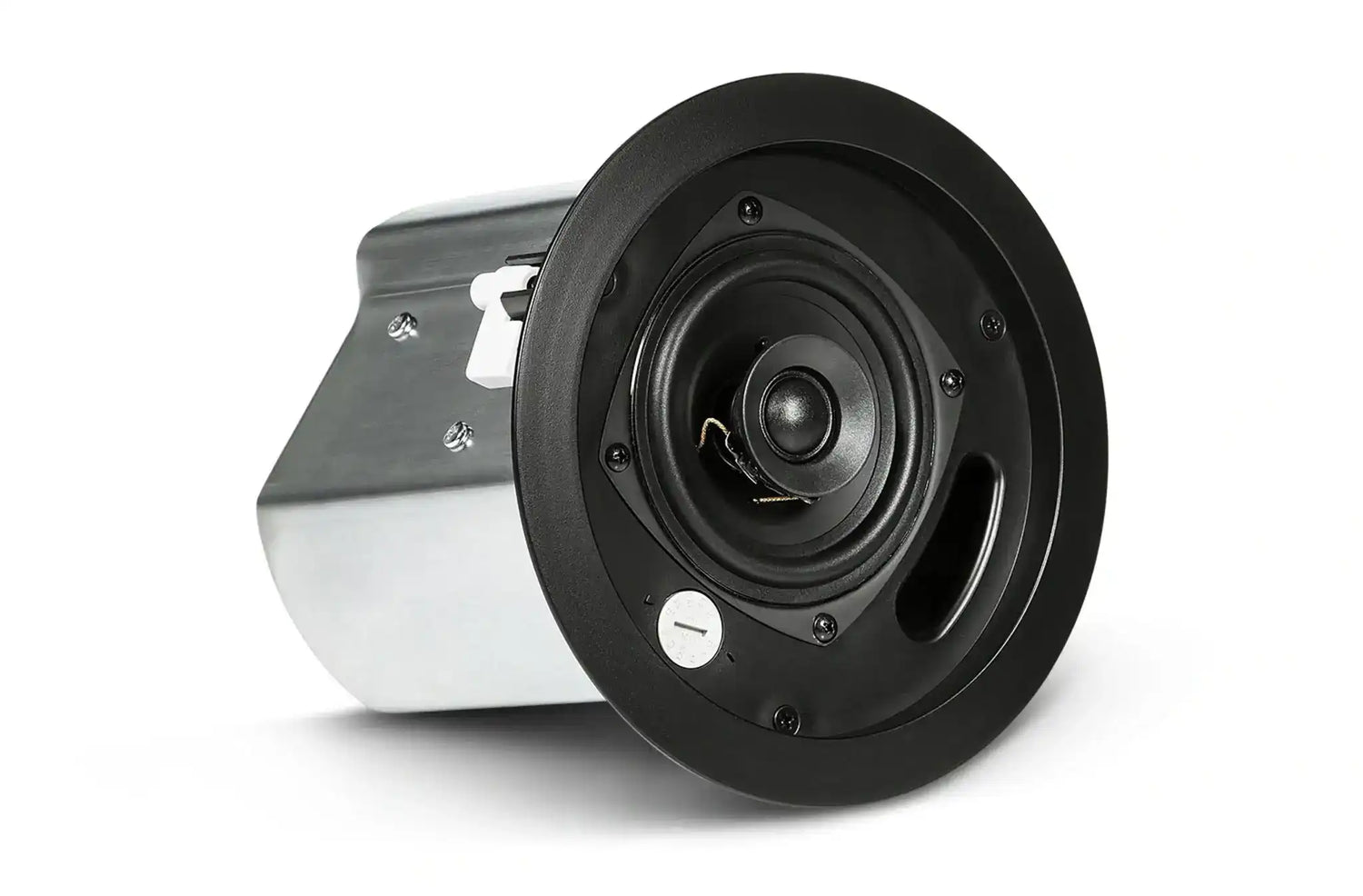

The pair of black Professional Series Control 14C/T Two-Way 4" Coaxial Ceiling Loudspeakers from JBL is designed to provide enhanced sound quality for a wide variety of medium volume applications such as music cafes, business music systems, retail stores, music/paging systems, airports, reception/waiting rooms, lounges, courtrooms, convention centers, hotels, educational facilities, and more.
These full-range ceiling speakers consist of a 4” (100mm) high-tech cone driver and a 19mm soft-dome, liquid-cooled tweeter mounted in a vented, paintable baffle made of UV-resistant UL94-V0 and UL94-5HB material, with a pre-attached blind-mount backcan for quick and easy installation. The 120° coverage delivers consistent sound quality for listeners located both off and on axis.
The 4” (100mm) low-frequency driver is designed with a lightweight, high temperature anodized aluminum voice coil former and high temperature grade voice coil for stable performance and reliability under long-term, high-power working conditions. The butyl rubber surround provides long-term durability and good sonic damping while the polypropylene cone is water and humidity resistant. The FEA-optimized motor construction and cone geometry, along with linear suspension spider design, allows for a smooth frequency response and more consistent off-axis performance. The 3/4” (19mm) high-frequency driver features a highly damped, treated silk dome for clear and warm sound, a lightweight Kapton voice coil for improved high-frequency response and reliability, low viscosity liquid cooling for power handling and reliability, and a wide dispersion waveguide design to produce wide coverage and smooth frequency response.
The removable locking connector has screw terminals for secure wire termination and loop through terminals. A dual strain relief assembly provides clamping for use with cable or flex conduit. Suitable for a wide variety of projects, the Control 14C/T Loudspeakers are switchable for use as either 8Ω, low-impedance speakers or as part of a 70 or 100V distributed loudspeaker system with a 25W, multi-tap transformer. The speakers come complete with 2 tile rail supports, a C-ring support backing plate, cutout template, paint shield, and a grille. A safety seismic attachment ring is provided on the top surface.
Features
- 4" (100mm) high output driver with polypropylene cone and butyl rubber surround
- 0.75" (19mm) soft-dome liquid-cooled tweeter
- Blind-mount backcan for quick and easy installation
- Dual conduit/cable clamps
- Combined 70V/100V and low impedance direct operation (30W at 8Ω nominal setting; 25W multi-tap at 70V/100V)
- 74 Hz to 20 kHz bandwidth with wide 120° coverage
Specs
JBL Control 14C/T Specs
| Frequency Range | -10 dB: 74 Hz to 20 kHz |
| Frequency Response | ±3 dB: 100 Hz to 20 kHz |
| Power Capacity |
At Low-Z: 60W continuous program power 30W continuous pink noise (CPN) |
| Sensitivity | Nominal: 87 dB |
| Coverage Angle | Nominal: 120° conical coverage |
| Directivity |
Factor Q: 7.6 Index DI: 8.1 dB |
| Maximum Sound Pressure Level (SPL) | Rated: 102 dB @ 3.3' (1.0 m) average, 108 dB peak |
| Nominal Impedance | 8 Ω (in direct/bypass 8 Ω setting) |
| Transformer Taps | 25 W, 12.5 W, 6.3 W @ 70 V or 100 V (plus 3.2 W @ 70 V only) |
| Crossover | Network: 12 dB/oct (2nd order) low-pass to LF driver, 12 dB/oct (2nd order) high-pass to HF driver |
| LF Driver Size | 4.0" (100.0 mm) with polypropylene cone, butyl rubber surround, anodized aluminum voice coil former, high temperature voice coil |
| HF Driver Size | 3/4" (19 mm), highly-damped treated-silk dome, Kapton voice coil, liquid cooling, wide dispersion waveguide |
| Input Connector | Removable locking 4-pin connector with screw-down terminals Maximum Wire Size: 12 AWG (2.5 mm2) |
| Wiring | Connector: Pin 1 = + In; Pin 2 = - In; Pin 3 = + Loop Thru; Pin 4 = - Loop Thru |
| Strain Relief | Strain relief for 2 cables or 2 flex conduits via coupled clamping mechanism |
| Material | ABS baffle with UL94-V0 and UL94-5VB flame class fire rating Zinc-plated steel backcan |
| Safety Agency Approvals | UL1480, UL2043, NFPA90, & NFPA70; S7232/UL Listed, Suitable for use in air handling spaces, Signaling Speaker; Transformer UL registered per UL1876; ROHS, C-tick N108, & CE compliant; Baffle meets UL94-V0 and UL94-5VB flammability rating; In accordance with IEC60849/EN60849 systems |
| Ceiling Cutout Size | Circular cutout with 6.7" (170.0 mm) diameter (cardboard cutout template included) |
| Ceiling Thickness | Range: Up to 1.4" (35.0 mm) with stock dog-ears; MTC-TCD thick-ceiling dog-ears available for up to 2.2" (55 mm) ceiling thicknesses (sold separately) |
| Attachment | Safety Seismic: One point, top surface |
| Dimensions | From Back of Baffle: 7.7 x 7.1" (196.0 x 181.0 mm) |
| Weight | One Speaker: 4.8 lb (2.2 kg) |
| Package Weight | 17.88 lb |
