Description
- Overview
- Features
- Specification
- Shipping & Returns
- Reviews
Overview

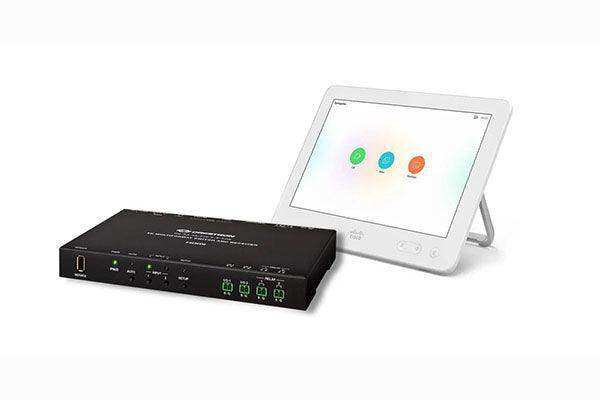

The Crestron and Cisco® Touch 10 Routing and Control Program is a program that allows Crestron® A/V switcher devices to be integrated into a Cisco room control solution and controlled via the Cisco Touch 10 touch screen, increasing the available HDMI® inputs within the room. The Crestron and Cisco® Touch 10 Routing and Control Program requires no custom programming and can be scaled to easily configure thousands of Cisco rooms through the provided user interface.
No Programming Required
The Crestron and Cisco® Touch 10 Routing and Control Program is loaded to the program slot of a Crestron RMC3 or RMC4 control system (or one of ten program slots if Modular Programming Architecture is enabled, allowing up to ten Cisco rooms to be controlled by a single control system1). The program provides an XPanel configuration user interface where the HDMI inputs of a supported Crestron A/V switcher device can be mapped to virtual buttons on the Cisco Touch 10. Updates occur in real time to ensure your room reflects the latest configuration. No custom programming is required.
Deployment Scalability
Using XPanel and Crestron Toolbox™ software, configurations can be copied and sent to multiple rooms for instantaneous deployment across an enterprise. Crestron Toolbox permits integrators to distribute configuration files to multiple units on a network over a secure TCP (SSH) connection. If certain rooms require a different configuration, simply make the necessary changes in the program and distribute the modified configuration to those rooms. Crestron also supports an RS‑232 Cisco Touch 10 control option for cases where there is no network connection available (or when one is not desired).
The Crestron® RMC4 provides a secure, high‑performance, cost-effective control processor and interface for controlling and monitoring for a single display device, a small AV system, lighting and shading, climate control, security, energy management, and many other specialized applications. A small form factor allows the RMC4 to be placed just about anywhere, with the option to attach it to a flat surface or DIN rail using the included mounting bracket. The RMC4 can fit easily behind a video display or above a projector, and provides enough control ports to control the display device along with a screen or lift.
4-Series Control Engine
4-Series™ control systems come equipped with an upgraded multicore CPU, delivering a sizable speed and performance increase compared to all Crestron 3‑Series® control processors. The improved performance allows 4-Series control systems to handle the increasing demands of an advanced automated system. Crestron 4-Series delivers a dynamic and secure control system platform capable of managing a room full of disparate technologies.
Reliable networking and IP control afford seamless integration with other systems and devices, with add-on control capability using Crestron touch screens, wireless remotes, and mobile device apps, as well as remote management through Crestron Fusion® software and the XiO Cloud® service.
Modular Programming Architecture
The RMC4 is designed to run a single program out of the box. The optional modular programming architecture (MPA) add-on allows the RMC4 to run up to ten programs simultaneously.1 Programmers can develop and run independent, device‑specific programs, enabling each program to be optimized for a specific function and allowing for changes to be made to one program without affecting the whole system.
Onboard Control Ports
Through a full complement of onboard control ports, the RMC4 can be integrated with a wide variety of audio, video, lighting, motorized shades, thermostats, door locks, sensors, security systems, and other equipment.
- Ethernet provides an interface for connecting to the building network and controlling Crestron AV switchers, audio processors, power controllers, and other IP controllable equipment.
- Cresnet® network connectivity provides support for Crestron lighting dimmers, motorized shades, sensors, thermostats, keypads, and more.2
- Onboard RS‑232, IR, relay, and digital input control ports enable direct integration with all types of third‑party equipment.
Features
Touch 10 Features:
Integrating a Cisco room with Crestron equipment via the Crestron and Cisco® Touch 10 Routing and Control Program allows an enterprise to take advantage of the following features that only Crestron provides:
- TCP (SSH) security (with encryption)
- Configuration and testing over a direct connection (no software or web configurator required)
- XiO Cloud® cloud-based management service
- Global 24/7 technical support
- Standard Crestron limited device warranty
Crestron RMC4 Features:
- Compact 4‑Series™ control system with 1 GB SDRAM and 8 GB flash memory
- Embedded 4‑Series multicore CPU processor
- iPhone®, iPad®, and Android™ device control app support
- XPanel computer and web based control
- Modular programming architecture (optional)
- Onboard IR/serial, COM, digital input, relay, Cresnet® network, and Ethernet control ports
- USB OTG (On-the-Go) port
- Crestron Fusion® software room monitoring and scheduling
- XiO Cloud® service provisioning and management
- Enterprise‑class network security and authentication
- SNMP V3 remote IT management support
- Native BACnet network/IP support
- Installer setup via software, web browser, or cloud
- IPv6 ready
- Integrates with Apple® HomeKit® technology
- PoE (Power over Ethernet) network power
- Compact, stackable IFE micro form factor
- Surface or DIN rail mountable
- Available rack mount and pole mount options
Specification
Crestron RMC4 Specifications
| Control Engine | |
| Crestron® 4-Series™; real-time, preemptive multi-threaded/multitasking kernel; Transaction-Safe Extended FAT file system; supports up to 10 simultaneously running programs (license required1) | |
| Communications | |
| Ethernet | 100 Mbps, auto‑switching, auto‑negotiating, auto‑discovery, full/half duplex, industry-standard TCP/IP stack, UDP/IP, CIP, DHCP, SSL, TLS, SSH, SFTP (SSH File Transfer Protocol), FIPS 140-2 compliant encryption, IEEE 802.1xX, SNMP, BACnet and IP3, IPv4 or IPv6, Active Directory® service authentication, HTTPS web server, HTTPS web browser setup and XiO Cloud® client, SMTP email client |
| Cresnet | Cresnet master mode |
| USB | Supports computer console and USB mass storage class devices via the front panel USB OTG (On‑the‑Go) device port |
| RS-232/422/485 | For 2-way device control and monitoring, supports RS-232, RS-422, or RS-485 up to 115.2k baud with hardware and software handshaking |
| IR/Serial | Supports 1-way device control via infrared up to 1.2 MHz or serial TTL/RS-232 (0–5 V) up to 115.2k baud |
| Memory | |
| SDRAM | 1 GB |
| Flash | 8 GB |
| External Storage | Supports USB mass storage devices up to 1 TB |

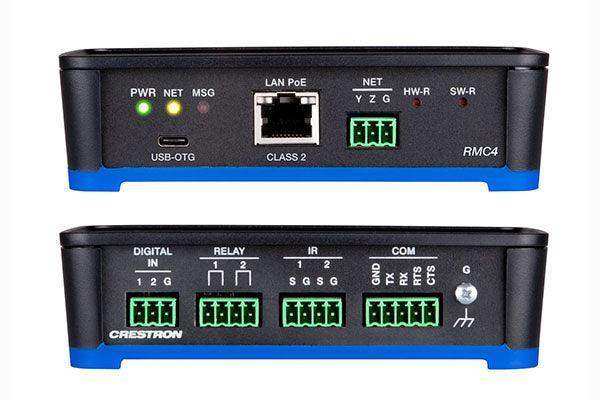

| Connectors | |
| USB-OTG | (1) USB Type Micro-AB female; USB OTG port for computer console and USB mass storage devices |
| LAN PoE | (1) 8-pin RJ-45 connector, female; 100BASE-T Ethernet port; PoE (Power over Ethernet) PD (Powered Device) port |
| NET | (1) 3-pin 3.5 mm detachable terminal block; Cresnet master port; Provides data only (no power)2 |
| DIGITAL IN 1–2 | (1) 3-pin 3.5 mm detachable terminal block; Comprises (2) digital inputs (referenced to GND); Voltage Range: Rated for 0–24 VDC; Input Impedance: 2.2k Ω pulled up to 5 V; Logic Threshold: >2.0 V low/0 and <1.1 V high/1 |
| RELAY 1–2 | (1) 4-pin 3.5 mm detachable terminal block; Comprises (2) normally open, isolated relays; Rated 1 A, 30 VAC/VDC; MOV arc suppression across contacts |
| IR 1–2 | (1) 4-pin 3.5 mm detachable terminal block; Comprises (2) IR output ports; IR output up to 1.2 MHz; 1-way serial TTL/RS-232 (0–5 V) up to 115.2k baud; IRP2 IR emitters sold separately |
| COM | (1) 5-pin 3.5 mm detachable terminal block; Bidirectional RS‑232/422/485 port; Up to 115.2k baud; Hardware and software handshaking support |
| G | (1) 6-32 screw; Chassis ground lug |
| Controls and Indicators | |
| PWR | (1) Bicolor green/amber LED, indicates operating power is present; Amber indicates that the device is booting and is not yet ready to operate; Green indicates that the device is ready to operate |
| NET | (1) Amber LED, indicates communication with Cresnet devices |
| MSG | (1) Red LED, indicates processor has generated an error message |
| HW-R | (1) Recessed push button, initiates hardware reset |
| SW-R | (1) Recessed push button, initiates software reset |
| LAN PoE | (1) Green and (1) Amber LEDs; Green LED indicates Ethernet link status and connection speed; Amber LED indicates Ethernet activity |
| Power | |
| Power over Ethernet | IEEE 802.3at Type 1 (802.3af compatible) Class 0 (12.95 W) PoE Powered Device |
| Power Consumption | 6.5 W |
| NOTE: The RMC4 does not use or supply any Cresnet power. | |
| Environmental | |
| Temperature | 32 to 104 °F (0 to 40 °C) |
| Humidity | 10% to 90% RH (noncondensing) |
| Heat Dissipation | 22 BTU/hr |
| Construction | |
| Enclosure | IFE micro form factor, black and blue plastic |
| Mounting | Freestanding, stackable, surface mount, or 35 mm DIN EN 60715 rail mount; Occupies 8 DIN module spaces (144 mm); Surface/DIN rail mounting bracket included, optional rack mount and pole mount kits sold separately |
| Dimensions | |
| Height | 1.35 in (35 mm); 1.77 in (45 mm) with bracket |
| Width | 5.04 in (128 mm); 5.36 in (137 mm) with bracket |
| Depth | 2.86 in (73 mm) |
| Weight | |
| 6.4 oz (180 g) | |
| Compliance | |
|
Regulatory Model: RMC4; UL® Listed for US & Canada, CE, IC, FCC Part 15 Class B digital device |
|
