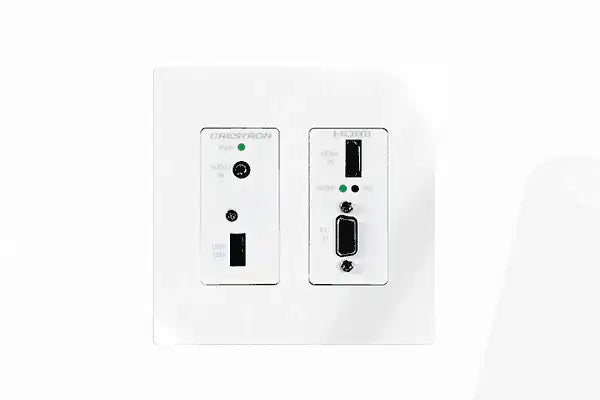

Crestron DM-TX-200-C-2G-W-T Wall Plate DigitalMedia 8G+® Transmitter 200, White Textured

Availability: Call for Availability
Crestron SKU: DM-TX-200-C-2G-W-T
No reviews
Price:
$1,540.00

Description

The DM-TX-200-C-2G provides an interface for computers and high-definition AV sources as part of a complete Crestron® DigitalMedia™ system. It is ideal for wall, lectern, and floor box applications in a boardroom, classroom, auditorium, or residence. It functions as a DM 8G+® transmitter and switcher, providing HDMI®, VGA, and analog audio inputs along with a USB HID host port. In addition to DM 8G+, it is also compatible with HDBaseT®, allowing it to be connected directly to the input of an HDBaseT certified display device. It connects to the head end or display location using a single CAT type twisted pair cable.[1] Standard gang-box mounting (2-3/4 in. deep) allows for installation adjacent to an Ethernet jack (Crestron MP-WP183 or equivalent) for a total connectivity solution.

  • DigitalMedia 8G+® transmitter and multimedia interface
  • Built-in 2x1 AV switcher with auto-switching and analog audio-breakaway
  • QuickSwitch HD™ technology achieves fast, reliable switching
  • Connects to a DM® switcher or receiver over a single CAT type twisted pair cable [1]
  • Supports cable lengths up to 330 ft (100 m) using DM 8G® cable or CAT5e [1]
  • HDBaseT® Certified — Enables direct connection to other HDBaseT certified equipment
  • Provides HDMI® and RGB/component video inputs [4]
  • Also supports DVI and Dual-Mode DisplayPort™ sources [3]
  • Handles video resolutions up to Full HD 1080p
  • Handles computer resolutions up to WUXGA
  • Handles Dolby Digital®, DTS®, and uncompressed 7.1 linear PCM audio
  • HDCP compliant
  • Includes a mini-TRS stereo analog audio input
  • Detects and reports detailed video and audio input information
  • Performs automatic AV signal format management via EDID
  • Enables device control via CEC
  • Enables USB HID signal extension for a local keyboard/mouse
  • Allows quick, easy setup and diagnostics
  • 2-gang wall box mount design (2-3/4 in. deep)
  • Also fits in a typical 6 in. deep floor box
  • Available in black or white finish
  • Powered via the DM connection or PW-2407WUL power pack (sold separately) [5,6]
