Crestron Crestron DMC-SO-HD 2 Channel DigitalMedia 8G Fiber Output Card for DM Switchers

CrestronSKU: DMC-SO-HD
No reviews

Price:
Sale price$1,980.00

Description

The Crestron DMC-SO-HD is an output card designed for use with any card-based Crestron® DigitalMedia™ Switcher. It provides two independent DM 8G® Fiber outputs, plus one HDMI® output. The HDMI output carries the same signal as the first DM 8G Fiber output. Each DM 8G Fiber output enables connection to a DM 8G Fiber Receiver, or the input of another DM® switcher, using a single strand of multimode fiber.

All outputs on the DMC-SO-HD are capable of handling video resolutions up to Full HD 1080p, as well as computer resolutions up to WUXGA. DM 8G Fiber transports uncompressed high-definition video and computer signals over distances up to 1000 feet (300 m) using CresFiber® 8G, or 500 feet (150 m) using other multimode fiber optic cable.

To configure a DM switcher complete with input and output cards, cables, and other peripherals, please use the online DigitalMedia Switcher Configuration Tool.

Are you upgrading an existing DM switcher that has older “multi-gang” DMCO-series output cards? Use the online Output Card Additions and Upgrades Tool to update your existing output cards and switcher to the new “single-gang” output card format.

Crestron DMC-SO-HD Features:

  • Modular output card for a DM-MD8X8, DM-MD16X16, or DM-MD32X32 switcher
  • Provides two independent DM 8G® Fiber outputs
  • Supports cable lengths up to 1000 ft (300 m) using CresFiber® 8G, or 500 ft (150 m) using other multimode fiber
  • Includes a parallel HDMI® port on the first output
  • Handles video resolutions up to Full HD 1080p
  • Handles computer resolutions up to WUXGA
  • Handles 3D video and Deep Color
  • Handles Dolby® TrueHD, DTS-HD®, and uncompressed 7.1 linear PCM audio
  • HDCP compliant
  • Occupies a single output card slot

Crestron DMC-SO-HD Specifications:

  • Video:
    • Signal Types: DM 8G® Fiber w/Deep Color & 3D, HDMI® w/Deep Color & 3D (DVI compatible [2])
    • Resolutions, Progressive: 640x480@60Hz, 720x480@60Hz (480p), 720x576@50Hz (576p), 800x600@60Hz, 848x480@60Hz, 852x480@60Hz, 854x480@60Hz, 1024x768@60Hz, 1024x852@60Hz, 1024x1024@60Hz, 1280x720@50Hz (720p50), 1280x720@60Hz (720p60), 1280x768@60Hz, 1280x800@60Hz, 1280x960@60Hz, 1280x1024@60Hz, 1360x768@60Hz, 1365x1024@60Hz, 1366x768@60Hz, 1400x1050@60Hz, 1440x900@60Hz, 1600x900@60Hz, 1600x1200@60Hz, 1680x1050@60Hz, 1920x1080@24Hz (1080p24), 1920x1080@25Hz (1080p25), 1920x1080@50Hz (1080p50), 1920x1080@60Hz (1080p60), 1920x1200@60Hz, 2048x1080@24Hz, 2048x1152@60Hz, plus any other resolution allowed by HDMI up to 165MHz pixel clock
    • Resolutions, Interlaced: 720x480@30Hz (480i), 720x576@25Hz (576i), 1920x1080@25Hz (1080i25), 1920x1080@30Hz (1080i30), plus any other resolution allowed by HDMI up to 165MHz pixel clock
  • Audio:
    • Signal Types: DM 8G Fiber, HDMI
    • Formats: Dolby Digital®, Dolby Digital EX, Dolby Digital Plus, Dolby® TrueHD, DTS®, DTS-ES, DTS 96/24, DTS-HD High Res, DTS-HD Master Audio™, LPCM up to 8 channels
  • Communications:
    • DigitalMedia: DM 8G Fiber, HDCP, EDID, CEC, Ethernet
    • HDMI: HDCP, EDID, CEC
    • NOTE: Supports management of HDCP and EDID; supports management of CEC between the connected HDMI device and a control system
  • Connectors:
    • MMF/SC: (2) SC female optical fiber connectors, comprising (2) DM 8G Fiber outputs; Each connects to the DM 8G Fiber input of a DM receiver or other DM device via CresFiber® 8G fiber optic cable
    • HDMI: (1) 19-pin Type A HDMI, female; HDMI digital video/audio output, DVI compatible; Outputs same signal as the left DM 8G Fiber output
  • Indicators:
    • MMF/SC: (2) green LEDs, indicate DM link status for each corresponding DM 8G Fiber output

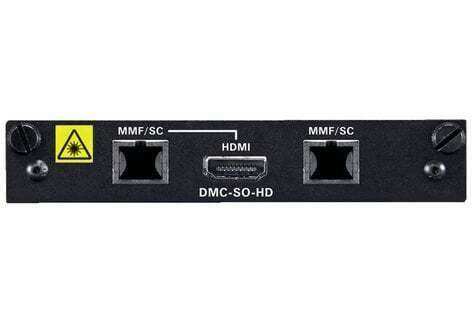

  • Construction: Plug-in card, occupies (1) DM switcher output card slot, includes metal faceplate with black finish
  • Weight: 6.2 oz (176 g)
