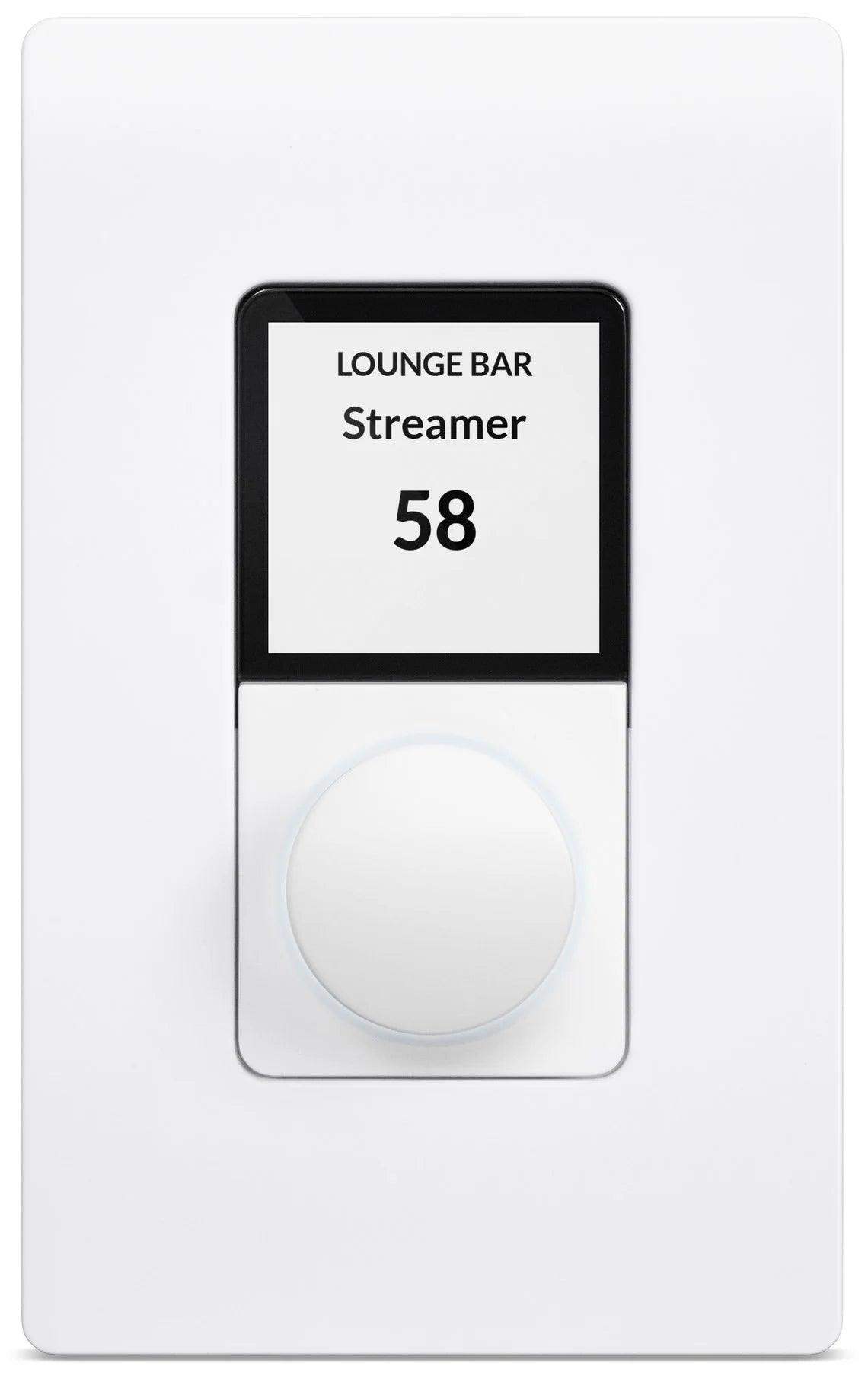

Blaze Audio Wall-S1-W-US Single Gang Networked Smart Controller (White) - BGM-888-003

Save 20%
Blaze Audio SKU: BGM-888-003
No reviews

Sale price$199.00 Regular price$250.00


The White Wall-S1 is the ultimate remote controller for managing any multi-zone audio system. This networked/PoE controller comes with a customizable on-screen color menu and backlight control button, giving users the ease and intuitive convenience of controlling your system’s input sources and volume.

Up to 8 Wall-S1 controllers can be assigned to each PowerZone Connect amplifier and customized using our PowerZone Control web app.

  • Danish-designed, high-performance polymer material with a touch-friendly matte finish and concealed screws
  • Available in EU and US versions, standard white RAL9003 and black RAL9005
  • 4 color screen schemes, 4 brightness and 4 button backlight options
  • Instant network pairing and configuration for up to 8 Wall-S1 controllers with each PowerZone Connect amplifier
  • Optional 4-digit PIN code protection
  • Works with PowerZone Connect amplifiers
  • Display Screen Dimension (excluding black border): 27.72 mm x 27.72 mm
  • Display Screen Area (excluding black border): 768.4 sq mm
  • Display Screen Resolution: 240 x 240 pixels
  • Display Screen Type: RGB, Transmissive / Normally Black
  • Display Screen Material: High gloss polished transparent acrylic
  • Exterior & Mechanical Parts Material: Plastic (ABS-PC)
  • Base Construction & Shield Material:l Pre-galvanized steel
  • Power Consumption: PoE Class 1 / 3.84 W max
  • Power Supply: Power to the RJ45 ethernet port on the rear of device using a category 5e cable (or faster STP) with the use of a standard PoE switch, or PoE injector
  • Standby Modes: 6 settings available: 30 secs, 2 mins, 5 mins, 15 mins, 30 mins, 60 mins
  • Connection & Data Protocol: RJ45, Blaze Audio proprietary over CAT 5e (or faster STP)
  • Maximum Cable Length: (CAT 5e) 100m (328ft)
  • IP Rating: IP 30
  • External Dimensions: 115.1 x 70.6 mm (4.53 x 2.78 in)
  • Weight: 120g (4.2oz.)
  • Operating Temperature Range: 0-40°C (32-104°F)
  • Warranty Period: 2 Years
