The F17-8M 8MP Portable Document Camera from AVer features an 8MP sensor and 27.2x digital zoom that displays a large shooting area of 22.83 x 12.83". You can connect to the HDMI or VGA input and output to your projector, monitor, or computer. The flexible gooseneck allows you to see details from any angle. You can use AVer's Sphere2 and ClassSend Software Suite to create, collaborate, upload, and share documents and materials through websites such as YouTube, Google Drive, and Dropbox.
- Picture-in-picture
- Split screen
- Remote control
- HDMI or VGA input and output
Exceptional 8.0-megapixel resolution
The Avermedia F17-8M is an AVerVision portable FlexArm document camera that features a powerful 8-megapixel sensor and a 27.2x digital zoom which displays a large shooting area of 22.83" x 12.83".
Easy to connect, easy to display
Present and teach with high HD quality with the convenience of HDMI or VGA input and output to your projector, monitor, or computer.
Learn from any angle

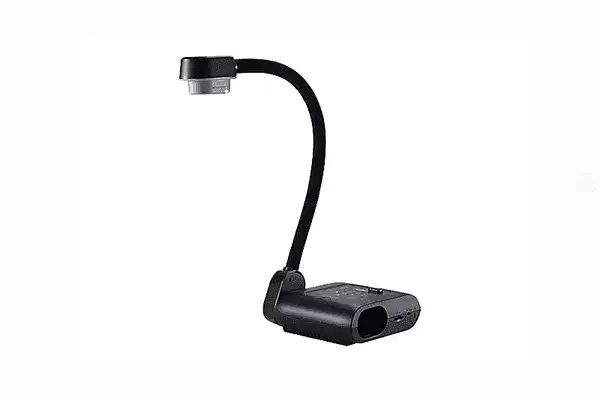

Create dynamic lessons with a flexible gooseneck that gives you a wide range of motion allowing your students to see details from all angles.
Features
- 8 MegaPixel sensor
- 27.2x Digital zoom
- 3840 H x 2160 V Effective pixel
- 30 fps (max) Frame rate
- Shooting area: Max. 22.83" x 12.83" (580mm x 326mm)
- HDMI or VGA input and output
- Focus: Auto / Manual
- LED light lamp type flexible gooseneck
- AVer’s exclusive Sphere2 & ClassSend Software Suite
- 5-year bumper-to-bumper (all-inclusive) doc cam warranty
Specifications
AVer F17-8M
Sensor | 1/3.2" CMOS |
Sensor Resolution | Effective: 8 Megapixel |
Zoom | 27.2x (Digital) |
Frame Rate | 30 fps |
Effective Pixels | 3840 x 2160 |
Output Resolution | 1920 x 1080 |
Capture Area | 22.8 x 12.8" / 580 x 326 mm |

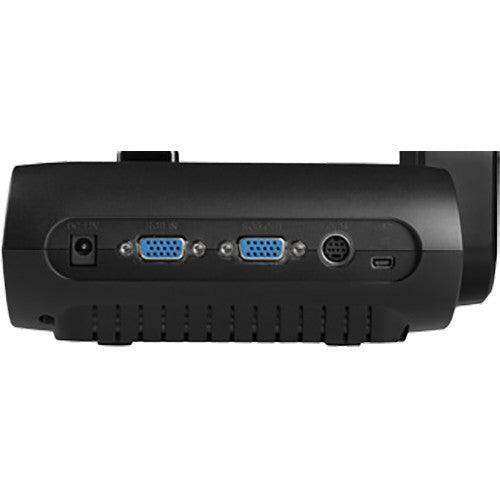

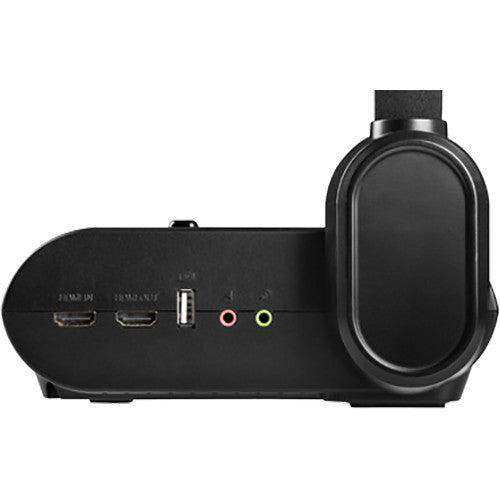

Video I/O | 1 x HD15 VGA Input 1 x HD15 VGA Output 1 x HDMI Input 1 x HDMI Output |
Audio I/O | 1 x 1/8" / 3.5 mm Microphone Input |
Other I/O | 1 x USB-A Unspecified Interface 1 x Mini-USB 2.0 |
Media Card Slots | SD/SDHC |
Image Storage | 240 Images |
Built-In LED Lighting | Yes |
Built-In Mic | No |
Focus Modes | Auto, Manual |
Exposure Modes | Auto, Manual |
Image Capture Modes | Single, Continuous |
White Balance | Auto, Manual |
Remote Control | Yes |
Whiteboard Compatibility | Yes |
Operating System Support | ChromeOS, Windows, macOS/OS X |
OS Compatibility | Chrome OS Windows macOS *As of March, 2019: Check with manufacturer for the most up-to-date compatibility |
Power Source | Power Adapter |
Power Consumption | 12.8 W (Lamp On) 12 W (Lamp Off) |
AC Input Power | 100 to 240 VAC, 50 / 60 Hz |
DC Input Power | 12 VDC at 2 A |
Dimensions | 7.9 x 20.7 x 15.0" / 200.0 x 525.0 x 380.0 mm (In-Use) 9.0 x 2.9 x 12.0" / 230.0 x 73.0 x 305.0 mm (Folded) |
Weight | 5.5 lb / 2.5 kg |
Package Weight | 8.05 lb |
Box Dimensions (LxWxH) | 17.5 x 11.7 x 5.6" |
