8-PORT PROGRAMMABLE USB HUB WITH PER-PORT POWER CONTROL
A controlled USB hub that offers controlled customization and proven reliability.

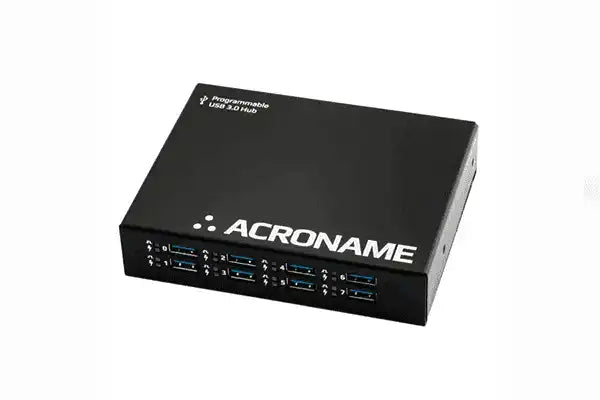

The USBHub3+ is an 8-port software-programmable USB 3.2 Gen1 (5Gbps) hub designed for demanding industrial environments where advanced control and monitoring of USB ports is required. Ideal for testing or development environments where standard “always-on” behavior of a consumer-grade USB hub is not desirable

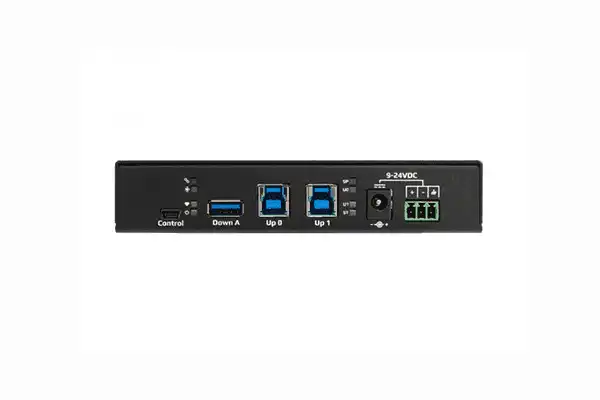

Building on the trusted and robust design of Acroname's USBHub2x4, Acroname is proud to offer the USBHub3+, a USB 3.2 Gen 1 Hub with 8 programmable ports. Designed by engineers for engineers - connect the USBHub3+ with confidence to expensive lab or production equipment. Designed and certified to withstand ±15kV ESD strikes (certified to IEC61000-4-2 Level 4). With two separate upstream inputs, you can connect devices to either one of two hosts. A third computer can be attached via the Control Port to independently select the upstream input
Take control and optimize your manufacturing, testing, and development environments. Features 8 programmable ports. Control USB hi-speed, SuperSpeed, and power lines. Set port current limits. Monitor voltage and current. Auto-switch between two input ports, and expand to multiple hubs via the expansion port. Built to withstand±15kV ESD strikes
COMPATIBLE WITH COMMON OPERATING SYSTEMS
- Mac 10.8 and above
- Linux
- Windows 7, Windows 8.1 and above
USES FOR 8-PORT INTELLIGENT USB HUB
- USB device manufacturing
- USB device validation and development
- Plug/unplug cycle testing
- Functional testing
- Battery charging
- USB device resets
- Power and data speed analyzing
- Controlling USB device enumeration sequence
WHY CHOOSE ACRONAME’S INDUSTRIAL 8-PORT USB HUB?
The USBHub3+ gives engineers advanced flexibility and configurability over USB ports in testing and development applications. The USBHub3+ hub architecture consists of two layers of internal hubs to achieve true 8-port hub functionality. Each downstream USB channel implements separately and independently switched data lines and current-limited power lines. USB power, data and SS data can be independently disconnected for advanced USB testing applications. Pin interfaces are protected against reverse polarity and overvoltage. Connections are designed to operate from 0°C to 50°C ambient with no external cooling or fans. Each USBHub3+ is uniquely addressable and controllable from a host PC via the selected USB host input or through a dedicated Control Port. Acroname’s BrainStem® link is then established over the USB input and allows a connection to the on-board controller in the USBHub3+. USBHub3+ can be controlled via a host running BrainStem APIs or alternately, it can operate independently by running locally embedded, user-defined programs based on Acroname’s BrainStem Reflex language.
