tvONE C2-2855 CORIO 2 Universal Scaler

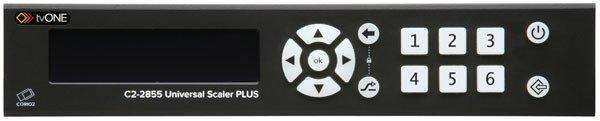

C2-2855 Universal Scaler PLUS The C2-2855 Universal Scaler Plus is first in a new generation of high performance scalers that provides best-in-class video scaling and format conversion along with revolutionary, intuitive user interface tools. The crystal clear OLED display intuitively guides users through setup and control using color-modulated, backlit buttons. Alternatively, a graphic user interface for Windows can be used to set up and control the unit remotely via IP. RS232 is also provided as a direct control interface for 3rd party control systems. The video performance of the C2-2855 is based on tvONE's exclusive CORIO®2 technology, which provides high quality bi-directional conversion and switching between a wide variety of analog and digital video formats. Living up to its designation as a "Universal Scaler" the C2-2855 supports SD/HD/3G-SDI, HDMI, DVI, Composite Video, YC, YUV, YPbPr or RGB, on both inputs and outputs, and the signal parameters of the incoming video may be adjusted. The high resolution RGB/YPbPr output is selectable at virtually any PC or HDTV resolution and NTSC, PAL, PAL-M, and PAL-N standards are all supported. Crisp, clear images are ensured by a high sampling rate and advanced Digital Flicker Elimination circuitry on CV & YC outputs, while full bandwidth chroma sampling ensures faithfully reproduced, high resolution colors. Motion compensation, diagonal interpolation and a 3:2 Pull-down feature provide for the best possible NTSC image quality, while temporal interpolation refines frame-rate conversion by merging successive frames

Advanced Features - Keying allows one input to be keyed over a second input. The keyed image may be faded in and out. Precise keying at the pixel level is possible due to 4:4:4 sampling format for RGB sources. Transitions permit Seamless Cut, Fade or Wipe transitions when switching between input sources. Picture-In-Picture (PIP) functionality allows an input to be inset in a window over a second input or vice versa, and the PIP window may be placed anywhere on the screen. Genlock ensures precise synchronization of the incoming signals.

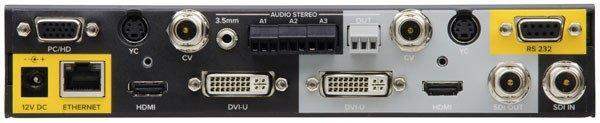

Audio - Integral Stereo Audio switching is provided by an integral 4x1 audio routing switcher. The four impedance-independent unbalanced inputs follow the video input selection. A rear panel terminal block and a 3.5mm jack-socket provides access.

Embedded Audio Support allows any audio input to be embedded on all outputs which support embedded audio data (HDMI/DVI-U/SDI). The unit is housed in a desktop case and can be rack-mounted with an optional 19-inch rackmount kit that holds one or two units.

Features

• This video scaler lets you change video signals from one size or resolution to another
• Process TV signals for viewing them on progressive scan devices like PC screens
• Plug and Play your video scaler with the PC and go
• The External form factor allocates you simple and easy installation for your video scaler
• Analog Outputs: DVI-U* (RGB/YPbPr/YUV), CV, YC
• Analog: PC to 1920x1080, HDTV to 1080p/60
• HDMI & DVI : PC to 1920x1200, HDTV to 1080p/60
• Supports: NTSC, PAL, PAL-M, PAL-N
• Motion Compensation & 3:2 Pulldown
• Temporal Interpolation & Diagonal Interpolation
• Automatic Incoming Resolution Detection
• Auto-Set Calibrate - Automatic picture sizing of PC inputs
• Auto-Switching – Automatically switch between connected inputs
• 4:4:4 Full bandwidth Chroma Sampling for RGB sources
• 4:2:2 for SDI, YC and CV sources
• HDMI YUV support for either 4:4:4 or 4:2:2 sampling
• Video signal parameter adjustments
• Integral 4x1 Stereo Analog Audio Routing Switcher, fully integrated with digital audio
• Stereo Audio Embedding on capable outputs (DVI-U*, HDMI, SDI)
• RS-232 and IP Interface for Control Software

Key Features of the C2-2855
Up/Down/Cross Conversion
Digital Inputs: SD/HD/3G-SDI, DVI-U*, HDMI (DVI 1.0, HDCP 1.4)
Analog Inputs: YUV/YPbPr, RGB/YPbPr, CV, YC
Digital Outputs: SD/HD/3G-SDI, DVI-U*, HDMI (DVI 1.0, HDCP 1.4)
Analog Outputs: DVI-U* (RGB/YPbPr/YUV), CV, YC
Analog: PC to 1920x1080, HDTV to 1080p/60
HDMI & DVI : PC to 1920x1200, HDTV to 1080p/60
Supports: NTSC, PAL, PAL-M, PAL-N
Motion Compensation & 3:2 Pulldown
Temporal Interpolation & Diagonal Interpolation
Automatic Incoming Resolution Detection
Auto-Set Calibrate - Automatic picture sizing of PC inputs
Auto-Switching – Automatically switch between connected inputs
4:4:4 Full bandwidth Chroma Sampling for RGB sources
4:2:2 for SDI, YC and CV sources
HDMI YUV support for either 4:4:4 or 4:2:2 sampling
Video signal parameter adjustments
Integral 4x1 Stereo Analog Audio Routing Switcher, fully integrated with digital audio
Stereo Audio Embedding on capable outputs (DVI-U*, HDMI, SDI)
RS-232 and IP Interface for Control Software
Variable Image Zoom to 10X and Shrink to 10%
Genlock
Framelock
PIP, Chromakey and Lumakey
Optional Single/Dual Rackmount Kit
