tvONE C2-2655 Scan Converter Plus
The C2-2655 Universal Scaler PLUS from TV One allows you to convert just about any type of video signal to just about any other signal with less than two frames of latency. It can support resolutions up to 1920 x 1200 at 60 Hz and will accept as well as output composite, component, VGA, DVI, and HDMI, plus can output only via SDI. Additionally, analog audio inputs and outputs allow stereo audio to be embedded or de-embedded from digital video signals. On top of scaling and frame rate conversion, the C2-2655 can also act as a 3 x 3 matrix switcher allowing you to route any of the inputs to any of the outputs

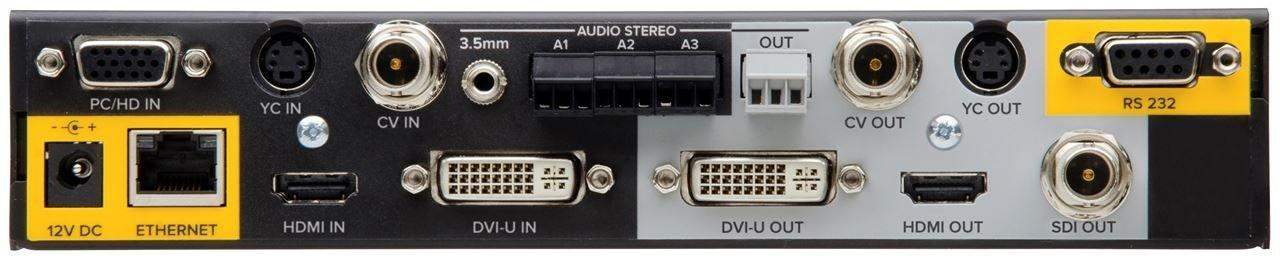

Flexible Inputs and Outputs
- Inputs: HDMI, VGA , composite, DVI-U, a stereo 3.5 mm mini jack audio input, and three analog audio inputs on terminal connectors
- Outputs: SDI with 3G-SDI, HD-SDI, and SD-SDI support, HDMI, composite, DVI-U, and one analog audio on a terminal connector
- DVI-U: DVI-U is a combo connector that will pass HDMI, DVI, VGA, component, or composite video signals as well as embedded audio where applicable. An adapter will be required to connect any devices that do not use DVI connectors
Auto-Switching
Note: Please ensure you are updated to the latest firmware to enable this feature
Remote Control Options
Features
Key Features of the C2-2655
- Up/Down/Cross Conversion PC to Video
- Digital Inputs: Universal DVI*, HDMI (DVI 1.0, HDCP 1.4)
- Analog Inputs: YUV/YPbPr, RGB/YPbPr, CV, YC
- Digital Outputs: SD/HD/3G-SDI, Universal DVI*, HDMI (DVI 1.0, HDCP 1.4)
- Analog Outputs: Universal DVI* (RGB/YPbPr/YUV), CV, YC
- Analog Input: PC to 1920x1080, HDTV to 1080p/60
- Analog Output: PC to 1024x768, HDTV to 1080p/60
- HDMI & DVI Input : PC to 1920x1080, HDTV to 1080p/60
- HDMI & DVI Output : PC to 1024x768, HDTV to 1080p/60
- Supports: NTSC, PAL, PAL-M, PAL-N
- Motion Compensation & 3:2 Pulldown
- Temporal Interpolation & Diagonal Interpolation
- Automatic Incoming Resolution Detection
- Calibrate- Automatic picture sizing of PC inputs
- Auto-Switching – Automatically switch between connected inputs
- 4:4:4 Full bandwidth Chroma Sampling for RGB sources.
- 4:2:2 for YC and CV sources
- HDMI YUV support for either 4:4:4 or 4:2:2 sampling
- Video signal parameter adjustments
- Integral 4x1 Stereo Analog Audio Routing Switcher, fully integrated with digital audio
- Stereo Audio Embedding on capable outputs (Universal DVI*, HDMI, SDI)
- RS-232 and IP Interface for Control Software
- Variable Image Zoom to 10X and Shrink to 10%
- Genlock
- Framelock
- PIP, Chromakey and Lumakey
- Optional Single/Dual Rackmount Kit
Image Processing
- Size and Position: Automatic via Calibrate or Manual
- Image Size: User-definable presets
- Image Freeze: One video frame
- Settings Memory: Non-Volatile
- Zoom Range: Variable to 10x Zoom
- Shrink Range: Variable to 10%
- Image Mirroring: Horizontal and/or vertical
- Horizontal Filtering: Full digital
- Conversion Technology: CORIO2
- Framerate Conversion: Temporal
- Color Resolution: 24-bit (16.8 million colors)
- Sampling Rate: 162 MHz
- Digital Sampling: 24-bit, 4:4:4 or 4:2:2 format depending on input source
- Firmware Memory: Flash upgradeable via RS-232 or IP
- Video Encoder and Decoder: 8-bit digital
- De-Interlacing (NTSC/PAL): Pixel-level motion adaptive, diagonal Interpolation
- Film Mode (NTSC): 3:2 pulldown
- Maximum Latency: 1 to 2 frames
- Video Adjustments CV/YC: Contrast, Brightness, >Saturation, Hue (NTSC), Analog RGB/YPbPr levels
