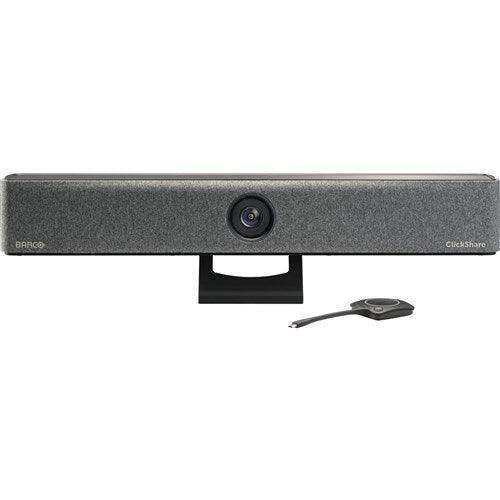

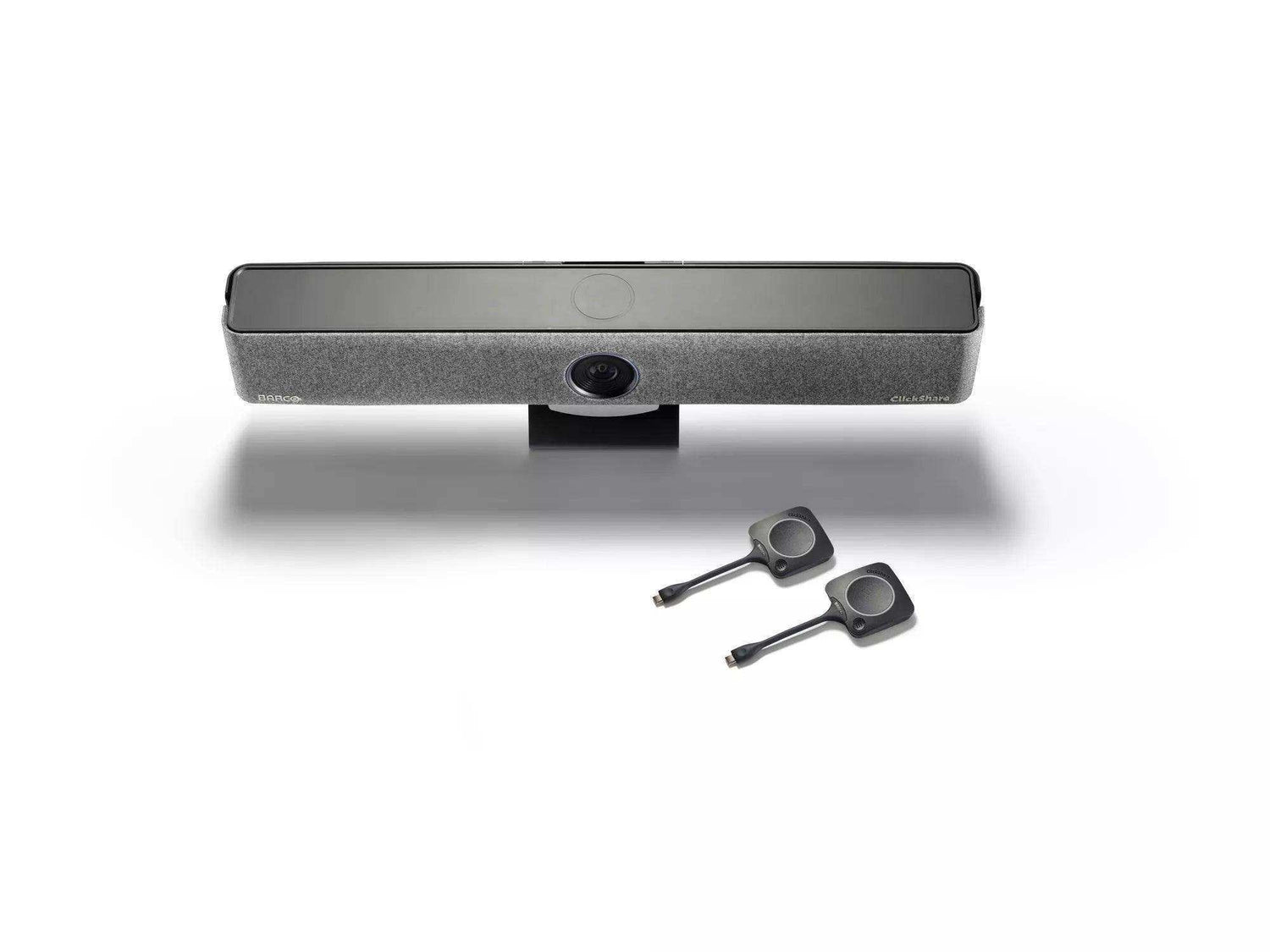

Barco Clickshare Bar Core US With 1 Buttons (Black) - R9861632USB1

Authorized Dealer

$2,450.00

Shipping calculated at checkout.

Barco | SKU: R9861632USB1

Shipping Availability*

Free Ground Shipping on Most Orders Over $250.00

Looking for the best price or just need expert advise?
Give us a call at 1-888-230-3661 or LiveChat below.
Purchasing 1 or 100, there may be greater savings beyond the advertised price.

ClickShare Bar Core is a carbon-neutral, all-in-one video bar that enables engaging, effortless wireless conferencing in small and medium-sized meeting rooms with any video conferencing platform. This solution ensures meeting participants feel heard and seen thanks to its high-quality AV capabilities while offering simplified installation and reduced Total Cost of Ownership.

Check out the ClickShare Bar product brochure

Features

Crystal-clear, highquality stereo audio
Advanced AI-powered 4K camera
Simplified installation
Sound investment: fewer interventions, minimized downtime, future-proof platform
Carbon-neutral product

Specs

ClickShare Base Unit dimensions

Dimensions (HxWxD): 98 mm x 640 mm x 101 mm

Power consumption: Operational: 5-20W, 65W Max

Power supply: Standard 110/220 V AC plug or USB-C (back)

Weight: 2500 gr

General specifications

Operating system: Windows 10 and higher macOS 11 (Ventura) and higher Android v13 and higher (ClickShare App) iOS 16 and higher (ClickShare App)

System requirements: For a smooth experience with Microsoft Teams or Zoom Minimum: Intel i3 dual-core processor / 8GB RAM / OS: Windows 10 latest build or Mac OS Ventura latest build Recommended: Intel i5 4-core processor / 8GB RAM / OS:Windows 11 latest build or Mac OS latest build

Video outputs: 4K UHD (3840*2160) @ 30Hz. HDMI 1.4b or USB-C DP ALT mode (DisplayPort 1.2)

Video inputs: -

Camera: 4K camera, 3x zoom/ePTZ, 120˚FOV

Camera AI: Group framing and composition mode with up to 4 people

Audio output: 2x 10W full duplex and stereo speakers, 8 Ohms impedance (available mid 2024)

Audio pickup: 6 beamforming MEMS microphones with echo and background noise cancellation. Pickup range up to 15 feet / 4.5 meters

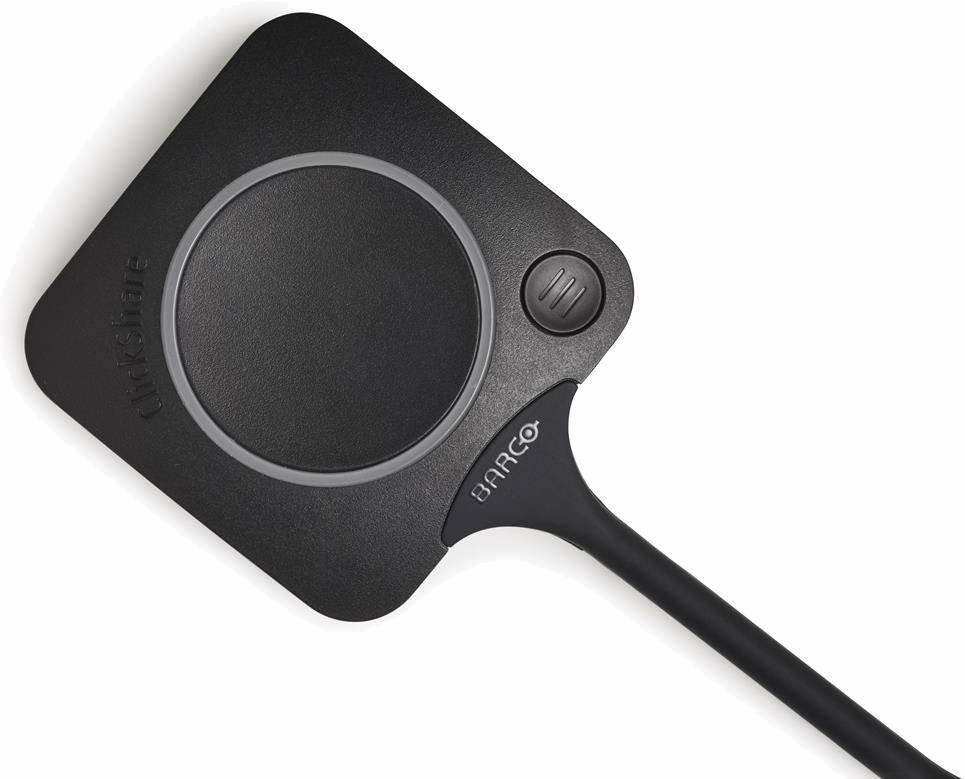

ClickShare Buttons: 1

ClickShare App: Desktop & Mobile

Native protocols: Airplay, Google Cast, Miracast (available mid 2024)

Noise Level: Fanless

Authentication protocol: WPA2-PSK in stand-alone mode WPA2-PSK or IEEE 802.1X using the ClickShare Button in network integration mode

Wireless transmission protocol: IEEE 802.11 a/g/n/ac and IEEE 802.15.1

Reach: Max. 30m (100 ft) between ClickShare Button and ClickShare Bar

Frequency band: 2.4 GHZ and 5 GHz (DFS channels supported in select number of countries in network integration mode)

Connections: 1x USB-C 3.1 (DP) to screen, 1x USB-A 2.0, 1x Ethernet LAN 1Gbit, 1x USB-C 2.0 (side)

Temperature range: Operating: 0°C to +40°C (+32°F to +104°F) Max: 35°C (95°F) at 3000m Storage: -20°C to +60°C (-4°F to +140°F)

Humidity: Storage: 0 to 90% relative humidity, non-condensing Operation: 0 to 85% relative humidity, non-condensing

Anti-theft system: Kensington lock (back and bottom)

Certifications: FCC/CE

Touch screen support & Interactivity: No

Wireless conferencing: via App or Button

Local view: Yes

Network connection: LAN & WiFi

Management and reporting: Yes

Warranty: 1 year standard. 5 years coverage upon registering via SmartCare
