Tannoy VX 12-WH Dual Concentric Full Range Loudspeaker (White) - TA-VX12-WH

$969.00

Shipping calculated at checkout.

Tannoy | SKU: TA-VX12-WH

Shipping Availability*

Free Ground Shipping on Most Orders Over $250.00

Looking for the best price or just need expert advise?
Give us a call at 1-888-230-3661 or LiveChat below.
Purchasing 1 or 100, there may be greater savings beyond the advertised price.

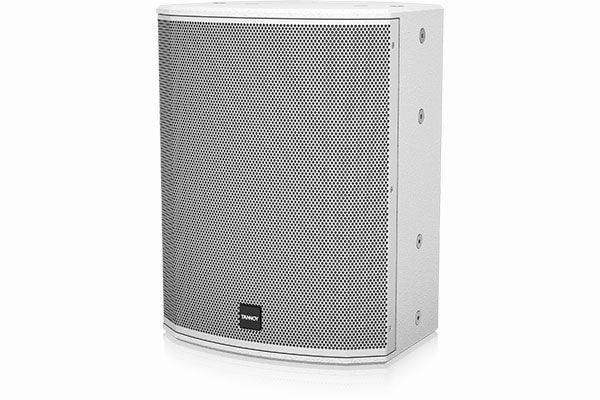

VX 12-WH

The VX 12-WH Dual Concentric Full Range Loudspeaker boasts an exceptional performance-to-size ratio. VX 12-WH provides a compact, yet punchy and sonically articulate solution for small-scale performance sound reinforcement, as well as more demanding background music and high-intelligibility speech applications where clarity and natural vocal reproduction are paramount. Thanks to its twin driver design and flexible mounting options, the VX 12-WH is also ideally suited for use complimenting much larger systems, making it an excellent choice for both installed and portable applications.

Features

Full range multi-purpose sound reinforcement loudspeaker for portable and installation applications
200 Watts continuous, 800 Watts peak power
12" Dual Concentric full range driver for point source phase coherence
Precise 90° dispersion for optimum coverage and forward projection
Ideal for FOH, floor monitor and side fill applications
Vented and internally braced plywood enclosure
Finished with hard wearing semi matt white paint
Rugged powder coated perforated steel mesh grille
Blanking plate for optional VTH pole mount
Optional horizontal and vertical mounting yokes (available separately)
Integrip handles ergonomically integrated into top and bottom of cabinet
Neutrik* speakON NL4 and barrier strip connectors for input and link output
10-Year Warranty Program*
Designed and engineered in the U.K.

System

Frequency response	70 Hz - 25 kHz ±3 dB 55 Hz - 38 kHz -10 dB
Nominal dispersion	90° conical @ -6 dB point
Directivity factor (Q)	9.6
Directivity index (DI)	9.8

Power handling (IEC)

Passive	200 W continuous, 800 W peak
Bi-amp	—
Sensitivity	97 dB (1 W @ 1 m)

Maximum SPL

Passive	120 dB continuous, 126 dB peak
Bi-amp	—

Impedance

Passive	8 Ω
Bi-amp	—
Crossover Type	Passive with HF protection
Components	1 x 12" (305 mm) constant directivityDual Concentric

Enclosure

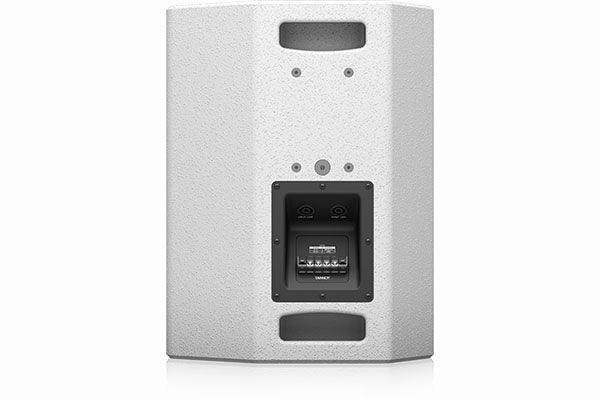

Connectors

2x Neutrik speakON* NL4
1 x barrier strip terminals

Wiring

Passive	Pins 1+ / 1- Input, Pins 2+ / 2- Link
Bi-Amp	—
Dimensions H x W x D	487 x 371 x 361 mm (19.2 x 14.6 x 14.2")
Net weight	16.5 kg (36.3 lbs)
Construction	15 mm (5/8") enclosure / 18 mm (3/4") front, plywood, vented and internally braced
Finish	Semi matt black paint (white optional)
Grille	Powder coated perforated steel
Flying hardware	M10 x 8 flying inserts (portrait or landscape mounting) M10 x 8 yoke bracket inserts 2 x Intergrip carrying handles Blanking plate for optional VTH pole mount Compatible with industry standard brackets M6 x 4 inserts
