Neat NEATBAR-SE Neat Video Bar for use with Zoom & Microsoft Team Systems

Regular price $1,670.00
Shipping calculated at checkout.
Neat  |  SKU: NEATBAR-SE

Shipping Now*

Free Ground Shipping on Orders Over $250.00

See : Neat Bar Bundle with Neat Pad


Data Sheet

The Neat Bar requires a Neat Pad to be purchased with the device.  Please see the NEATBAR-PAD-BUNDLE kit.

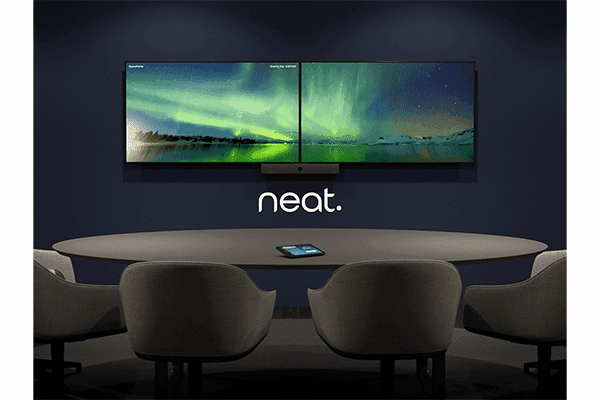

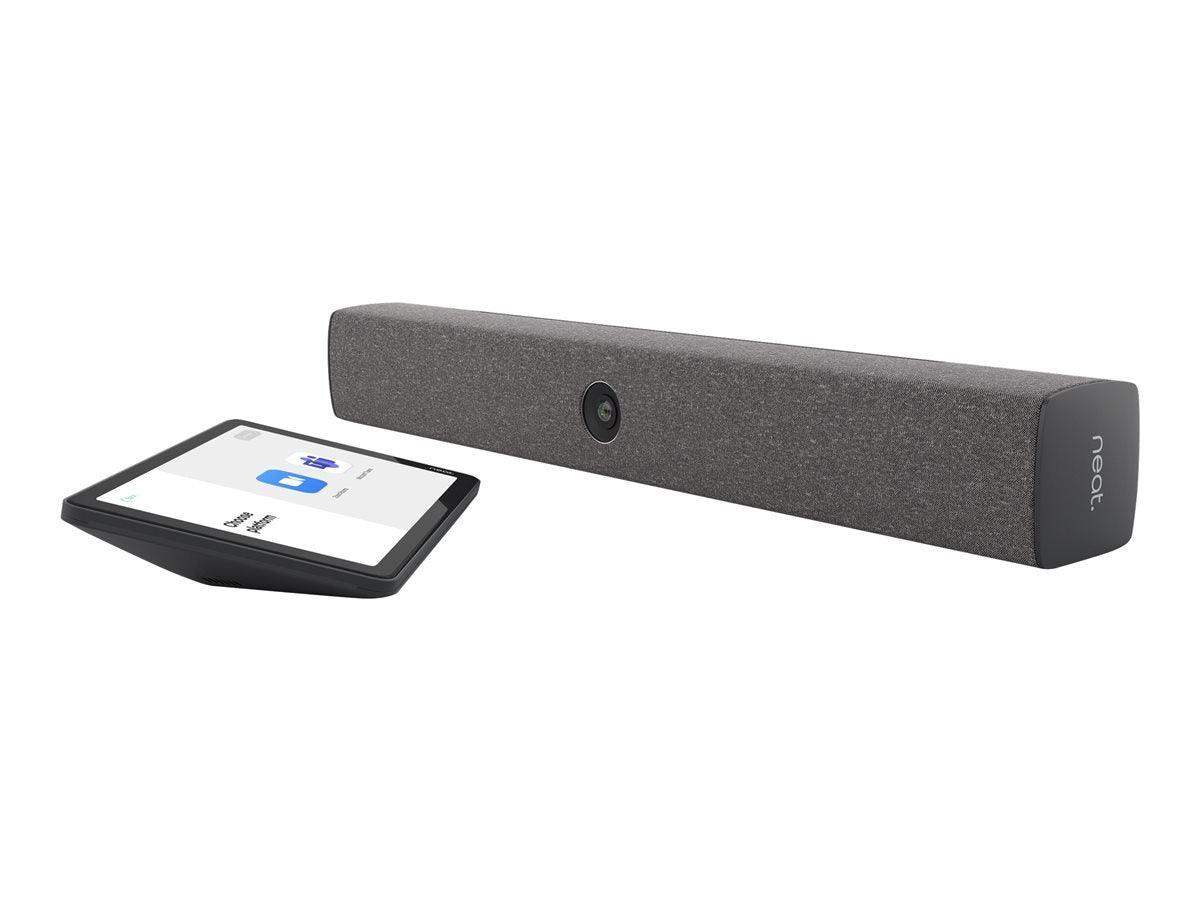

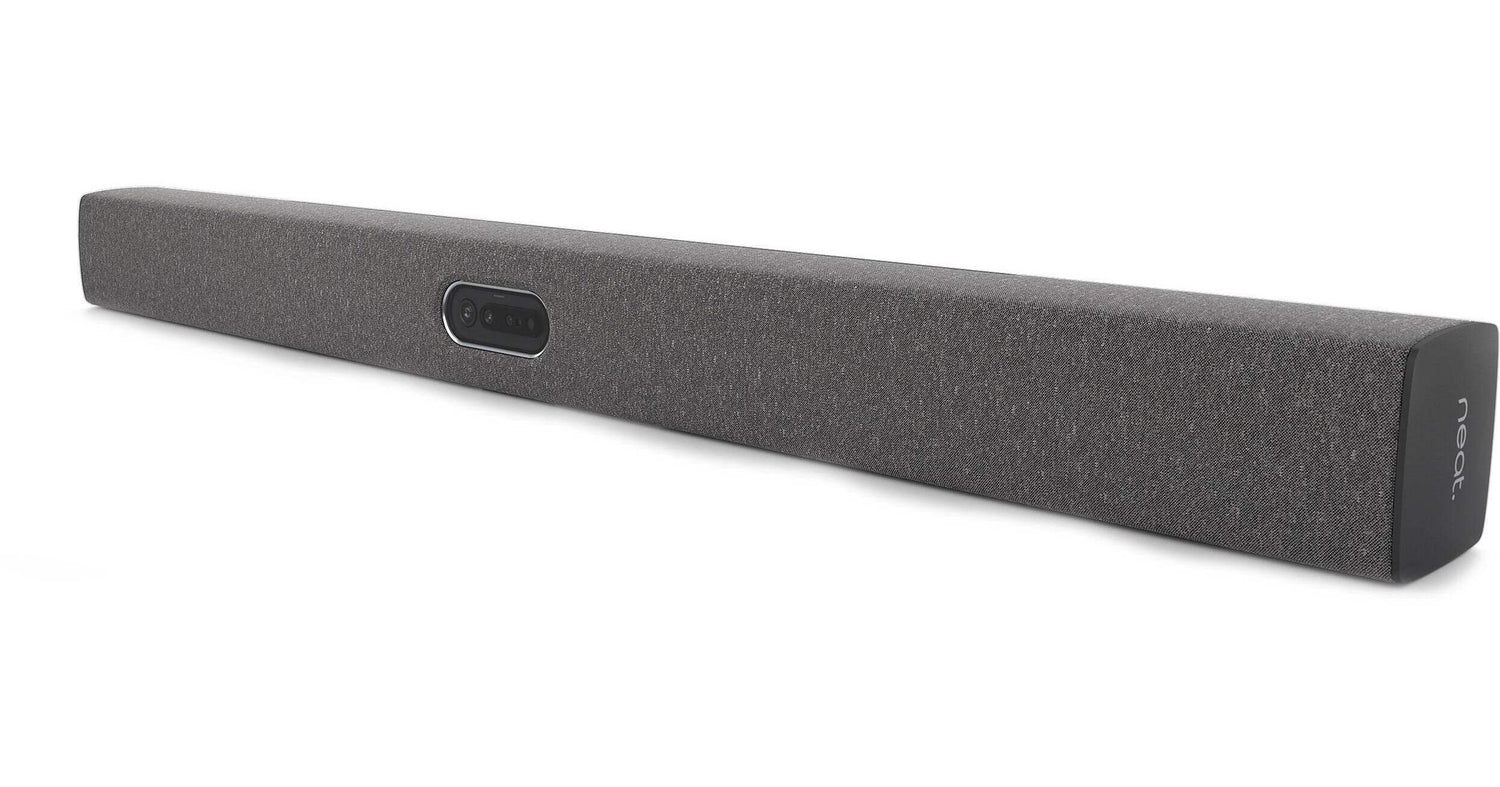

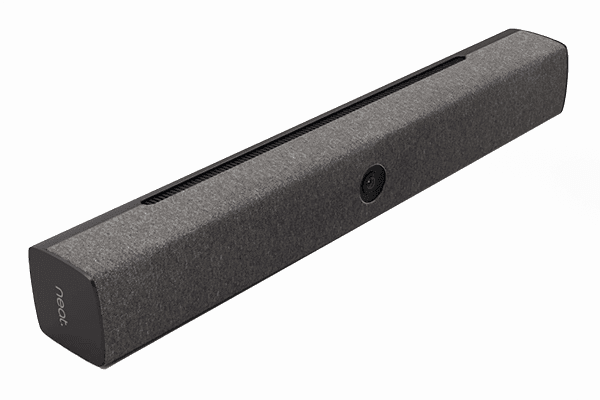

Neat Bar SE is a simple and elegant, compactly designed yet highly capable meeting room device for Zoom or Microsoft Teams. It's perfect for bringing superior-quality audio and video to your meeting, huddle or focus rooms for up to ten people. You can mount Neat Bar above or below one or two monitors, and it comes with Neat Pad, our dynamic touch screen, which you can use to control your meetings or display room availability outside the room.

Everything you need to connect Neat Bar to your TV or monitor is in the box, so it's easy for anyone to install and set up. Just plug in the cables, and Neat Bar will auto-pair with Neat Pad. What's more, because Neat Bar and Neat Pad have auto flip, they instantly realign your view, regardless of how you mount or position them.

Neat Bar SE self-activates the moment you walk in the room, immediately turning on your meeting room monitor and checking you into the room. Then with just one tap, you can wirelessly share your screen or start your meeting. It also instinctively frames you perfectly and auto releases the room when you leave(*).

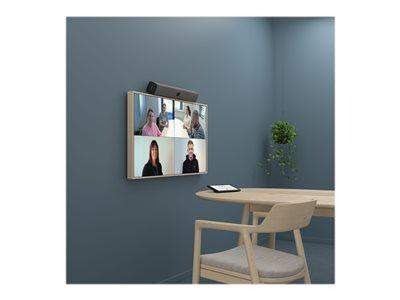

Our snap-on mount is custom made for Neat Bar to fit snugly on top of smaller screens or monitors. The mount attaches to your screen or monitor's back with adhesive tape and is suitable for any display.

Neat Video Bar SE for use with Zoom & Microsoft Teams systems. Includes Bar, integrated camera, microphones and wall, table, and display mounts. (Requires NeatPad-SE) - NEATBAR-SE

 Specifications

General

Camera LED
System LED
Accelerometer
Ambient light sensor
Table stand, wall mount and screen mount
Dual screen support
Security lock slot (Kensington compatible)
Secure boot
BYOD mode (USB passthrough)
Native support for Zoom Rooms
Native support for Microsoft Teams Rooms on Android
Sensors for temperature, humidity, CO2 and VOC (*)



Audio

Speakerbox for maximal tonal range with minimal distortion
Opposing drivers for vibration cancellation
Dedicated wide-angle ultrasonic tweeter
3 sensor mics
5 microphones angled in an end-fire array
Hardware accelerated audio processing
Beamforming
Echo cancellation
Noise suppression
Automatic gain control
Dereverberation

Video

4x digital zoom (optional 8x digital zoom)
4056×3040 (12 MP) capture resolution
120 degrees horizontal field of view
Automatic people framing
Hardware accelerated video encode and decode
Distortion correction
Noise reduction
Chromatic aberration correction
Automatic white balance and color correction



Electrical and environmental requirements

100-240V ~ 50/60Hz 0.5A
Ambient operating temperature: 32° to 95° F (0° to 35° C)
Storage temperature: -4° to 140° F (-20° to 60° C)
Relative humidity: 10% to 90%
Built-in power supply

Power consumption
Idle: 3W
In call: 7-10W

Networking & ports

WiFi
Bluetooth for proximity join in Microsoft Teams
AC Power (internal power supply)
Ethernet
2 × HDMI-out
HDMI-in for screen sharing
USB-C for BYOD mode (USB passthrough)
or input when connected to a touch screen (*)

Size & weight

Width: 21.9 inches (556 mm)
Height: 3 inches (76 mm)
Depth: 3 inches (76 mm)
Weight: 3.75 pounds (1.7 kg)
