RF Venue RF-EXPLORER-PRO RF Explorer Pro, Wireless Audio Design, Deployment and Monitoring Tool

Regular price $1,399.00
Shipping calculated at checkout.
RF Venue  |  SKU: RF-EXPLORER-PRO

Shipping Availability*

Free Ground Shipping on Most Orders Over $250.00

Looking for the best price or just need expert advise?
Give us a call at 1-888-230-3661 or LiveChat below.
Purchasing 1 or 100, there may be greater savings beyond the advertised price.

Free Shipping No Extra Costs*
Easy Returns Return with Ease
Secure Payments Data is Encrypted
Free Shipping No Extra Costs*
Easy Returns Return with Ease
Secure Checkout data is encrypted

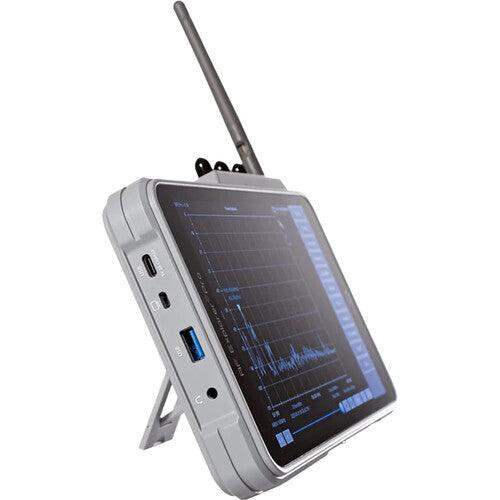

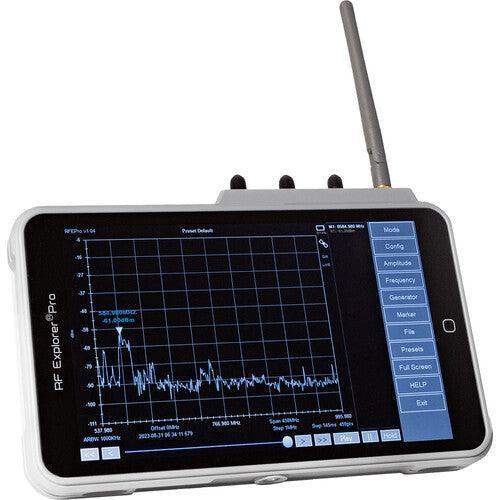

Ensure your wireless microphone or in-ear monitoring system is performing at its best with the RF Explorer Pro from RF Venue, a third-generation, high-performance instrument for wireless audio system design, deployment, and monitoring. With its integrated 6 GHz spectrum analyzer, tracking generator, and frequency coordination and Wi-Fi analysis tools, it offers advanced functionality with an intuitive touchscreen to support any wireless system. This completely portable solution runs for up to 5 hours on it's built-in rechargeable lithium-ion battery and features advanced modes such as Zero Span, Waterfall 2D and 3D views, and Power Channel, providing enhanced flexibility to handle a wide range of scenarios in any venue. A USB charger and padded carrying case are included.

Powerful Analysis Tools to Ensure Reliable Wireless Performance
  • Built-in frequency coordination: the high-performance CPU also enables fast frequency coordination calculations, real-time interference monitoring, and intermodulation analysis right out of the box.
  • Record/Save/Replay spectrum data: automatically save scan data on RAM for easy replay of any event. Additionally, the data can be manually or automatically saved in binary and CSV formats for later use.
  • Continuous monitoring and alerting: stay informed with reliable alerts, including configurable limit lines, to ensure you never miss critical issues during an event.
  • Export data: seamlessly export all captured data to a USB drive for use in other software applications such as RF Venue's free online Wireless System Builder, Shure Wireless Workbench, Audio Technica Wireless Manager, Excel, and more.
Wi-Fi Analyzer
  • RF Explorer Pro also features a dedicated Wi-Fi Analyzer mode built-in for working with wireless data networks and the ever growing list of live performance tools operating in the 2.4 and 5 GHz frequency bands.
  • Wi-Fi Analyzer mode lets you quickly visualize these often congested frequency bands and identify less occupied channels for configuring your system to avoid problems on stage or with your digital mixing console control.
Rich Set of Inputs and Outputs
  • SMA Spectrum analyzer input: interface with BNC adapter or jumper cable to analyze RF from any part of your wireless audio system. Patch into antenna distros, receive antennas, bandpass filters, RF over fiber converters, or other sources to directly measure performance of your system, debug issues, and fine tune performance.
  • HDMI output: connect the RF Explorer PRO to an external display for monitoring RF performance in real time during an event. This is also useful for system configuration and testing to gauge wireless microphone or in-ear monitor coverage range.
Features
  • For Wireless Microphone & In-Ear Systems
  • Hi-Res IPS Capacitive Multitouch Screen
  • 6 GHz Spectrum Analyzer
  • Tracking Generator
  • Frequency Coordination & Wi-Fi Analysis
  • Zero Span, Waterfall 2D and 3D Views
  • Power Channel
  • Up to 5 Hours Built-In Lithium Battery

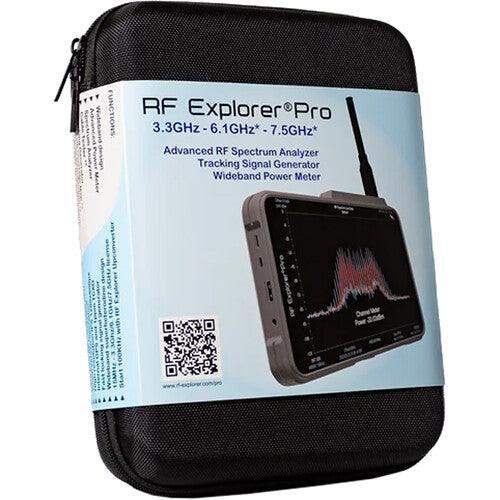

  • Includes USB Charger & Padded Carry Case
Specs
Display
Panel Type
TFT LCD
Display Size
8"
Resolution
1280 x 800
Touchscreen
Yes
Maximum Brightness
250 nits / cd/m2
Inputs / Outputs
USB I/O
1 x USB-A 3.0 / 3.1/3.2 Gen 1 Female Input/Output
Video I/O
1x Micro-HDMI Output
Audio I/O
1x 1/8" / 3.5 mm Output
Media/Memory Card Slot
Single Slot: microSD/microSDHC
Wireless
Wireless
Wi-Fi
*Built-In
Mobile App Compatible
Yes: Android & iOS
App Name: VNC Viewer
Frequency Range
15 MHz to 6 GHz
Resolution
Bandwidth: 3 kHz to 2.5 MHz
Sweep Time
3 GHz / 280 ms, with RBW 2.5 MHz
Sweep Points
512 to 65,000
Dynamic Range
Direct: -110 dBm to +10 dBm
Preamplifier LNA: -130 dBm to -30 dBm
Attenuator: -80 dBm to +33 dBm
Maximum Input Power
+33 dBm with Internal Attenuator Selected
Noise Level
Display Average Noise Level:-130 dBm, Typical LNA
Noise Floor
-160 dBm/Hz
CPU
Advanced Intel 64 Bits
DSP
High-Performance Dual DSP 32 Bits + 16 Bits
Save/Replay
100,000 Sweeps on Memory
Unlimited Sweeps on File
File Format
File Export: Compatible CSV and Binary Formats
Battery
Battery Chemistry
Lithium-Ion
Battery Capacity
4500 mAh
Recharge Time
3 Hours
Maximum Battery Life
5 Hours
Power
DC Input Power
5 VDC at 2 A
Physical
Color
Gray
Cable Length
Not Specified by Manufacturer
Dimensions
8.5 x 5.5 x 1" / 215 x 140 x 25 mm
Weight
1.3 lb / 570 g
