This antenna distribution bundle from RF Venue offers a turnkey solution to achieve professional-quality RF signal distribution for up to nine wireless microphones.

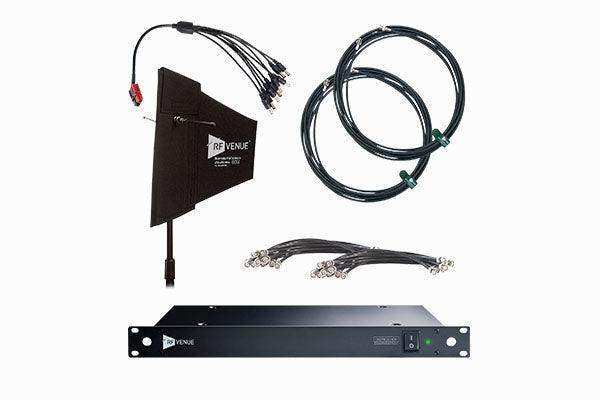

The bundle includes a black Diversity Fin antenna with a threaded mounting block for mounting it on a stand, a high-performance DISTRO9 HDR 9-channel multi-zone antenna distributor, a set of premium, low-loss double-shielded coaxial cables, and a DC Power Cable kit.

From high-profile live sound events, to film and TV productions, to routine installations in schools and houses of worship, this all-purpose antenna distribution system is ideal for diversity microphones of any brand.

The DISTRO9 HDR is designed and assembled in the USA and ETL listed in the USA and Canada.

Features
  • Antenna Distribution for Wireless Mics
  • Diversity Fin Antenna/Stand Mount
  • DISTRO9 HDR Antenna Distributor
  • DC Power Cable Kit, Coaxial Cables
Specs
DISTRO9 HDR Antenna Distributor
Frequency Range
50 to 1000 MHz (VHF, UHF, +900 Bands)
RF Output Level
Gain: ± 3 dB
Output Connection Isolation
60 dB at 510 MHz, 80 dB at 200 MHz
Third Order Intercept Point
15 dBm at VHF, 20+ at UHF
Impedance
50 Ohms
Power Requirements
50/60 Hz, 2 A
Fuse
T3.15a / 250 V
Input AC Voltage
100 to 240 VAC
Output Voltage
To Receiver Jacks: 12 VDC, 3 A
Connectors: Anderson Power Pole
Dimensions
18.9 x 1.8 x 9.8" / 48 x 4.5 x 25 cm
Weight
6 lb / 2.7 kg
Diversity Fin Antenna
Color
Black
Output Connector
2 x BNC, Female
Electrical
Operating Frequency: 470 to 698 MHz
Bandwidth: 228 MHz
Average Return Loss: -9.4 dB
Impedance: 50 Ohms
LPDA
Beam Width: 140° Azimuth
F/B Ratio: -8 dB
F/S Ratio: -5 dB
Gain: 5 dBd
Mount Threads
1/4"-20, 3/8"-16, 5/8"-27
Dimensions
L x H: 11.8 x 14.5 / 300 x 370 mm
Weight
1 lb / 454 g
