Renkus-Heinz IC8-RD Digitally Steerable Line Array Loudspeaker Systems
Renkus-Heinz IC8-RD Digitally Steerable Line Array Loudspeaker Systems - Black is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or just need expert advise?
Give us a call at 1-888-230-3661 or LiveChat below.
Purchasing 1 or 100, there may be greater savings beyond the advertised price.

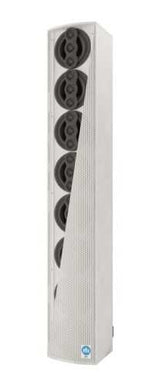

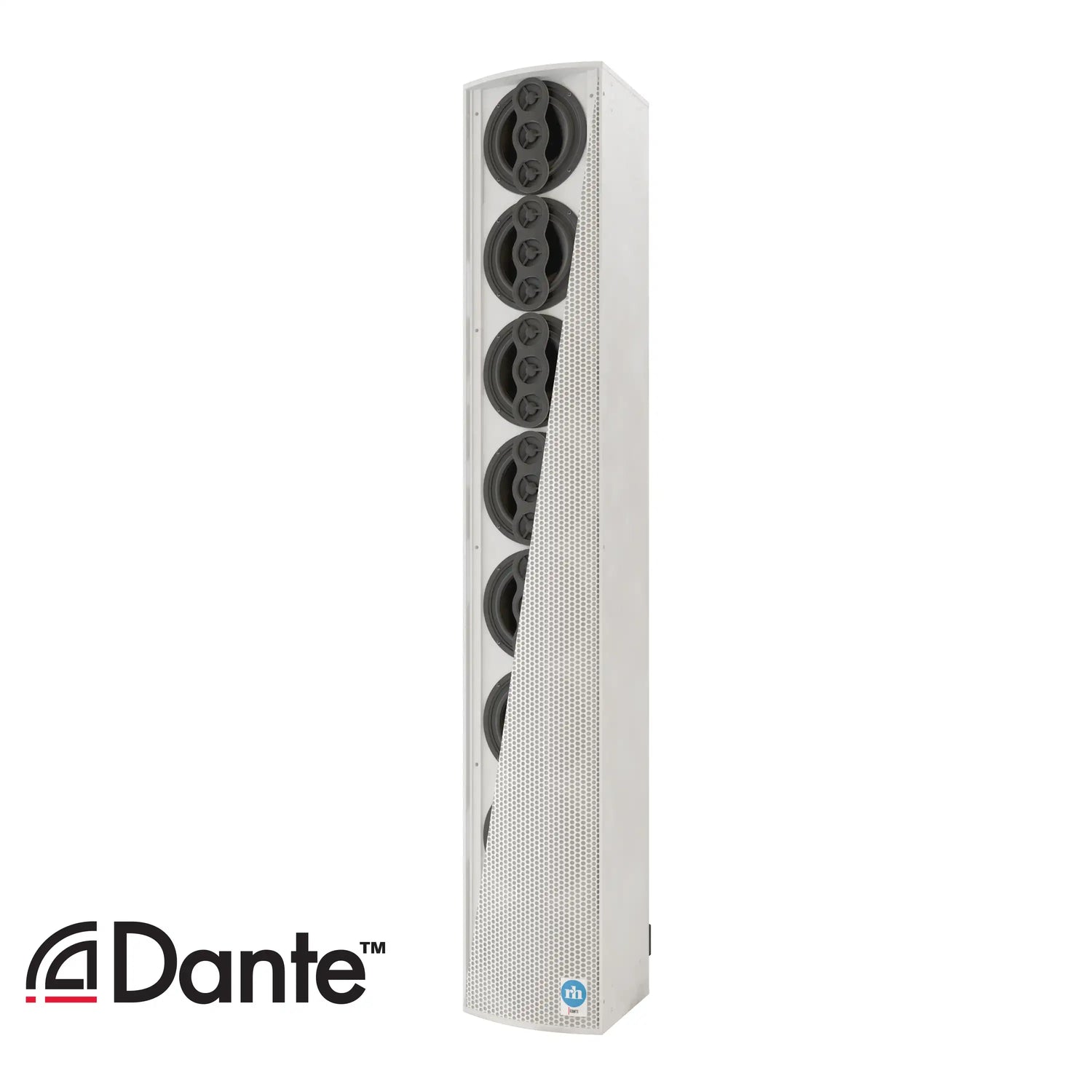

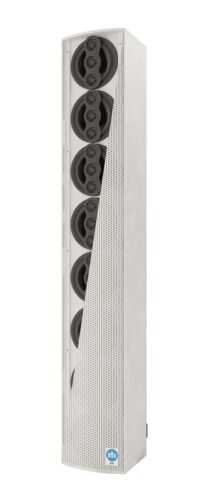

Renkus-Heinz IC8-RD Digitally Steerable Line Array Loudspeaker Systems
Since 2005 Renkus-Heinz have been leading the field in Digitally Steerable loudspeakers.
ICONYX has now been installed in thousands of project worldwide, from LAX International Airport in Los Angeles to the Great Hall of the People in Beijing, China.
Truly the most flexible, powerful and architecturally seamless, Digitally Steerable Column Array on the market Iconyx brings intelligible sound to even the most demanding acoustic environments.
IC8-RD
Advanced Steered Beam Technology
• Dual Redundant Dante Connectivity
• RHAON II Control and Dante audio delivery over the same Dante network connection
• Fifth Generation
• 8x 4″ Coaxial Transducers each with three HF tweeters
• 8x Amplifier and DSP channels
• Beam control effective down to 800Hz
• Multiple beams and multiple acoustic beam centers
• Multiple Configuration Presets
• Slim, Low-Profile Design
ICONYX technology gives sound system designers the power to create a system to cover even the most problematic spaces. Up to four steerable beams can be individually shaped and aimed from a single IC8-RD column using the powerful software-controlled DSP.
Multichannel audiophile amplifiers power arrays of purpose-designed coaxial transducers, each with its own triple tweeter high frequency array. This triple tweeter “array within an array” design reduces the distance between HF sources for greatly improved high frequency performance with consistent, broad horizontal dispersion.
Technical Information |
||
| Sensitivity: | 1.4 V (for rated power output) | |
| Freq. Range: | 80 Hz to 20 kHz (-10 dB | |
| Max SPL: | 130 dB peak, (100 dB @ 100 Ft. (30.5 meters)) | |
| Power Consumption: | Idle: 0.5 A (120 V) / 0.25 A (240 V)
1/8 Power: 1.1 A (120 V) / 0.6 A (240 V) (onset of limiting) 1/3 Power: 2.9 A (120 V) / 1.6 A (240 V) (hard limiting) |
|
| Horiz. Dispersion: | 150° up to 3 kHz; 120° above 3 kHz | |
| Vert. Opening Angle: | 20°, 25° and 30° | |
| Vert. Aiming Angle: | Adjustable from -30° to +30° | |
| Typical Throw: | 66 Ft. (20 meters) | |
| Beam Control: | Effective down to 800 Hz | |
| System Latency: | 8ms analog input to outputPreset 0 | |
| No. Transducers: | 8 coaxial transducers, each having triple tweeters | |
| No. Amp. Channels: | 8 | |
| Transducers: | Coaxial with a 4” woofer and triple 1” tweeters, RH model SSL4-7; 25 W RMS, 50 W Pgm | |
| Inputs: | Analog Audio: 2 balanced inputs on Phoenix ConnectorsAES/EBU: Phoenix ConnectorDual RJ45 connectors for Ethernet Control | |
| Computer Controls: | Gain, Mute On/Standby Input SelectionCompression8-Band Parametric EQShelving &Rolloff FiltersDelayPreset Configuration Selection | |
| Status Indicators: | PowerSignalOverdriveThermalMuteInput PadPreset Configuration Selection Readout | |
| Hanging Method: | 2-point hinges or Metric M6 thread eye-bolts | |
| Enclosure: | Extruded Aluminum with perforated steel grille | |
| Finish: | White paint standard Optional finishes: black and custom color paintWeather resistant | |
| Weight: | 36 Lbs (16.3 kg) Net | |
| Dimensions: | 37 11/16” H x 6 1/8” W x 7 5/16″ D (957mm x 156mm x 186mm)(includes Mounting Hinges) | |
