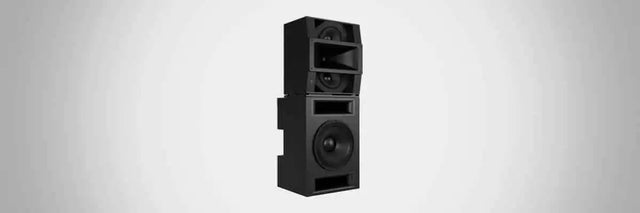

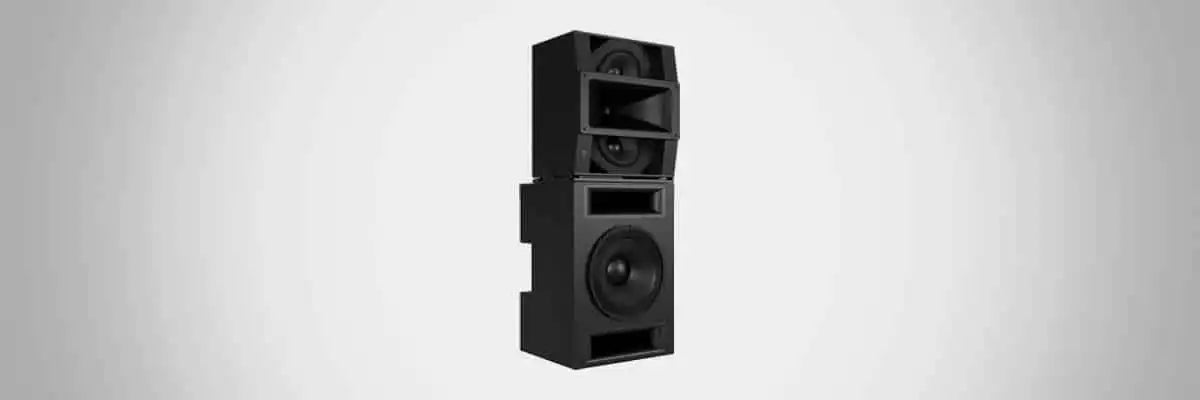

Meyer Sound ASTRYA-140 Screen Channel Loudspeaker - 09.329.001.01
A revolution in cinema sound that transforms the movie experience.
A self-powered powerhouse
ASTRYA-140 is a fully-integrated loudspeaker including power amplifier, signal processing, DSP, and network interface. No more guessing which amplifier to use, and no more costly and long speaker cables. Everything is fully-optimized and streamlined for easier installation and better translation from stage-to-stage, studio-to-studio, and studio-to-exhibitor.
Bigger impact, smaller footprint
Because of its concentric driver configuration, the total cabinet size is vertically reduced, and the entire system performs more like a cohesive point source.
No distortion, just emotion
ASTRYA-140 allows you to reach reference levels in linear fashion for any given room size with zero distortion and at least 20 dB of headroom. Power compression, distortion, and mechanical limits are a thing of the past. It’s built to support the upper bound of any dubstage, screening room, or cinema space.
Elevated highs, extended lows
For filmmakers, ASTRYA-140 expands the sound pallet and creative possibilities with its extended frequency spectrum from 30Hz to 20kHz. Deeper LF extension allows sound designers to push low frequencies to the screen when desired. An extended upper HF pushes any possible HF distortion out of the range of hearing and provides more than enough HF energy to overcome the effects of screen losses.
Hear every subtle sonic detailPatented Meyer Sound technology results in a linear phase response from 40Hz to 20kHz. The result is relative equal time arrival of all frequencies in its spectra, delivering a pure and natural soundscape that perfectly matches the image on screen, fully immersing the audience in the story. |
The quietest, loudest screen channel loudspeakerASTRYA-140’s AES67 digital input means a fully digital signal path from the server to the loudspeaker, minimizing digital to analog conversions and lowering the noise floor to below audibility. |
 |
 |
Specs
ASTRYA-140 Dimensions
 |
|
 |
ASTRYA-140 Specifications
|
ACOUSTICAL |
||
|
Operating Frequency Range |
30 Hz - 20 kHz, ± 3 dB |
|
|
Phase Response |
40 Hz - 22 kHz, ± 45º |
|
|
Dynamic Range1 |
126 dB |
|
|
AES75 Maximum Linear Sound Levels |
126.5 dBZ, 142.6 dBZpk with an RMS input level of -16.8 dBFS digital |
|
|
SMPTE ST-2095 Maximum Linear Sound Levels (2π) |
129.8 dBZ, 142.7 dBZpk with an RMS input level of -18.3 dBFS digital |
|
|
APPLICATION |
||
|
Application |
Screen Channel |
|
|
Maximum Reference Listening Position2 |
95 feet (29 m) |
|
|
Maximum Room Length2 |
140 feet (42.6 m) |
|
|
CROSSOVER POINTS |
||
|
Low to Mid |
95 Hz Nominal |
|
|
Mid to High |
500 Hz Nominal |
|
|
COVERAGE |
||
|
Horizontal Coverage |
100° |
|
|
Vertical Coverage |
60° |
|
|
PHYSICAL |
||
|
Weight |
310 lbs. (140.6 kg) ± 5 lb (2.3 kg) |
|
|
Enclosure |
Premium multi-ply birch, slightly textured black finish |
|
|
Rigging |
MH to LF connecting hardware, allows MH ± 30 deg pan, ± 20 deg tilt Floor mounting brackets included |
|
|
IEC Ingress Protection Rating (IP Rating) |
Indoor use only |
|
|
AC POWER |
||
|
Connector |
Neutrik powerCON® TRUE1 TOP |
|
|
Operating Voltage Range |
200 – 240 V AC, 50 or 60 Hz |
|
|
POWER CONSUMPTION |
||
|
Max Long-Term Continuous Power (>10 sec)3 |
1100 W |
|
|
Burst Power (<1 sec) |
2500 W |
|
|
DIGITAL AUDIO INPUT |
||
|
Connector |
Neutrik etherCON® TOP |
|
|
Digital Format |
AES67, SMPTE 2110 Compliant |
|
|
MONITORING |
||
|
Telemetry |
Loudspeaker telemetry transmitted via the Ethernet port, displayed in software |
|
|
TRANSDUCERS |
||
|
Low Frequency |
One 21-inch long-excursion cone driver |
|
|
Mid Frequency |
Two 12-inch long-excursion cone drivers |
|
|
High Frequency |
One 4-inch diaphragm compression driver coupled to a horn |
|
