Extron Classroom or Training Room Bundle
Extron Classroom or Training Room Bundle is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for a specific Extron product or custom AV solution? Our certified experts can source any Extron device to meet your project requirements. Please contact Creation Networks for a personalized quote or to learn more about our certified Extron design, programming, installation and maintenance services for conference rooms, auditoriums, training centers, and hybrid collaboration spaces. Creation Networks offers direct technical support during the initial Extron implementation and future support of Extron products as needed.
Extron Classroom or Training Room Bundle
SPACE REQUIREMENTS

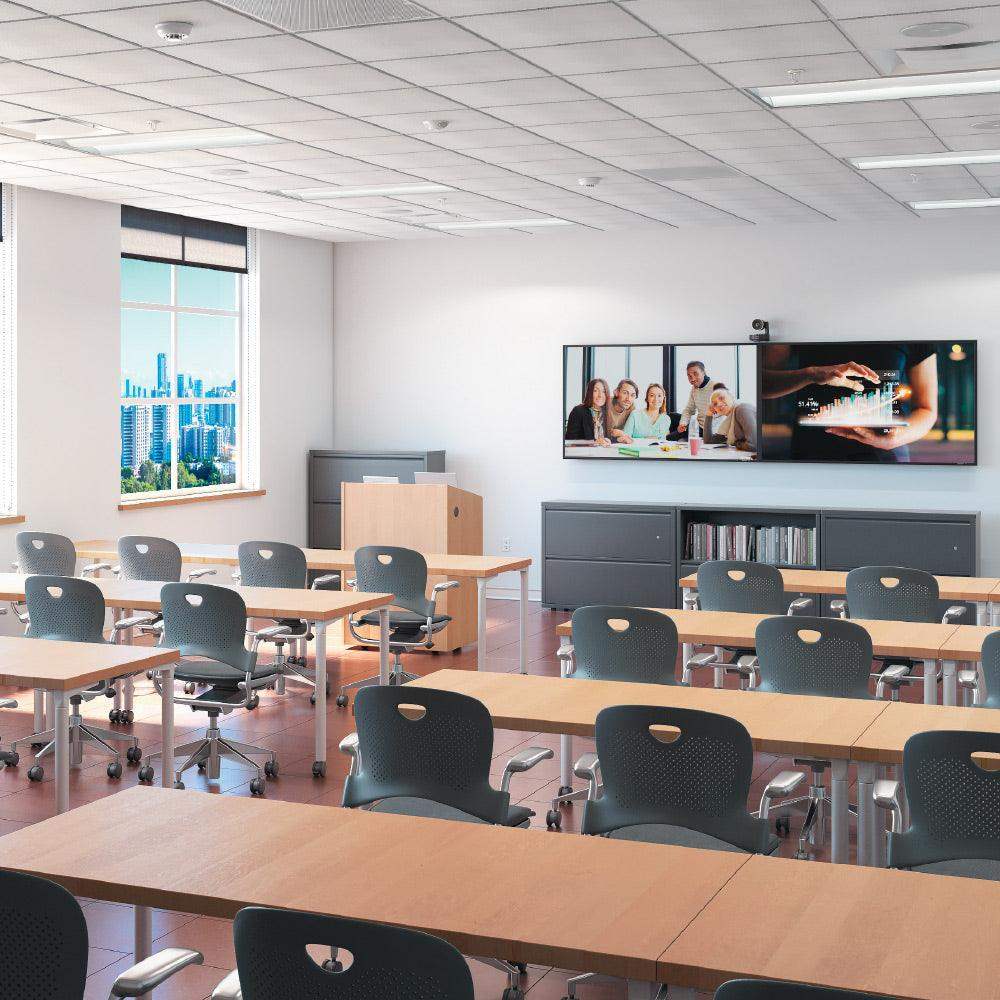

Typical classrooms accommodate up to 18+ people and include Zoom Rooms conferencing capabilities for remote learning. This system includes dual displays, a Zoom Rooms Computer for Zoom Rooms conferencing, as well as a single camera. The room size and use require an audio system with high intelligibility and even sound distribution from ceiling mounted speakers. Ceiling mounted microphones enable in-room student participation.

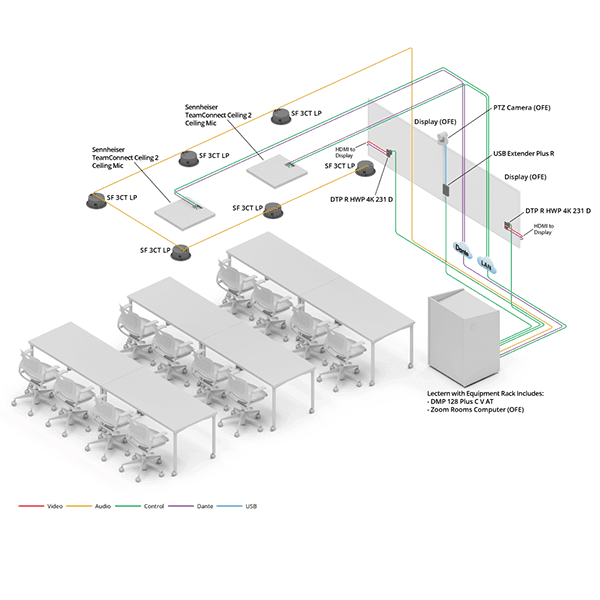

Extron Classroom or Training Room Setup Guide

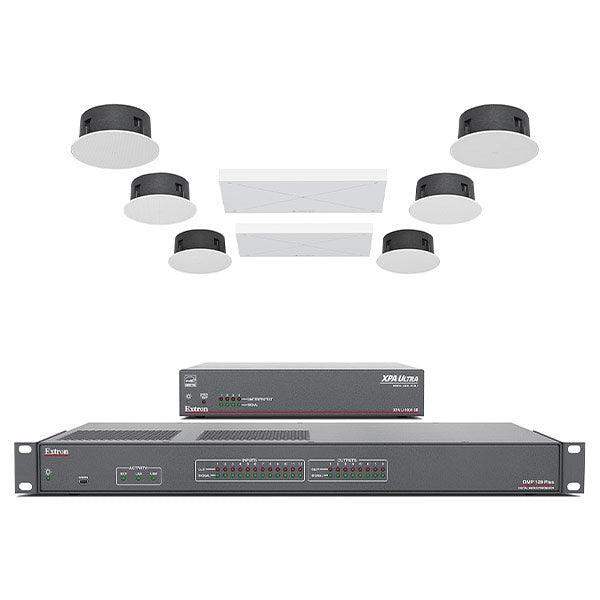

EXTRON EQUIPMENT LIST
| DMP 128 Plus C V AT | 12x8 Digital Matrix Processor w/ AEC, VoIP, & Dante | 1 |
|---|---|---|
| XPA U 1004 SB | Four Channel Bridgeable Output Amplifier | 1 |
| SF 3CT LP | 3" Full-Range Ceiling Speakers, 70/100V, Pair | 3 |
| SPK14P/1000 | 14 AWG Plenum Speaker Cable - 150' (45.7 m) | 1 |
| USB CFG Cable | USB A Male to USB Mini B Male 6' (1.8 m) | 1 |
| Audio Cable | Balanced audio cable for Audio DSP output to Amplifier Input - 6' (1.8 m) | 1 |
| Network Cable | Cat-6 Plenum network cable - 50' (15.2 m) | 2 |
| Network Cable | Cat-6 Plenum network cable - 35' (10.7 m) | 2 |
| Network Cable | Cat-6 Non-Plenum network cable - 6' (1.8 m) | 1 |
SENNHEISER EQUIPMENT LIST
| TeamConnect Ceiling 2 | Beamforming Ceiling Microphone array | 2 |
|---|---|---|
| SL CM EB US | 2' x 2' Flush-mounted Kit | 2 |
NETWORK SWITCH
| Network Switch | 10 port PoE network switch | 1 |
|---|
ADDITIONAL REQUIRED EQUIPMENT
| Zoom Rooms Computer | Zoom Rooms Computer with Camera and Control interface | 1 |
|---|
CAPABILITIES
- Connect the room with a Zoom Rooms meeting
- Exceptional intelligibility with Extron AEC and the Sennheiser TeamConnect Ceiling 2 microphone array
- Enterprise level routing flexibility and device compatibility with Dante AoIP
- Clear audio playback
