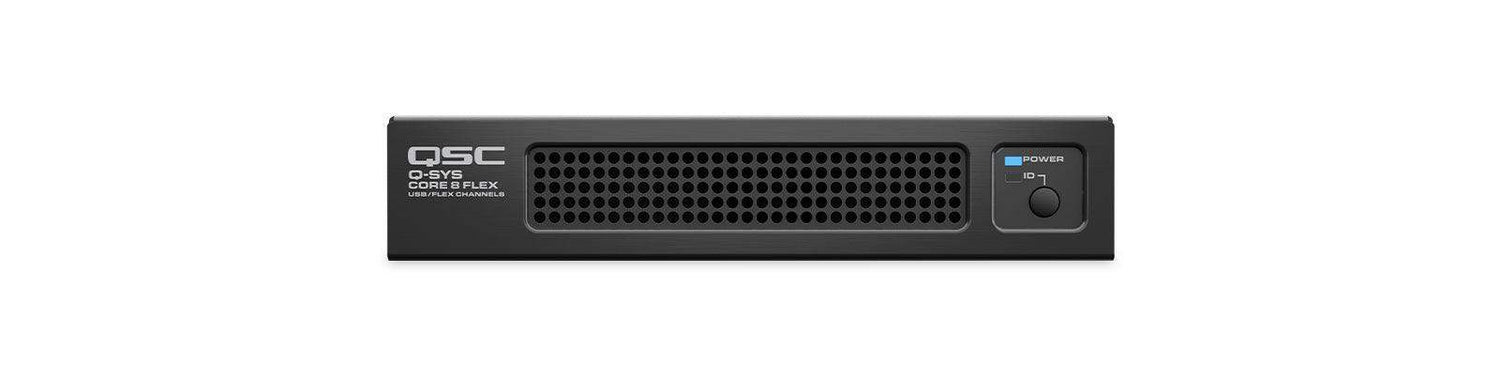

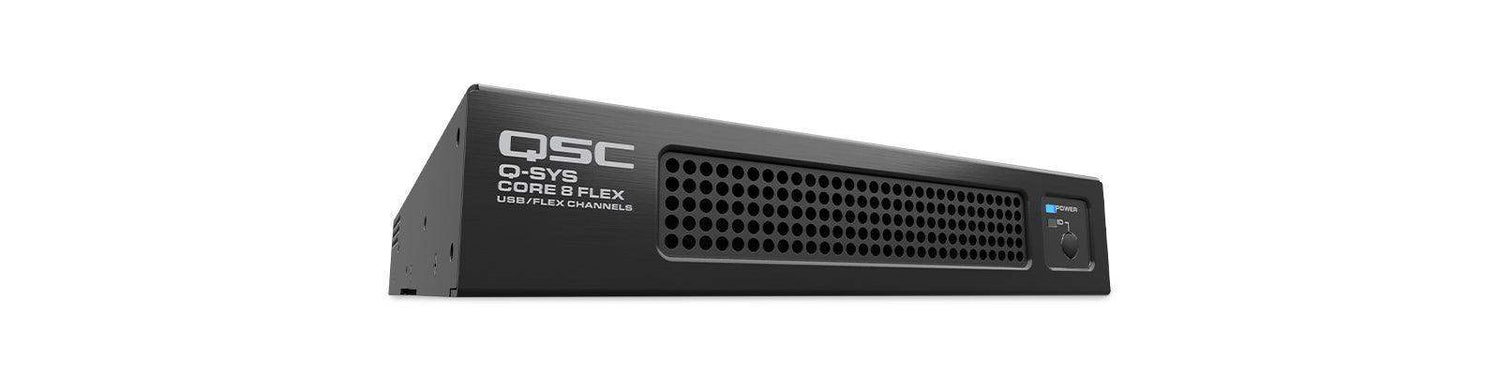

Q-SYS Core 8 Flex AV&C Processor – Scalable Audio, Video & Control for Modern Spaces

Compact, Flexible, and Powerful AV Processing for Commercial Environments

The Q-SYS Core 8 Flex is a high-performance audio, video, and control (AV&C) processor purpose-built for modern installations that demand robust functionality in a compact form factor. Designed to serve small to mid-sized spaces, this processor is an ideal solution for AV integrators seeking scalable, software-based signal processing and control.

Built on the same flexible software architecture as the Q-SYS Core 110f, the Core 8 Flex supports advanced processing and native integration across a wide range of AV environments—without the need for additional hardware or control processors.

Key Features & Capabilities

• 64 x 64 Networked Audio Channels via Q-LAN / AES67

• 8 Onboard Flex I/O Channels + 8 GPIO Inputs for seamless analog and control integration

• 8 Channels of Acoustic Echo Cancellation (AEC) for clear conferencing audio

• Software-based Dante Integration (8x8 included, scalable to 32x32)

• USB AV Bridging for plug-and-play support with Q-SYS cameras and audio interfaces

• Dual Gigabit Ethernet Ports with assignable application resources and redundancy

• 2 VoIP Softphone Instances for enterprise telephony integration

• Full Q-SYS Control Engine with third-party control support and automation

• Half-rack 1U Form Factor with included mounting hardware

• Internal Power Supply for streamlined installation

Applications

Perfectly suited for:

• Boardrooms

• Conference rooms

• Classrooms and lecture halls

• Houses of worship

• Government and public agency buildings

• Healthcare facilities

• All-hands rooms and multi-purpose spaces

• Commercial meeting spaces

• Training centers and auditoriums

Benefits & Differentiators

Right-Sized for Efficiency

Unlike traditional processors that waste valuable rack space with unused analog ports, the Core 8 Flex is optimized with just the right I/O for targeted installations—without sacrificing processing power.

Integrated Control Platform

Eliminate the need for external control processors. The Core 8 Flex provides a robust, software-based control engine capable of handling third-party device automation, scheduling, and monitoring.

Flexible USB AV Bridging

Ensure seamless integration with video conferencing platforms such as Zoom, Microsoft Teams, and Webex, thanks to USB AV bridging and Q-SYS camera support.

Scalable within the Q-SYS Ecosystem

Enjoy complete software interoperability with the broader Q-SYS platform. Easily scale your installation without redesigning configurations—saving time, cost, and complexity.

Competitor Comparison

How the Core 8 Flex Outperforms Typical AV Processors

• Built-in Software Flexibility: Competing models often require proprietary control modules. The Core 8 Flex includes an open, scriptable control engine.

• Integrated AEC + Dante + VoIP + USB AV Bridging: Many processors require multiple external boxes or license upgrades to match this all-in-one feature set.

• Reduced Footprint: Half-width 1U chassis saves rack space—ideal for environments where space is limited.

• Unified Ecosystem Integration: Eliminates the need for siloed control systems or third-party middleware.

• Easier System Scaling: Retain configuration files and scale up without major reprogramming.

Comparison Table
