- Dual Channel
- (2) 1/4” 50k Ohm TS Inputs
- (2) XLR Transformer-Isolated 600 Ohm Input/Outputs
- Passive Circuit Design
- Continuously Variable Input Attenuator
- Ground Lift Switch
1
of
3
Loading...
Product Questions? Ask Our Experts!
888.230.3661
sales@creationnetworks.net
Contact us today for your best package pricing and product availability.
20% off
DBX DJDI 2-channel Passive Direct Box - DBXDJDI
Sale price
$80.00
Regular price
$100.00
Unit price
/
Unavailable
Shipping calculated at checkout.
DBX | SKU:
DBXDJDI
DBX DJDI 2-channel Passive Direct Box - DBXDJDI is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or just need expert advise?
Give us a call at 1-888-230-3661 or LiveChat below.
Purchasing 1 or 100, there may be greater savings beyond the advertised price.
DBX DJDI 2-channel Passive Direct Box - DBXDJDI
Sale price
$80.00
Regular price
$100.00
Unit price
/
Unavailable

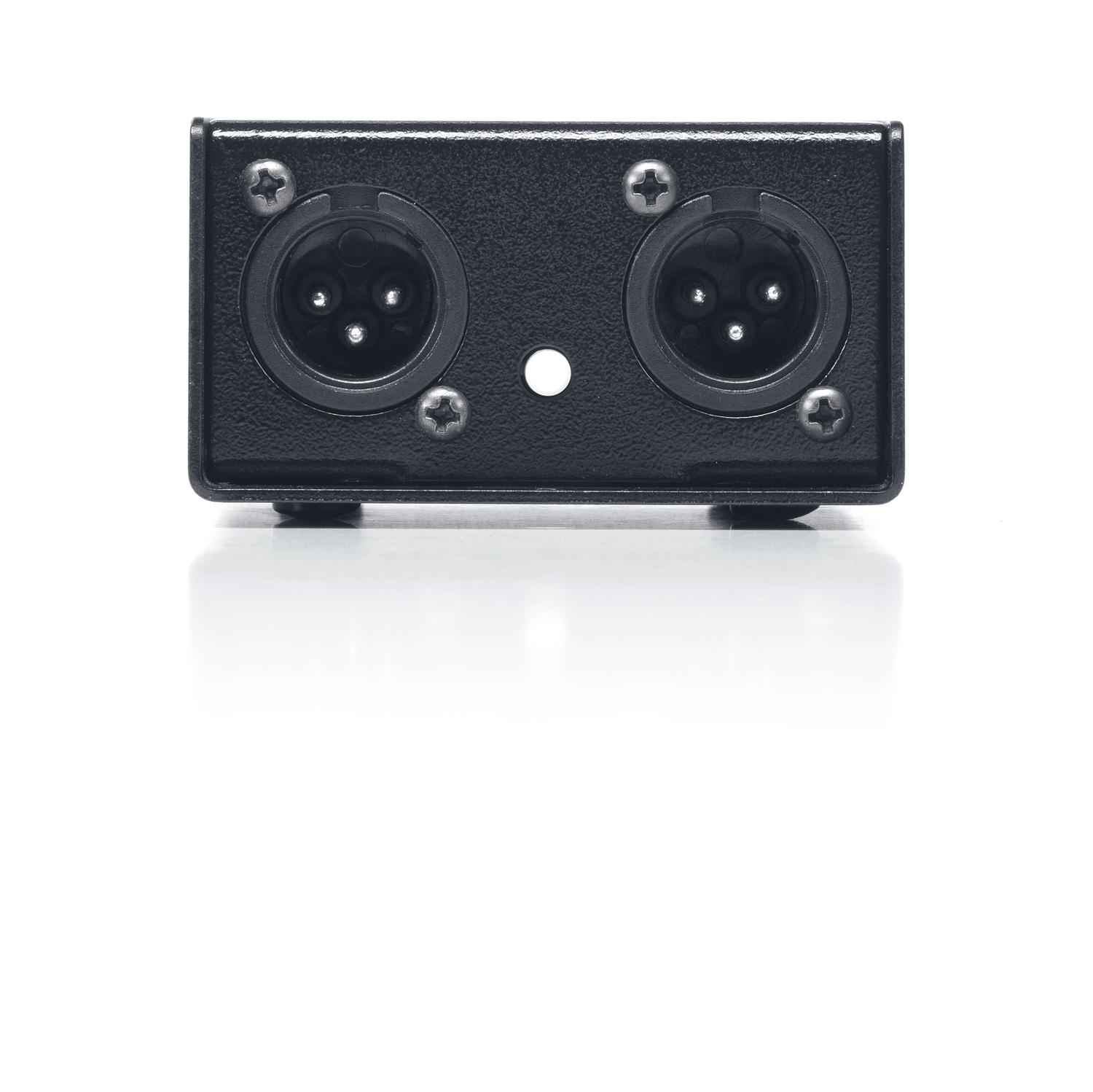

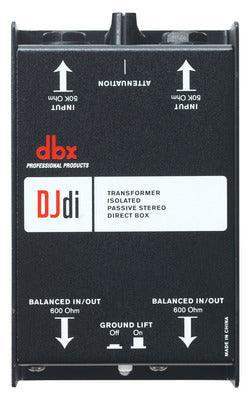

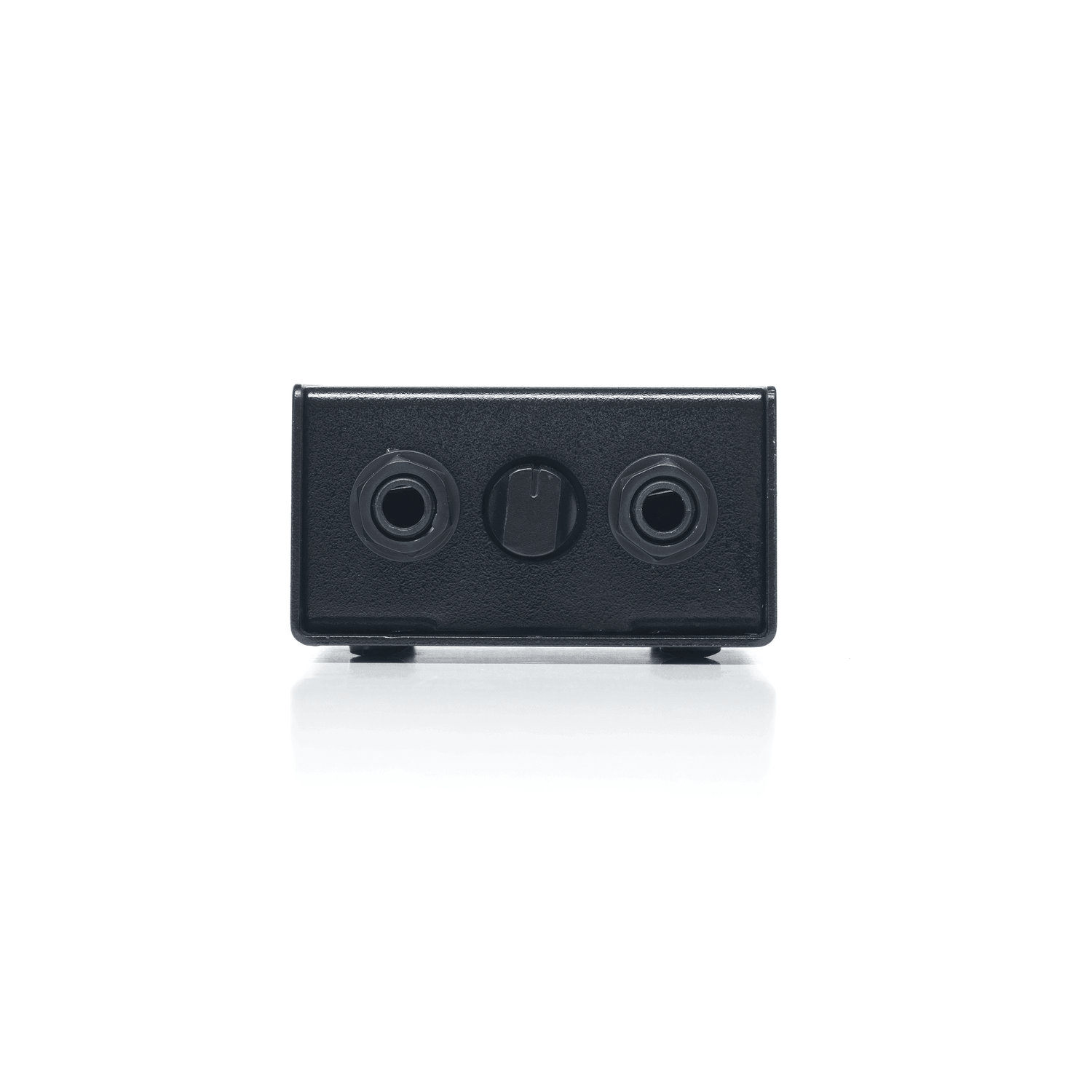

The 2-channel passive DJdi is designed to be used as a standard tool for many audio applications. Offering two channels, the DJdi easily solves the problem of converting unbalanced signals into balanced output suitable for use with mixers, PAs, recording consoles and more. The continuously variable input signal attenuator can accommodate a wide range of signal levels and its passive design means clean, quiet and uncolored operation with no power required.
Features
Specs
| Circuit | Passive |
| Inputs | 2 |
| Input Connectors | 1/4” TS (Tip Hot, Sleeve Ground) |
| Input Type | Unbalanced, RF Filtered |
| Input Impedance | 50 kOhm |
| Outputs | 2 |
| Output Connectors | Male XLR, Balanced, Pin 2 hot |
| Output Impedance | 600 Ohms |
| Noise Level | -104dBu (22Hz -22kHz, Input Shorted) |
| THD+N (10Hz-22kHz) | 0.23% typical @ +4dBu @ 1kHz |
| Insertion Loss | 21dB typical |
