Crestron Cresnet® Hub - CNXHUB
The CNXHUB is a six-segment Cresnet® hub designed to facilitate the configuration of large Cresnet networks. A Cresnet hub is ordinarily required for any Cresnet network that has more than 20 devices or 3000 feet (914 meters) of cable.
NOTE: For maximum Cresnet performance and reliability, use an Ethernet to Cresnet Bridge (DIN-CENCN-2 or DIN-CENCN-2-POE).
The Cresnet® Bus
Cresnet is the communications backbone for many Crestron® keypads, lighting controls, shade motors, thermostats, occupancy sensors, and other devices that don’t require the higher speed of Ethernet. It provides a dependable and flexible wiring solution, allowing multiple devices to be wired together in parallel using both home-run and daisy-chain topologies. The Cresnet bus distributes bidirectional data communication and 24VDC power to each device over a single 4-conductor cable.Six-Segment Cresnet Hub
Without a Cresnet hub, the Cresnet bus supports a maximum of 20 devices and a maximum aggregate cable length of 3000 ft (914 m). Adding a Cresnet hub improves reliability for larger networks. A Cresnet hub divides the network into multiple isolated segments, each capable of supporting another 20 devices with 3000 ft (914 m) of additional cabling.[1]Under-Table or Rack-Mountable

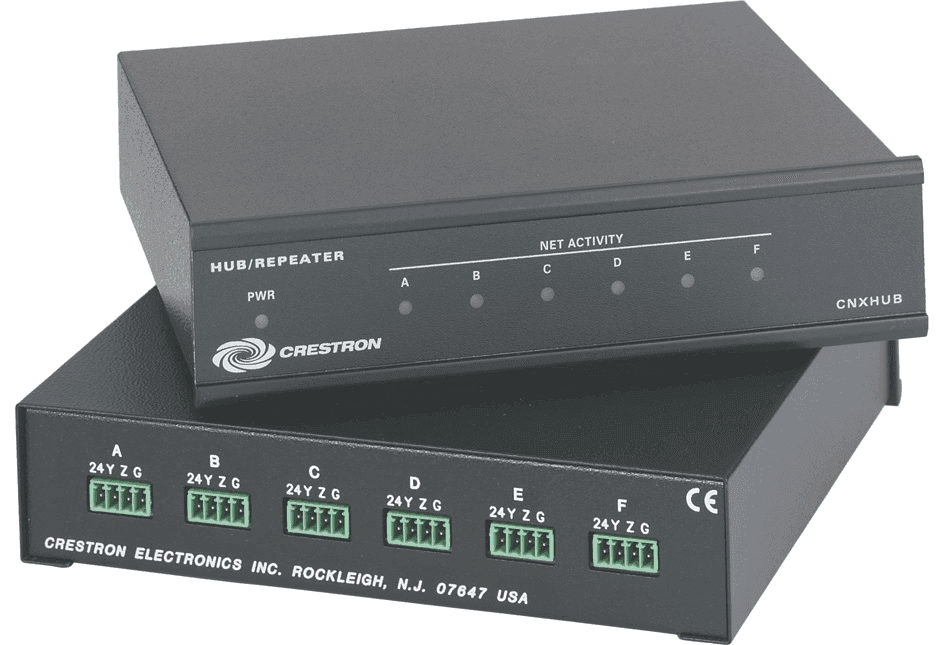

The CNXHUB is housed in a compact metal enclosure that can be placed on a shelf, attached under a table, or mounted in a 19” equipment rack. Its 1RU half-width form factor allows it to fit in a single rack-space alongside a second CNXHUB or other 1RU half-width Crestron device.[2]
Features
- Enables the configuration of large Cresnet® networks
- Provides six isolated Cresnet segments
- Supports 20 Cresnet devices per segment [1]
- Supports 3000 ft (914 m) aggregate cable length per segment [1]
- No programming required
- Single-space, half-width 19-inch rack-mountable [2]
- Under-table mountable [2]
- Cresnet network powered
Specification
| Connectors | ||
| NET A – F | (6) 4-pin 3.5mm detachable terminal blocks comprising (1) Cresnet® port per each of (6) segments | |
| Indicators | ||
| PWR | (1) green LED, indicates Cresnet power is supplied to the unit via any NET port | |
| Net Activity A – F | (6) yellow LEDs, each indicate Cresnet bus activity at the corresponding NET port | |
| Power Requirements | ||
| Cresnet Power Usage | 2 Watts (0.084 Amp @ 24 Volts DC) | |
| Environmental | ||
| Temperature | 41° to 113° F (5° to 45° C) | |
| Humidity | 10% to 90% RH (non-condensing) | |
| Enclosure | ||
| Chassis | Metal, black finish | |
| Front Panel | Metal, black finish, polycarbonate label overlay | |
| Mounting | Freestanding, under-table mountable, or 1RU half-width rack-mountable (adhesive feet included, under-table and rack mounting kits sold separately) | |
| Dimensions | ||
| Height | 1.70 in (44 mm) | |
| Width | 7.07 in (180 mm) | |
| Depth | 6.32 in (161 mm) | |
| Weight | ||
| 1.91 lb (0.86 kg) | ||
