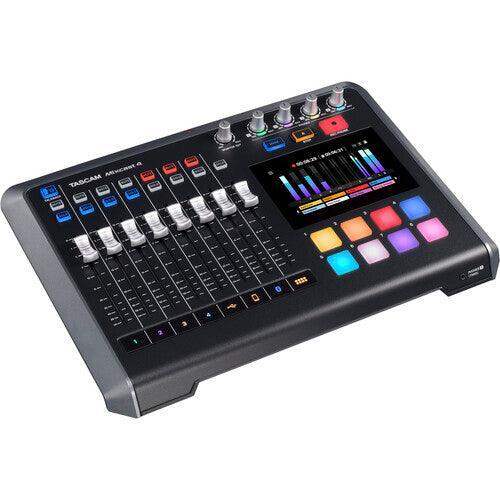

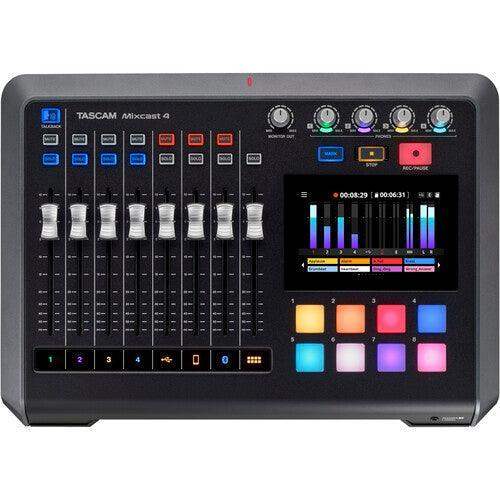

Tascam MIXCAST 4 Podcast Mixer, Recorder, and USB Audio
Record a podcast with up to four people with the TASCAM Mixcast 4, a tabletop mixer and recorder with sound effects, independent headphone outputs, and mix-minus functionality, for live or streamed guests and more. With the Mixcast 4, you'll have everything you need to record a high-quality multicast podcast straight to an SD card or straight to a stereo USB feed, for instantaneous streaming over your favorite platform.
You'll enjoy the form factor of eight faders at your fingertips, as well as the eight sound-effect pads, and the built-in 5" touchscreen for deeper control. You'll be able to record up to 14 tracks at a time straight to an SD card, or record stereo over USB straight to your DAW, or streaming platform. In addition to TASCAM's Podcast Editor Software, the Mixcast 4 ships with an included AC adapter and a USB Type-C cable.
Features
- Podcast Recorder and Mixer in One Box
- 4 Combo XLR-1/4" Mic/Line Inputs
- 8 Faders to Control Audio Levels
- Onboard and USB Multitrack Recording
- Mix-Minus for Phone Call Interviews
- Bluetooth
- 4 Headphone Outputs for Host and Guests
- 8 Pads and 8 Banks for Instant Sound FX
- USB Interface for Streaming
- Includes Software, USB Cable & Adapter
Specifications
TASCAM Mixcast 4 Specs
| Form Factor | Desktop |
| Display | 5" Color Touchscreen |
| Channels of I/O | USB: 14 Inputs / 2 Outputs |
| Built-In DSP | Yes |
| Maximum Sampling Rate | 48 kHz / 24-Bit |
| Number of Microphone Preamps | 4 Preamps |
| Built-In Microphone | None |
| Input Level Adjustment | 4 x via Touchscreen |
| Expansion Slots | None |
| Pad | None |
| Gain/Trim Range | Mic Inputs: 66.5 dB |
| High-Pass Filter | None |
| Solo/Mute | Solo, Mute per Input Channel |
| Analog Audio I/O | 4 x Combo XLR-1/4" TRS Balanced Mic Input 2 x 1/4" TRS Balanced Line Input 1 x 1/8" / 3.5 mm TRRS Unbalanced Line/Smartphone Input 1 x 1/8" / 3.5 mm TRRS Unbalanced Headphone Output 4 x 1/4" TRS Unbalanced Headphone Output 2 x 1/4" TRS Balanced Monitor Output 1 x 1/8" / 3.5 mm TRS Unbalanced Line Output |
| Phantom Power | 48 V (Selectable on Individual Inputs) |
| Digital Audio I/O | None |
| Host Connection / USB | 1 x USB-C (Class-Compliant) |
| Host Connection Protocol | USB 2.0 |
| USB (Non-Host) | None |
| Sync I/O | None |
| Network I/O | None |
| MIDI I/O | None |
| Wireless Connectivity | Bluetooth (Audio Streaming) |
| Frequency Response | Mic Inputs: 20 Hz to 20 kHz ±0.3 dB (JEITA) |
| Maximum Input Level | Mic Inputs: +10 dBu (Min Gain) 1/4" Line Inputs: +24 dBu 1/8" / 3.5 mm Line Inputs: +8 dBV |
| Maximum Output Level | 1/4" Monitor Outputs: +20 dBu 1/8" / 3.5 mm Line Outputs: +6 dBV |
| Headphone Output Power | 1/4": 45 mW per Channel into 32 Ohms (0.1% THD) |
| Impedance | Mic Inputs: 2.1 Kilohms 1/4" Line Inputs: 11 Kilohms 1/8" / 3.5 mm Line Inputs: 12 Kilohms 1/8" / 3.5 mm Headphone Inputs: 2 Kilohms 1/4" Monitor Outputs: 200 Ohms 1/8" / 3.5 mm Line Outputs: 200 Ohms |
| SNR | Mic Inputs: 101 dB (A-Weighted) |
| THD | Mic Inputs: 0.003% (A-Weighted) |
| Crosstalk | ≥ 95 dB |
| EIN | Mic Inputs: ≤ -125 dBu (150-Ohm Source, Max Gain) |
| Sample Rates | 48 kHz |
| Sample Rate Conversion | None |
| Bit Depths | 24-Bit |
| Sync Sources | None |
| Memory Card Slot | 1 x SDXC |
| OS Compatibility | Android 10 or Later iOS 13 or Later iPadOS 13 or Later macOS 10.15 macOS 11 macOS 12 Windows 10 macOS 11 *As of June, 2022: Check with manufacturer for the most up-to-date compatibility |
| Included Software | None |
| Compatible Software (Not Included) | Any Core Audio (Mac) Compliant Software |
| Mobile App Compatible | No *As of January, 2023: Check with manufacturer for the most up-to-date compatibility |
| Required Hardware | Available USB-A Port |
| Internet Connection | Required for Registration |
| Power Requirements | AC/DC Power Adapter (Included) |
| AC/DC Power Adapter | 12 VDC, Center-Positive (Included) |
| Power Consumption | 12.5 W (Maximum) |
| Anti-Theft Features | Kensington Security Slot |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Dimensions | 14.8 x 10.4 x 2.2" / 37.5 x 26.4 x 5.7 cm 14.8 x 10.5 x 2.8" / 37.5 x 26.7 x 7.1 cm (Including Controls and Protrusions) |
| Weight | 5.7 lb / 2.6 kg |
| Package Weight | 7.8 lb |
| Box Dimensions (LxWxH) | 16 x 12 x 5" |
