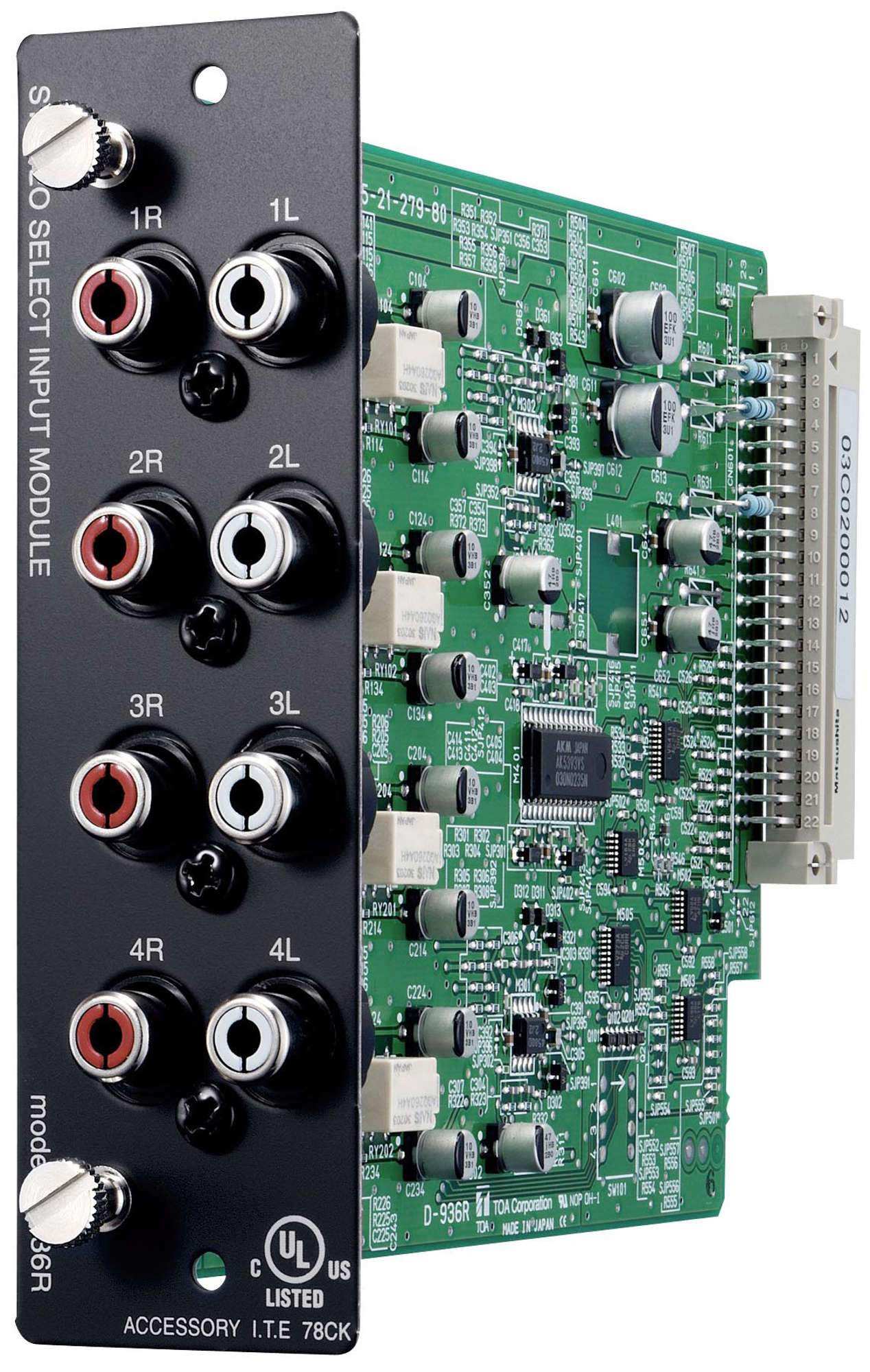

TOA Electronics Stereo Select Input Module - D-936R
The D-936R is a 4 x stereo input module for the TOA D-901 modular digital mixer. It can be used to send a mono or stereo mix of all 4 stereo inputs to the D-901. Stereo / mono mode can be set on the front panel.
It is equipped with standard RCA pin jacks.
The D-936R features two stereo transmission modes:
1) Selection of one of the four stereo inputs for transmission to the D-901.
2) Mixing of all four stereo inputs, transmitting the mixed signal to the D-901 through left/right channel outputs.
Mode settings and stereo selection are performed at the main frame such as the D-901.
Specifications:
- Input: 4 x stereo inputs (selection of 1 stereo or mixing or all 4 stereo inputs) –10dB, 10kΩ
- Connector Type: RCA pin jack
- A / D Converter: 24-bits
- Frequency Response: 20 – 20,000Hz, ± 1dB (+4dB input)
- Sampling Frequency: 48kHz
- Dynamic range: Over 100dB (IHF-A weighted)
- Total Harmonic Distortion: Under 0.05%
- Finish, Panel: Pre-coated steel plate, black, 30% gloss
- Dimensions (W x H x D): 35 x 119.5 x 178.4mm
- Weight: 145g
