Atlona 4K HDR HDBaseT Receiver for Opus Matrix Switchers - AT-OPUS-RX

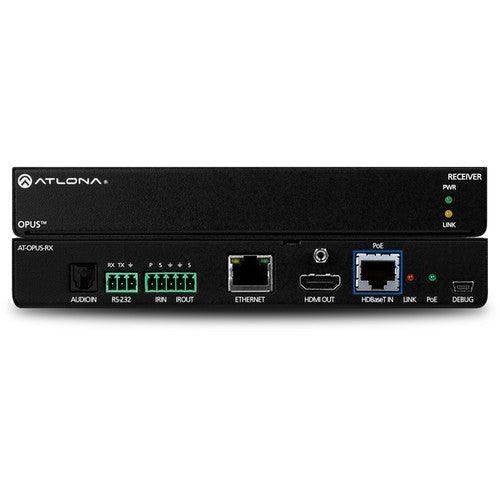

Use the OPUS-RX 4K HDR HDBaseT Receiver from Atlona to convert an incoming HDBaseT signal from an Atlona Opus Matrix Switcher to HDMI and connect it to a display or projector. This receiver offers connections for HDMI video and audio, bidirectional IR control, and RS-232 control, all over a single HDBaseT connection.
HDBaseT is advantageous as it allows for longer cable distances up to 330' than HDMI alone, while carrying other important control signals along a single cable. Up to DCI/UHD 4K HDMI resolutions are supported, as is HDCP 2.2 in order to play protected high-resolution content. It also supports return audio from a display via its TOSLINK connector over HDBaseT. As this receiver accepts downstream power using the HDBaseT connection, no separate power supply is required.
Features
- Receive Video from Opus Matrix Switcher
- Receives up to 4K HDMI Video up to 330'
- Receives Power over HDBaseT from Switch
- RS-232 & Bidirectional IR Control
- HDCP 2.2 Compliant, 18 GB/s Bandwidth
- Supports HDBaseT Audio Return Path
Specs
| General Information | |
| Manufacturer | Atlona Technologies |
| Manufacturer Part Number | AT-OPUS-RX |
| Manufacturer Website Address | http://www.atlona.com |
| Brand Name | Atlona |
| Product Model | OPUS-RX |
| Product Name | 4K HDR HDMI Over 100 M HDBaseT RX for Opus Series Matrix Switchers |
| Product Type | Video Extender Receiver |
| Technical Information | |
| Connectivity Technology | Wired |
| Number of Output Devices Supported | 1 |
| Maximum Operating Distance | 328.08 ft |
| Video | |
| Graphics Modes | 4K |
| Maximum Video Resolution | 4096 x 2160 |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| HDMI Out | Yes |
| USB | Yes |
| Serial Port | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Number of USB Ports | 1 |
| Number of HDMI Outputs | 1 |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Twisted Pair Cable Standard | Category 7 |
| Physical Characteristics | |
| Receiver Height | 1.02" |
| Receiver Width | 6.86" |
| Receiver Depth | 3.51" |
| Form Factor | Rack-mountable |
| Surface-mountable | |
| Receiver Weight (Approximate) | 15.84 oz |
| Miscellaneous | |
| Package Contents | 4K HDR HDMI Over 100 M HDBaseT RX for Opus Series Matrix Switchers Installation Guide Surface Mounting Hardware IR Emitter |
| Warranty | |
| Limited Warranty | 10 Year |
