Atlona 2 Channel 4 Ohm/8 Ohm/70V/100V 60W per channel Amplifier - AT-GAIN-120
Atlona 2 Channel 4 Ohm/8 Ohm/70V/100V 60W per channel Amplifier - AT-GAIN-120 is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Atlona 2 Channel 4 Ohm/8 Ohm/70V/100V 60W per channel Amplifier - A...

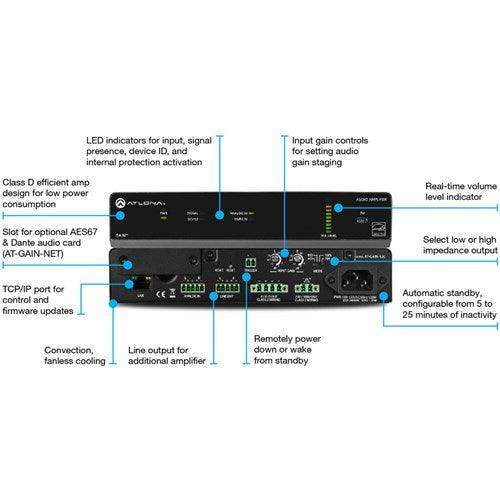

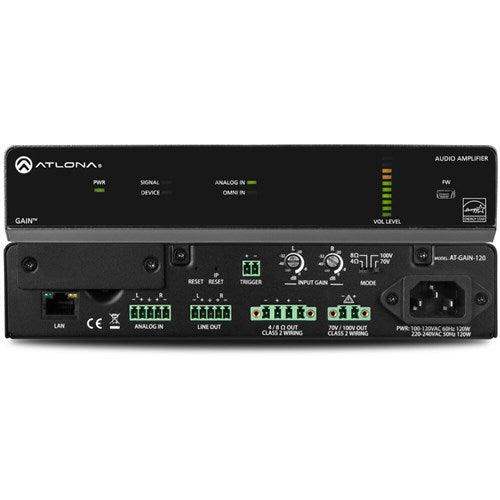

The Atlona Gain™ 120 (AT-GAIN-120) is a compact power amplifier designed for low or high impedance applications. A mode selector switch allows the Gain 120 to deliver two channels of 60 watts each into 4 or 8 ohms, or a single channel of 120 watts at 70 or 100 volts. This Class D amplifier is energy efficient and ENERGY STAR qualified, and is also convection cooled to allow installation in conference rooms and quiet installation environments without the need for fans. In addition to the amplified speaker output, a line level audio output allows the incoming audio to be fed into an additional amplifier or audio system. The Gain 120 is controllable via TCP/IP or external trigger, and can be integrated with Atlona AV switchers and OmniStream™ AV systems for a wide variety of sound reinforcement applications.
Features
- Selectable low or high impedance operation
- Automatic standby
- Rear panel input level controls
- Balanced line level output for pass-through to an additional amplifier or audio system
- Integrated five-band equalizer
- TCP/IP control of volume level, muting, and EQ
Specs
| General Information | |
| Manufacturer | Atlona Technologies |
| Manufacturer Part Number | AT-GAIN-120 |
| Manufacturer Website Address | http://www.atlona.com |
| Brand Name | Atlona |
| Product Line | Gain |
| Product Model | AT-GAIN-120 |
| Product Name | Gain-120: Stereo / Mono Power Amplifier - 120 Watts |
| Product Type | Amplifier |
| Technical Information | |
| Minimum Frequency Response | 20 Hz |
| Maximum Frequency Response | 20 kHz |
| Impedance | 4 Ohm |
| Classification | D |
| Audio | |
| Audio Channels | 2 |
| RMS Output Power | 120 W |
| Network & Communication | |
| Ethernet | Yes |
| Interfaces/Ports | |
| USB | Yes |
| Power Description | |
| Operating Power Consumption | 120 W |
| Miscellaneous | |
| Package Contents | Gain-120: Stereo / Mono Power Amplifier - 120 Watts Installation guide Power cable Captive screw connectors |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
| WEEE | |
| Warranty | |
| Limited Warranty | 10 Year |
