QSC Dante™ Networked Audio Wall Plate w/ Bluetooth (Attero Tech) - unD6IO-BT

Description

Spec Sheet

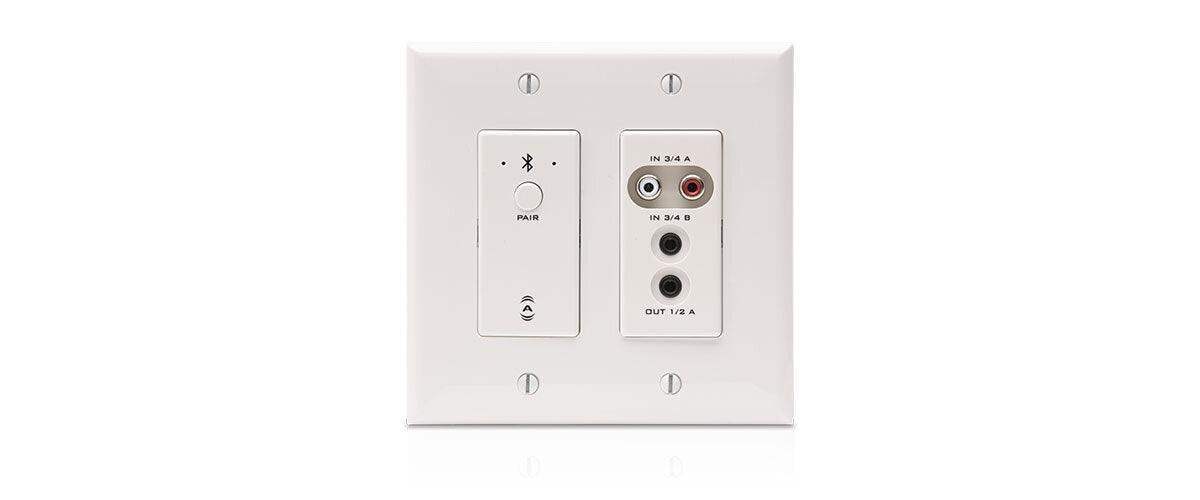

The Attero Tech by QSC unD6IO-BT Dante/AES67 audio interface with Bluetooth® is a cost-effective, multi-IO wall plate. The unD6IO-BT features stereo Bluetooth wireless audio input connectivity along with (2) RCA line level inputs and a 3.5 mm TRS line level input. A 3.5 mm TRS line level output on the front is also included. The unD6IO-BT is designed to fit into most dual-gang US junction boxes and is PoE enabled, so all connectivity (power, control and audio data) is provided by a single CAT-5e/6 cable. The wall plate’s unique mix of consumer-style wired and wireless connectivity allows easy connection to a wide variety of user devices on a Dante or AES67 network, eliminating the possibility of ground loop issues or other audio problems commonly found in consumer devices.

Features

• Fully DDM Ready

• • Simple pairing one button pairing/connect process for
  • standalone operation with LED indication of connection status
  • Defeatable pairing button for restricted use applications with
  • 3rd party control systems
  • Customizable Bluetooth® friendly name in applications with co-located unD6IO-BTs
  • Compatible with most smartphones, Apple iPads, and Android tablets
  • Two RCA and one 3.5mm stereo input
  • One 3.5mm stereo output on the front. All outputs feature software controlled volume
  • 802.3af compliant PoE powered to work with any compliant
  • PoE network switch
  • RCA inputs and 3.5mm input (carried as stereo) can be selected via software, individually or in combination, as an audio flow (see Audio Flow diagram)
  • Bluetooth™ audio is carried as stereo onto the Dante network




Specifications

• • Bluetooth® Profile: A2DP - Stereo audio is streamed from a Bluetooth® device and onto the Dante network
  • Bluetooth® Range: 10 meters (30ft) minimum
  • RCA and 3.5mm Inputs: RF filtered line level, input source software selectable
  • Maximum Input Levels (3.5mm/RCA): +12dBu
  • Output Volume Range: 0dB to -60dB in 1dB steps, software selectable
  • Output Noise:
  • 3.5mm Output: RF filtered line level
  • Maximum Output Level(3.5mm): +12dBu
