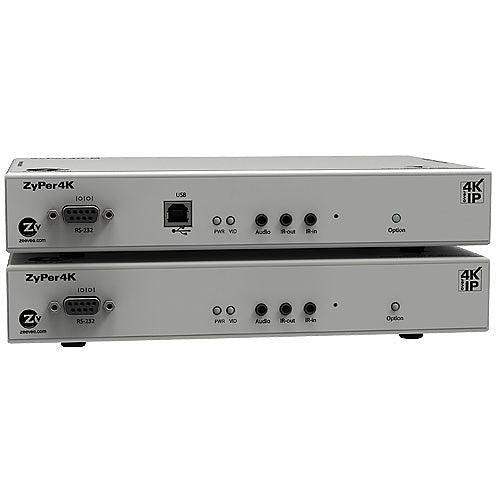

ZeeVee Z4KSDIENCC3 ZyPer4K Extended HDMI 2.0 & SDI Copper Encoder

ZeeVeeSKU: Z4KSDIENCC3
No reviews

Price:
Sale price$2,929.12

Description

ZyPer4K Extended Module, HDMI 2.0 and SDI input Encoder, with IP streaming via 10Gbit/copper. Supports analog audio, IR, RS-232. No USB. Includes power supply. Requires ZyPer4K Decoder. Cables not included; Product Family: IP; Product Type: Encoder; Warranty: 3 Years; Tariff Code: 8525501000; Modulation: IP; Maximum Resolution: 4K uncompressed; Input/Output Type: HDMI 2.0/HDSDI; Average Data Rate: 9 Gbps; Channel Count: 1

Unparalleled Quality and Performance

When picture quality and latency matter, there is no alternative to the ZyPer4K encoder and decoder product line. Delivering uncompressed 4K at virtually zero latency, the ZyPer4K is the first SDVoE solution on the market - enabling the distribution of content to an unlimited number of displays over a 10Gb Ethernet switch. Using industry standard CAT 6a cables, or fiber, you can send audio and video from HDMI, SDI, Analog and DisplayPort source up to 100 meters - and using the USB port, control keyboards, mice, and cameras directly over your network. ZyPer4K also has a 1Gb direct network connection, ideal connecting other IP devices - without extra cabling. By using standard networking cables and switches, a ZyPer4K solution can save up to 40% compared to the cost of conventional, proprietary AV switches - without sacrificing image quality, resolution and latency.

Uncompressed 4K

ZyPer4K delivers perfect pixel for pixel reproduction of uncompressed 720p, 1080p HD, Ultra HD, and 4K resolution content directly over a standard 10Gb Ethernet network using standard CAT 6a cables. ZyPer4K eliminates the need to have a separate AV network or proprietary matrix switcher for video and other AV content.

Change sources and content instantly

ZyPer4K IP based architecture enables you to instantly switch from one source to another without any loss of frames - even at 4K resolutions. Using the power of a 10Gb network switch, the ZyPer4K enables you to instantly switch sources in critical situations such as a surgical environment as well as the use of a remote keyboard, mouse, or touchscreen interface.

USB 2.0 and KVM Control

ZyPer4K with USB support enables remote access to keyboards, mice and other devices (KVM) that offer flexibility in securing or accessing equipment such as digital media players that may be stored in remote locations. Using the ethernet network, using and controlling your USB devices remotely is just as easy as on your own desk.

1Gb network port to every source and display

Each ZyPer4K encoder and decoder unit has a 1Gb network port you can use for any IP network device including digital signage media players, IP Cameras, Video/Audio conferencing equipment and even WiFi network equipment.

Easy to Manage and Control

ZyPer4K can manage infrared, RS-232, and IP control codes over the network using either the ZyPer Management Platform or from virtually any third party controller, including those from AMX, Crestron, and Extron.

Easily Create Video Walls

ZyPer4K uses sophisticated scaling algorithms combined with Ethernet switching to effortlessly create and manage video walls up to 9x9 (81 screens) using the ZyPer4K Management Platform - without any additional hardware.

  • Uncompressed zero latency UltraHD (4K/60) video, audio, and control
  • Lossless transport of 7.1 audio signals including all encoded formats and uncompressed linear PCM.
  • 1GbE utility network port on all encoders and decoders
  • Source and display control (Infrared and RS232)
  • HDMI 2.0 (full 4K 4:4:4 60Hz support)
  • HDCP 2.2 compliant
  • Supports HDR10, HDR10+, USB HID and 10Gb PoE
  • Aluminum chassis with rubberized rim (XS and XR units)
  • Fan-less thermal management (XS and XR units)
  • ZMP (ZyPer Management Platform) with software
General Information
Manufacturer ZeeVee, Inc
Manufacturer Part Number Z4KSDIENCC3
Manufacturer Website Address http://www.zeevee.com
Brand Name ZeeVee
Product Line ZyPer4K
Product Model Z4KSDIENCC3
Product Name ZyPer4K Extended HDMI 2.0 & SDI Copper Encoder
Product Type Video Encoder
Technical Information
Functions Video Encoding
  Video Streaming
Maximum Resolution 4096 x 2160
Screen Mode Supported 4K
Interfaces/Ports
USB No
HDMI Yes
Audio Line In Yes
Audio Line Out Yes
SDI Yes
Network (RJ-45) Yes
Physical Characteristics
Length 6.9"
Miscellaneous
Package Contents
  • ZyPer4K Extended HDMI 2.0 & SDI Copper Encoder
  • Power Supply
Country of Origin United States
TAA Compliant Yes
Warranty
Limited Warranty 3 Year
