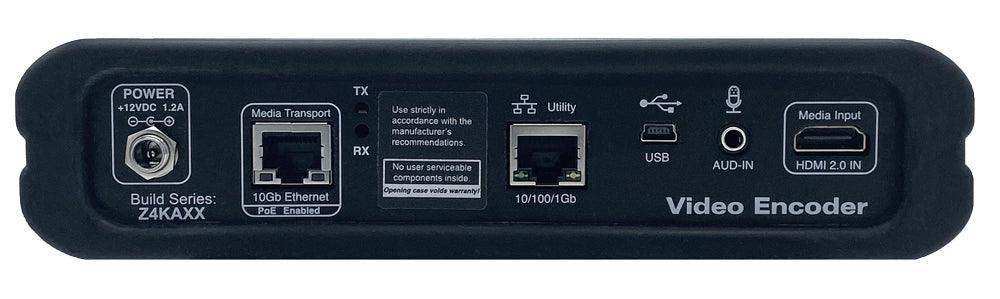

ZeeVee Z4KENCC3XS ZyPer4K-XS Uncompressed 4K Copper Encoder

Product Overview

The ZeeVee Z4KENCC3XS ZyPer4K-XS is a 10Gbps copper AV-over-IP encoder that captures uncompressed 4K/60 4:4:4 HDMI video and transmits it over standard Cat6a cabling to any ZyPer4K-compatible decoder on the network. It is designed for commercial AV integrators building SDVoE-based uncompressed 4K video distribution systems in offices, conference centers, higher education facilities, and other structured cabling environments. Zero-frame latency and full 4:4:4 color fidelity are maintained throughout, making it appropriate for applications where image quality and signal integrity cannot be compromised by compression. Managed centrally through ZeeVee's ZyPer Management Platform, the Z4KENCC3XS integrates into enterprise IP networks without proprietary switching infrastructure.

Product Description

The Z4KENCC3XS accepts HDMI 2.0 from any 4K source device and encapsulates the uncompressed video and audio stream for transmission over a 10Gbps copper network. Cat6a runs up to 100 meters allow source devices to connect directly to floor-level network switches using the same structured cabling infrastructure deployed for data. HDCP 2.2 is supported end-to-end, ensuring compliance for protected content sources. Up to 8 channels of LPCM digital audio are embedded from the HDMI input, while a 3.5mm unbalanced stereo input provides analog audio injection at the source — useful for conference rooms where analog microphone or line inputs need to accompany the video signal. USB 2.0 extension is supported between ZyPer4K-XS and ZyPer4K-XR endpoints for KVM-style peripheral sharing in collaboration rooms. The encoder is managed through ZMP alongside other ZyPer4K endpoints, enabling flexible routing, real-time monitoring, and centralized configuration. At approximately 9W, the XS form factor allows for high-density encoder deployments without significant power infrastructure requirements.

Key Features

• Uncompressed 4K/60 4:4:4 Encoding — Transmits full-bandwidth 4K video at zero-frame latency with no compression over a 10Gbps copper network.
• 10Gbps Copper (Cat6a) Interface — Uses standard Cat6a cabling up to 100 meters, integrating directly with structured cabling infrastructure.
• HDMI 2.0 Input with HDCP 2.2 — Accepts 4K sources with full HDCP pass-through for protected content compliance.
• Up to 8-Channel LPCM Audio Embedding — Embeds multi-channel digital audio from HDMI input for full AV signal transport over IP.
• Analog Audio Input (3.5mm) — Injects unbalanced stereo audio at the source for analog audio integration in conference and collaboration rooms.
• USB 2.0 Extension — Peripheral and KVM sharing between ZyPer4K-XS and XR endpoints over the IP network.
• AES-128 Encryption & 802.1X Authentication — Enterprise-grade security for AV streams on shared network infrastructure.
• ZyPer Management Platform Integration — Centralized routing, monitoring, and configuration alongside all ZyPer4K family endpoints.
• ZyPer4K Ecosystem Compatible — Interoperates with full-size ZyPer4K decoders for mixed and phased deployment scenarios.
• No Proprietary Switch Required — Operates on any managed 10Gbps IP switch, preserving existing network infrastructure investment.
• Low Power (~9W) — Efficient profile supports dense encoder deployments in rack or distributed configurations.
• 3-Year Warranty — Commercial warranty from ZeeVee.

Typical Applications

• Conference room and boardroom AV source encoding
• Digital signage content distribution over structured copper cabling
• Higher education classroom and lecture hall source encoding
• Command center and NOC source input nodes
• Corporate campus AV-over-IP distribution systems
• Hospitality and hotel AV headend encoding
• Retail and lobby digital signage source encoding

Technical Specifications

Competitor Comparison

Frequently Asked Questions

What cabling does the Z4KENCC3XS require?

The Z4KENCC3XS uses standard Cat6a cabling rated for 10Gbps. Runs up to 100 meters are supported to the nearest 10Gbps switch.

Does this encoder require a proprietary switch?

No. Any standard managed 10Gbps Ethernet switch with IGMP snooping and multicast support works with the Z4KENCC3XS.

Is this encoder compatible with full-size ZyPer4K decoders?

Yes. The Z4KENCC3XS is fully compatible with full-size ZyPer4K decoders on a shared ZMP-managed network.

Can I mix copper and fiber ZyPer4K-XS endpoints on the same system?

Yes. Copper and fiber ZyPer4K-XS endpoints can coexist on the same ZMP-managed IP network, allowing flexible infrastructure choices per location.

Is USB extension supported?

USB 2.0 extension is supported between ZyPer4K-XS and ZyPer4K-XR devices only, not between XS and full-size ZyPer4K units.

What security features does this encoder include?

The Z4KENCC3XS supports AES-128 stream encryption, HDCP 2.2 content protection, and 802.1X network port authentication.

What is the warranty?

ZeeVee provides a 3-year limited warranty on the Z4KENCC3XS covering manufacturing defects.
